Customized Power Wiring Cable Harness Male Female 1 To 3 IP65 LED Power Waterproof Connector 2pin

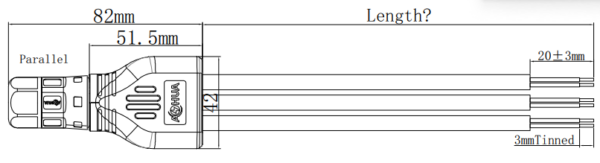

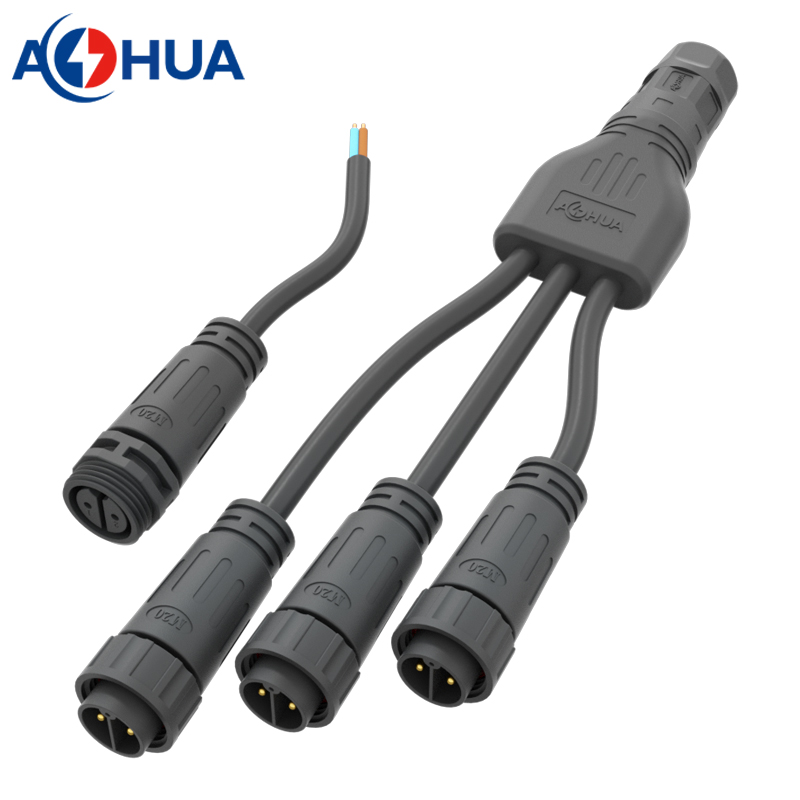

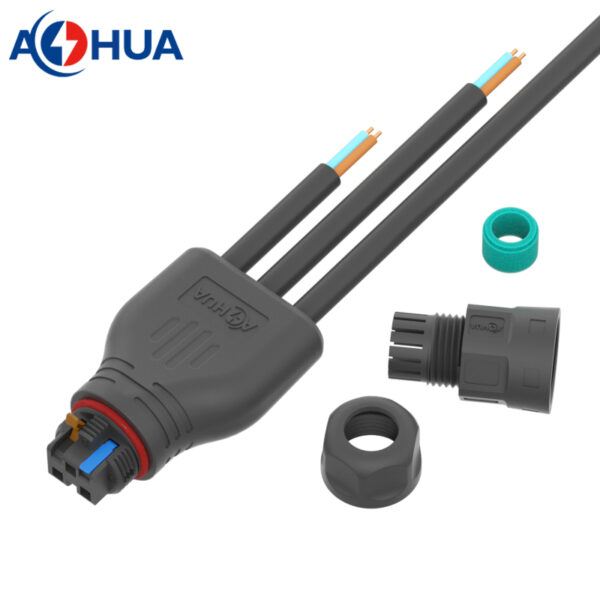

This is YM20 Y type splitter waterproof connector 2pin. The connector terminal of input is push wiring locking type, which is fast wire connecting. The branch cable is molded with cable directly.
- push wire locking type terminal for input wiring operation;
- molding branch cable connect to device;
- branch cable can be molded with connector;
- cable length can be customized as required;
- Parallel or Series connection for connection.
| Contacts | 2pin |
| Connector Type | 1 to 3 splitter |
| Rated Voltage | 300V |
| Rated Current | 10A |
| Wire Gauge | main: ≤1.5mm²
Branch: ≤1.0mm² |
| Cable OD | main : ≤10mm
Branch: ≤8mm |
Customized your own cable solution for special application!
It will be much appreciated if you can send detail request or simple drawing, which is easy for understanding your solution.
Here we want to know:
- connector type, eg: input/branch with cable or not;
- how many cores, 2pin or 3pin?
- working ampere of input/output;
- wire gauge and cable length;
- connection type: Parallel or Series?
- other detail customization.
