Driver Power 3 Pin Male To Female Molded Cable Waterproof Connector 15A Current Rating UL CE Approved
Driver Power 3 Pin Male To Female Molded Cable Waterproof Connector 15A Current Rating UL CE Approved
- 3pin
- Male: AH-M20-1503MMN01112; Female: AH-M20-1503FFN01112
- certificate: UL
- Plastic Material: PA66
- Conductor: gold plated brass
- Cable Material: rubber
- Wire Gauge: 14AWg or 12AWG
- Cable Length: customized as required
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:

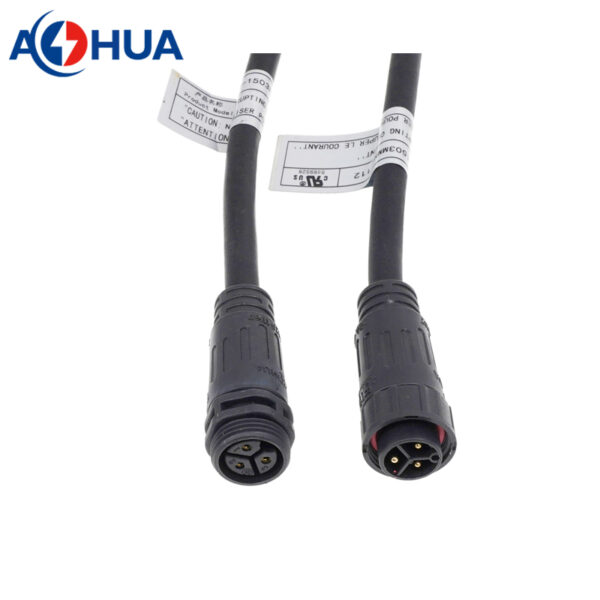

Driver Power 3 Pin Male To Female Molded Cable Waterproof UL Connector 15A Current Rating CE Approved

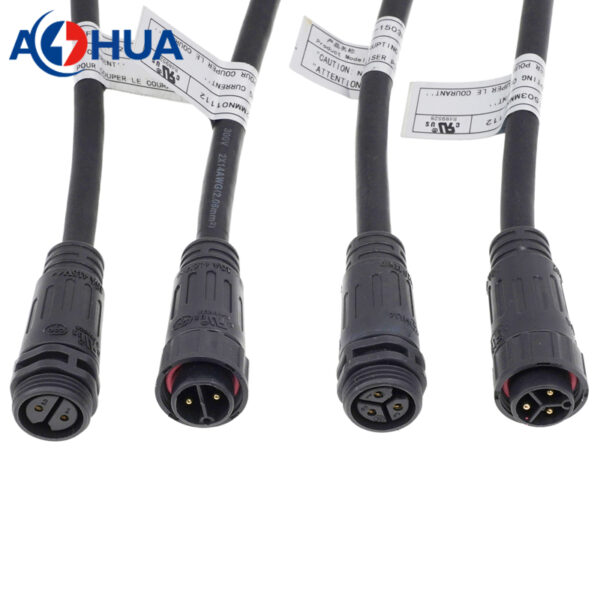

Here is the customized waterproof UL Connector with rated current 15A, which is customized cable length. The standard cable is SJOW rubber in wire gauge 12AWG and 14AWG.

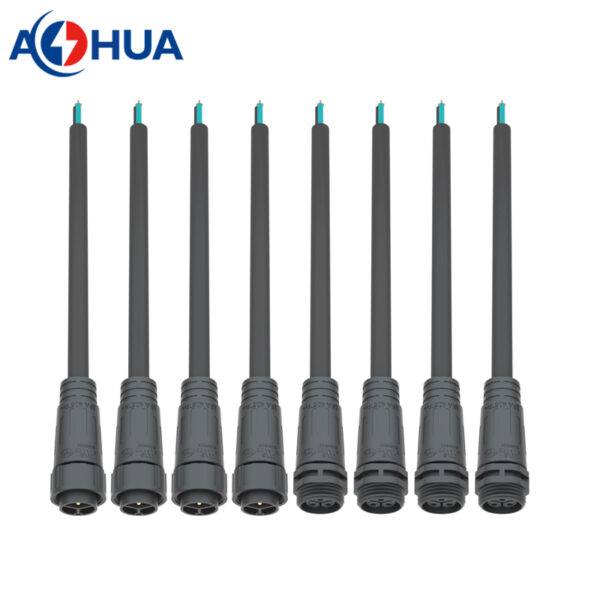

- Model: M20
- Contacts: 3pin
- Plastic Material: PA66
- Conductor: gold plated brass
- Cable Material: rubber
- Rated Voltage: 500V
- Rated Current: 15A

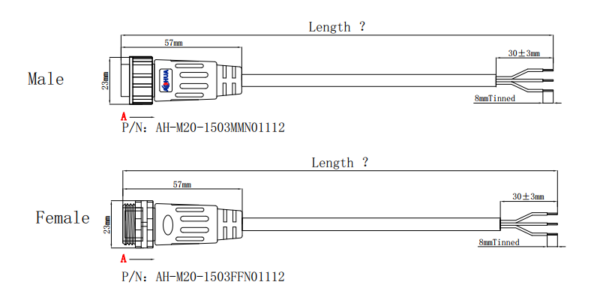

| Male | AH-M20-1503MMN01112 |
| Female | AH-M20-1503FFN01112 |
| Contacts | 3pin |
| Wire Gauge | 12AWG or 14AWG |
| Cable OD | 11.2mm/9.3mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
How to order?
- design your cable solution or send us a simple drawing or sketch about what you want.
- specify the connector type;
- confirm the working ampere, wire gauge, cable length;
- specify the wire tails handing.
- due to the part number between general version and UL version is the same, please specify the certificate you required.
Related Products
 |
 |
Customize connector solution is the core business of AOHUA company. We can design and produce most of low voltage connector solution, includes make new connector, make your LOGO or customize special cable. Meanwhile, we have perfect processes for production and enough machines make your products finish in time.

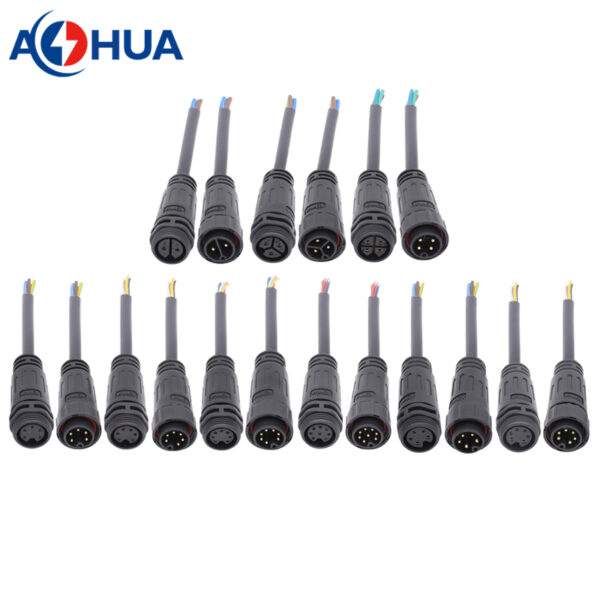

- basic waterproof connectors includes M series and K series male female connector
- customize different type cable connectors solution
