E-bikes Sensor Wiring Harness Male Female 22 24AWG Extension Waterproof IP65 M8 Cable Connectors 3pin

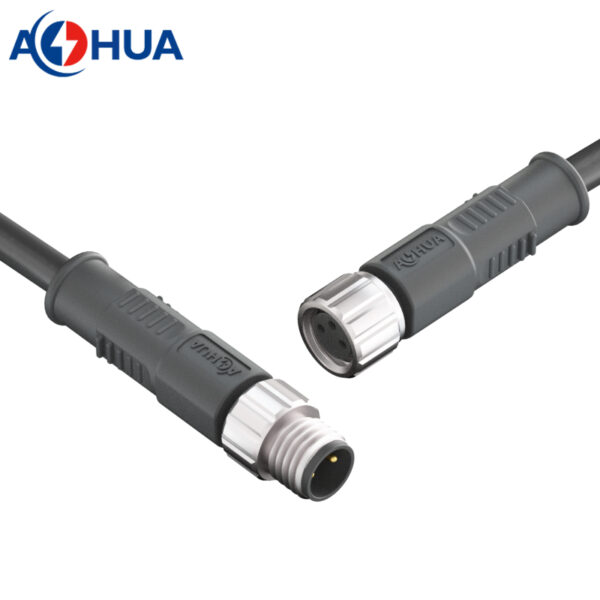

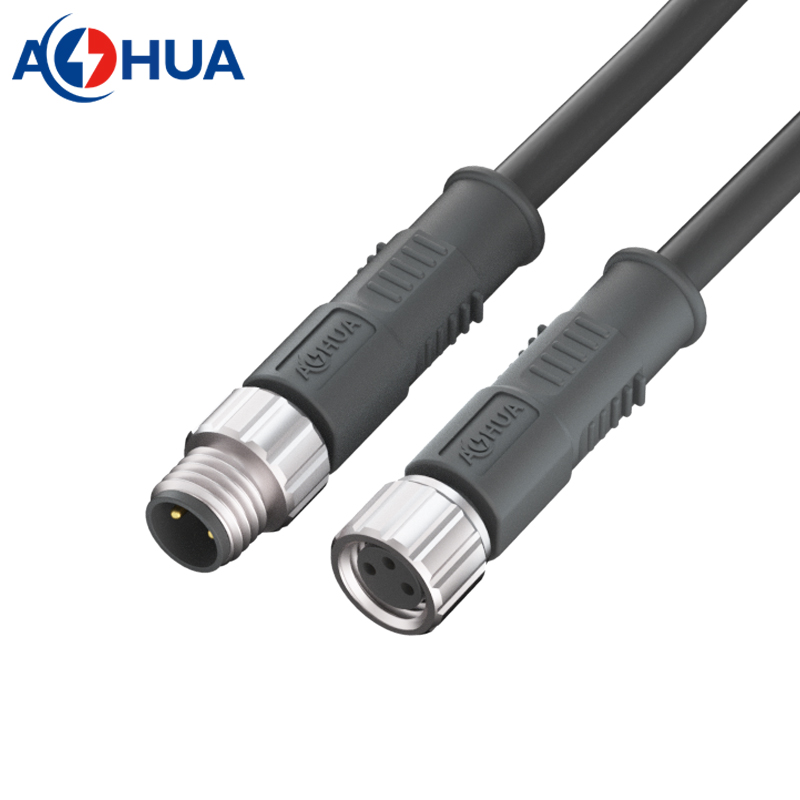

This is metal series inline M8 connector, which is molded with cable directly.

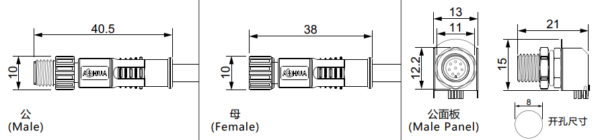

Part Number

1. inline male: AH-M08-0403FMM03113
2. inline female: AH-M08-0403MFM03113

Specification

1. Model: M8 (M08-03)
2. Contacts: 3pin
3. Rated Voltage: 110V
4. Rated Current: 4A
5. Wire Gauge: 20AWG, 22AWG, 24AWG;
6. Cable Length: customized as required.

• Plastic Material: PVC
• Metal Shell: brass alloy
• Cable Material: PVC, TPU, PU or specified.

Customized connector solution types

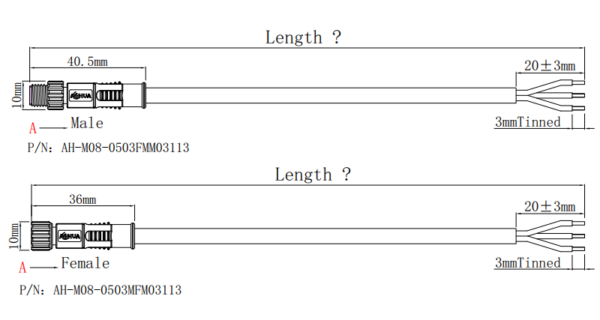

• Male or female connector with open wire end;

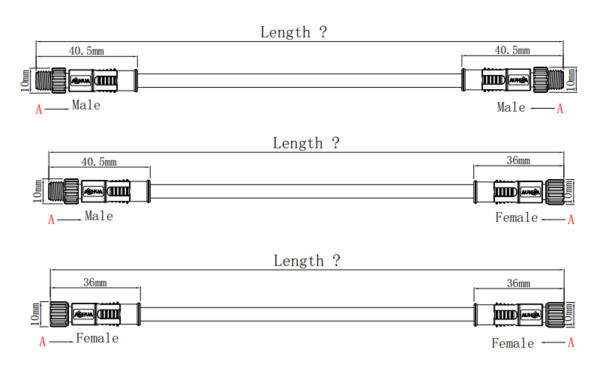

• extension cable with male and female connector on both sides.
• extension cable with female connector on both sides.
• extension cable with male connector on both sides.

How to customize your connector cable solutions?

1. confirm the connector types, specify the specifications, such as extension cable or connector with open wire end, or splitter with connectors?
2. specify the working ampere, wire gauge and cable length, includes the length of stripping and tinning.
3. creating the simple drawing would be easy to understand what you need.

What we can do

1. existing waterproof connectors includes: straight & male to female, assembly & molding, screw threads & fast locking series, you can choose the one you need from it;
2. design different cable harness solutions according to your special request, includes F type splitter, T type distributor, and Y type splitters.
3. do processing for cable harness, includes flat cutting, stripping, soldering, crimping, and terminating.
