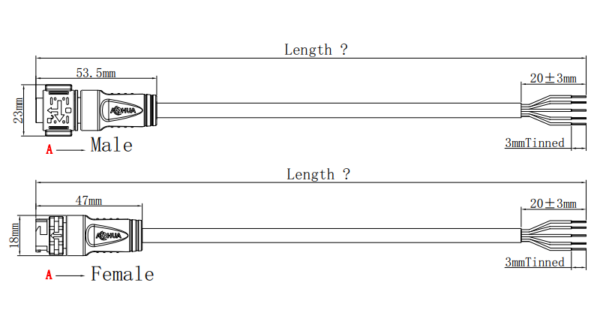

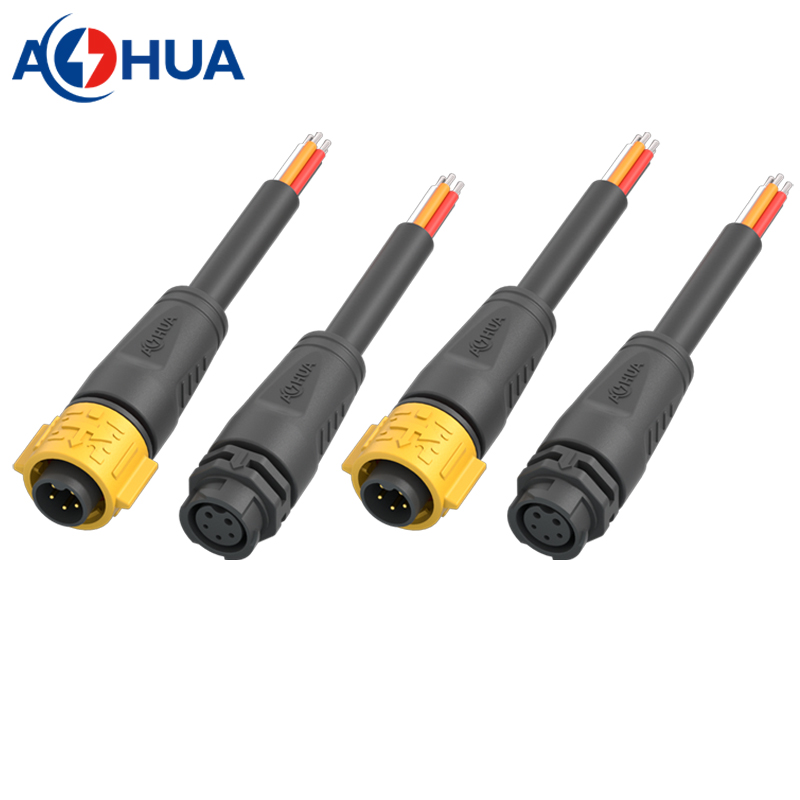

Electrical Control System 2+3pin Multiple Contacts Power Plugs Signal Male Female Molding Battery Waterproof Connector

This is 2+3pin multiple cores waterproof connector mainly used to electrical control system, battery, and so on.

Highlight

1. male to female docking: push-locking
2. waterproof grade: IP68
3. plastic material: PA66
4. conductor material: gold plated brass
5. power and signal cable collection, make your cable more neat and perfect

Specification

1. Contacts: 2+3pin(2 power wires +3 signal wires)
2. Model: K15
3. Rated Voltage: 300V/60V
4. Rated Current: 10A/5A
5. Wire Gauge: ≤1.0mm²/≤0.5mm²
6. Cable OD: 5-10mm
7. Operating Temperature: -40℃~+105℃
8. Mechanical Life: 1000 mating cycles

How to order?

1. confirm the connector type, such as connector with open wire end or extension cable male / female connector;
2. make it clear about  working ampere, wire gauge, cable length and length of stripping and tinning.
3. it should be much appreciated if you can provide a simple drawing of what you need;
4. send all these information to Molly, her team will get back to you within 24hours with CAD drawing and 3D files.

What we can do?

1. electrical wire manufacture;
2. conductor manufacture;
3. mold manufacture;
4. plastic injection;
5. assembly & testing
6. wire harness processing
7. customize what you need;
