Equipment Enclosure K15 Self Locking Screw Type 10A 2pin Power Male Female Assembly Waterproof Panel Mount IP68 Connector

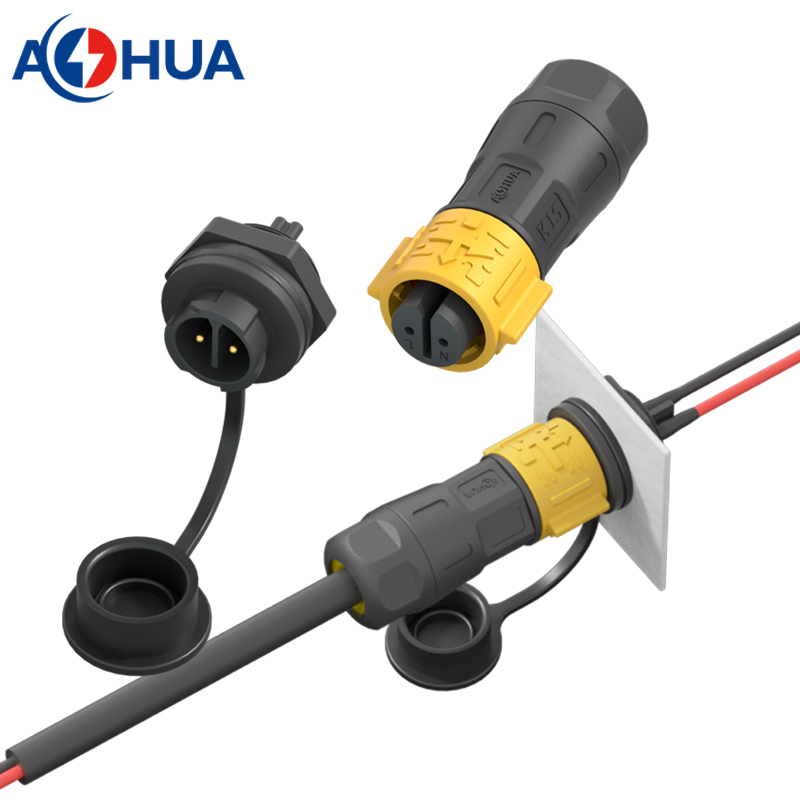

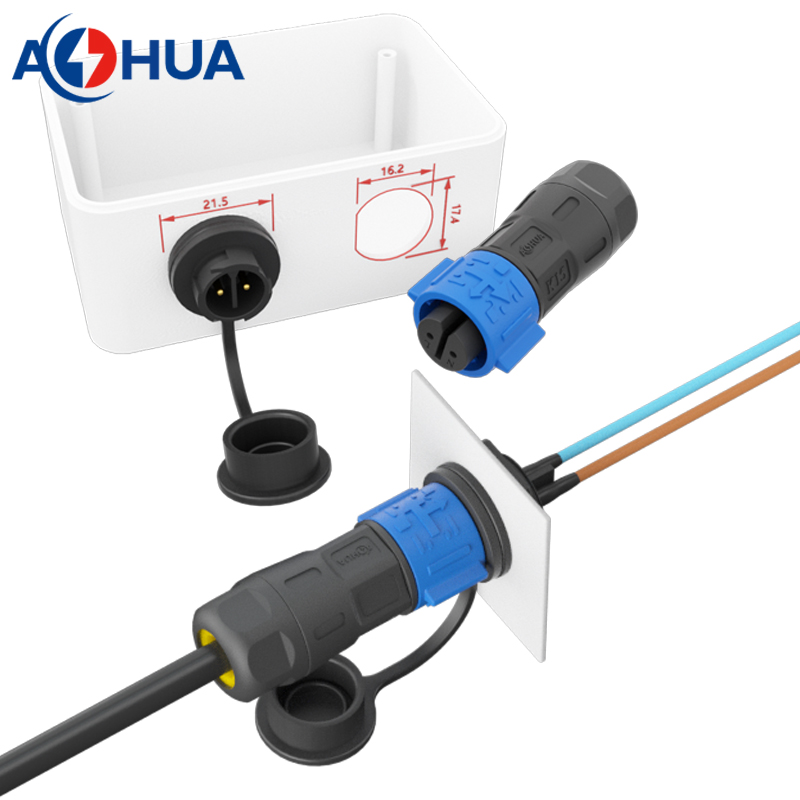

Here let me introduce our 2pin waterproof panel mount IP68 connector. This is panel mount type connector without cable, which is assembly type. The male is rear panel mount and the female is inline type. The terminals for wiring assembly is screw type, which is easy for field wire assembly.

The connector can be processing with wires and cable.

Part Number

1. Male: AH-K15-1002FMR01222
2. Female: AH-K15-1002MFZ01222

Specifications

1. Connector Type: male rear panel mount to female inline assembly type
2. Docking type: self locking
3. Terminal connector type: screw lugs type
4. Plastic material: PA66
5. Conductor: gold plated copper
6. Contacts: 2pin
7. Voltage Rated: 300V
8. Current Rated: 10A
9. Wire Gauge: ≤1.0mm²
10. Cable OD: 5-10mm
11. Operating Temperature: -40℃~+105℃
12. Mechanical Life: 1500 mating cycles
13. Waterproof Grade: IP67 IP68
14. Certificate: CE/ ROHS

How to order this connector?

1. please specify the connector type, such as panel type, male or female panel ;
2. what is the contact pins?
3. what is the working ampere?
4. what is the wire size and cable OD you want to connect?
5. do you want to processing with cable or wire from our factory?

It will be great thanks if you can provide a simple drawing about what you need, which is better for us to understand what you need.
