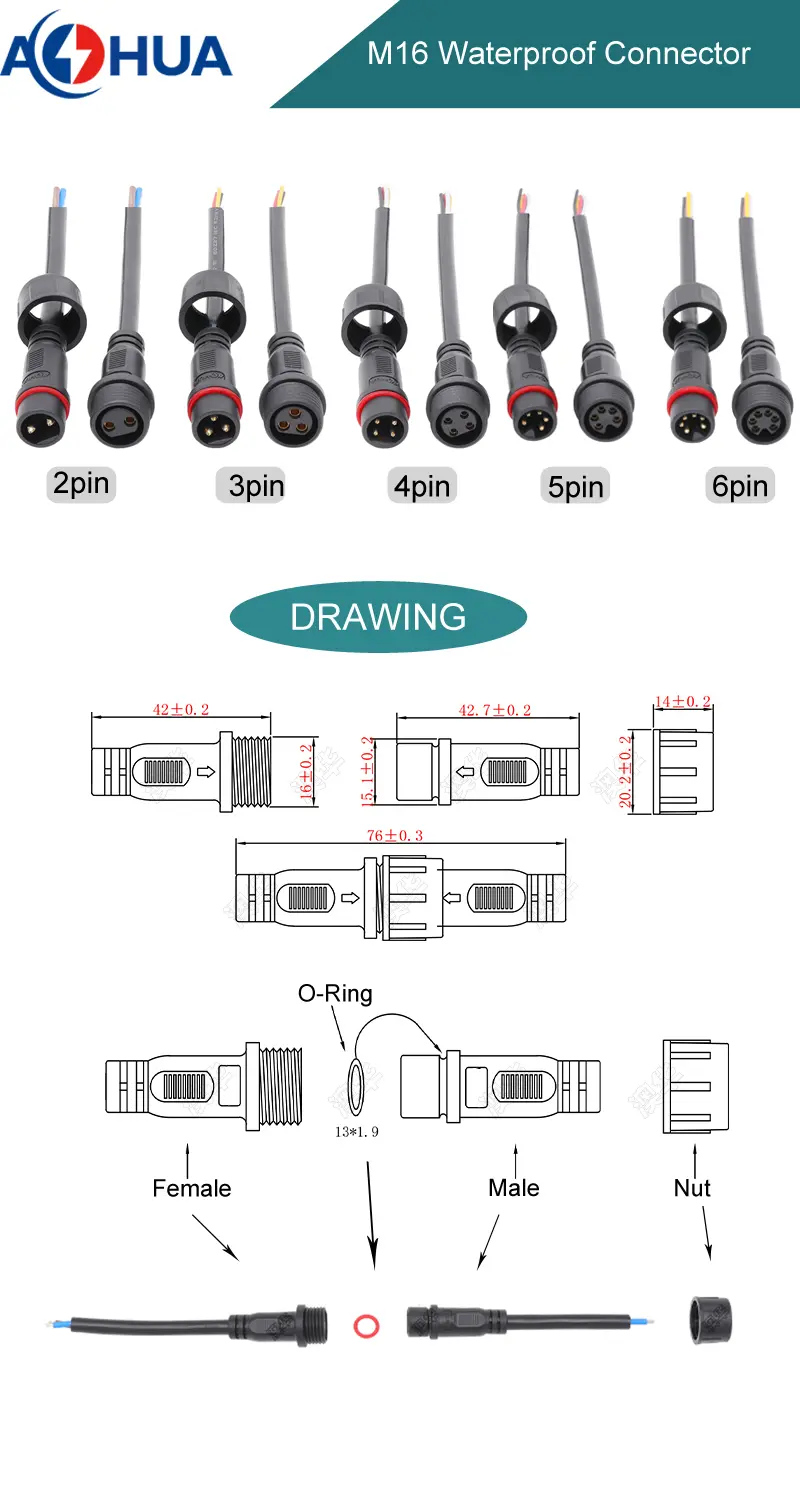

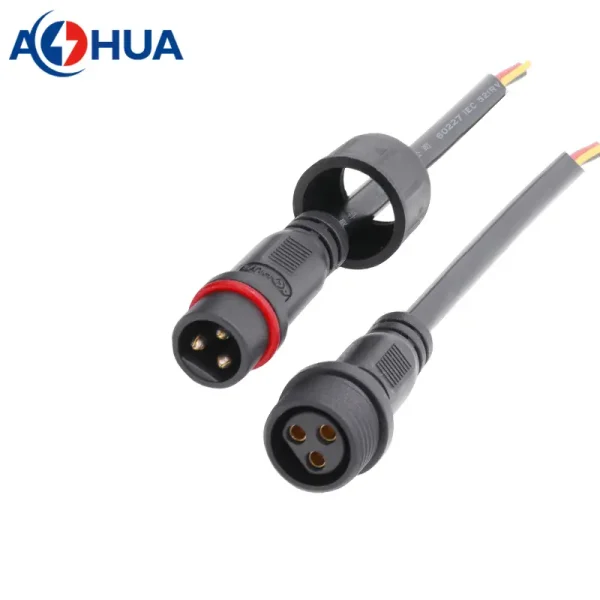

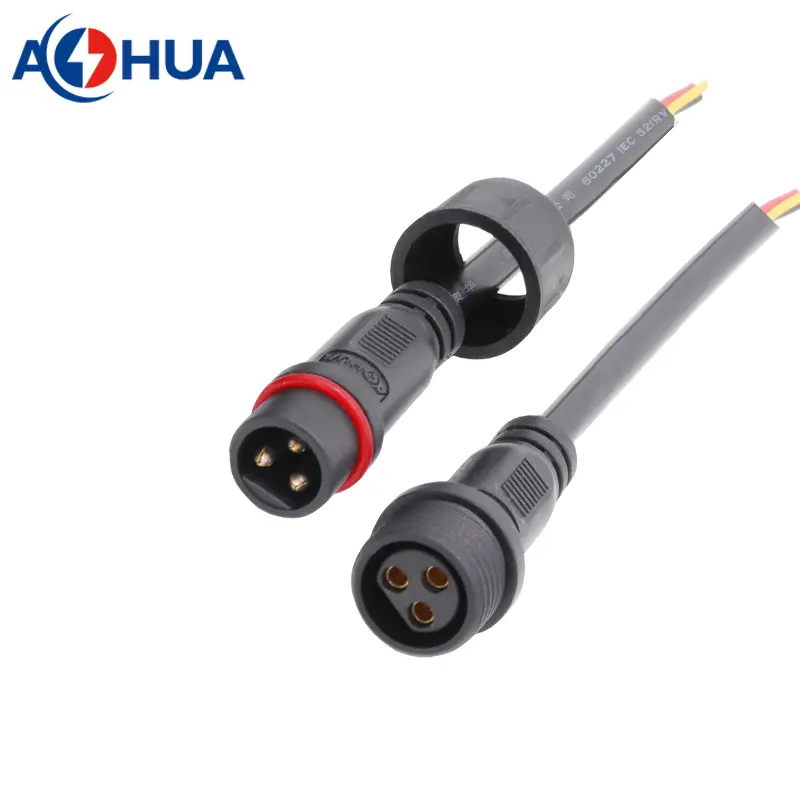

Garden lighting power wire M16 3pin male female cable connector
Garden lighting power wire M16 3pin male female cable connector

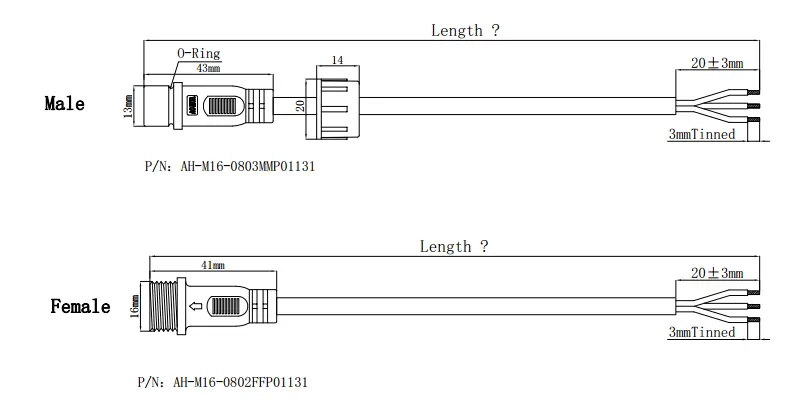

P/N: AH-M16-0603MMP01131/AH-M16-0603FFP01131
Material: PVC
Color: black /white
Cable: PVC
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M16-0602MMP01131/AH-M16-0602FFP01131 | ≤1.0mm² | 250V | 6A |
| 3 | AH-M16-0603MMP01131/AH-M16-0603FFP01131 | ≤1.0mm² | 250V | 6A |
| 4 | AH-M16-0404MMP01131/AH-M16-0404FFP01131 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M16-0205MMP01131/AH-M16-0205FFP01131 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M16-0206MMP01131/AH-M16-0206FFP01131 | ≤0.3mm² | 60V | 2A |
| Cable OD | 4.0mm-7.2mm |
| Mechanical Life | 500mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
