Greenhouse Easy Lighting Installation Systems Power Male Female Waterproof LED Connector 2pin

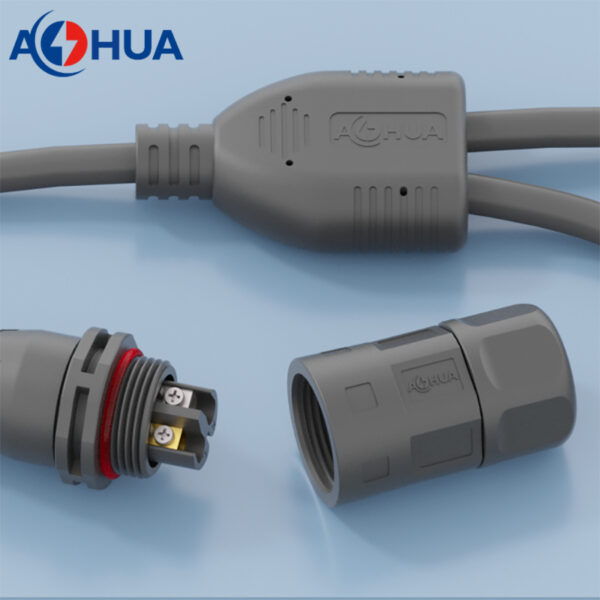

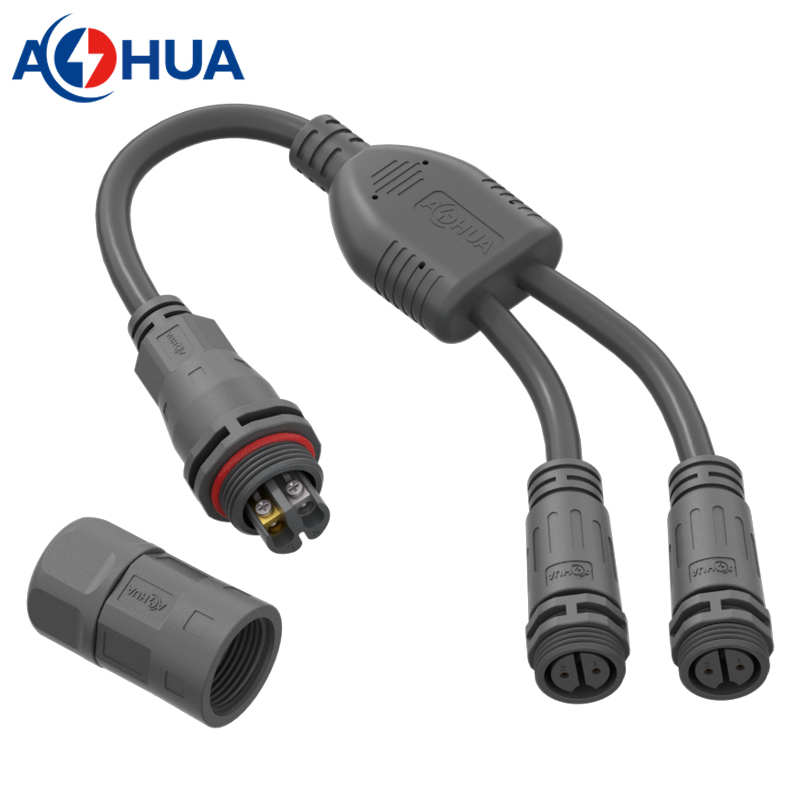

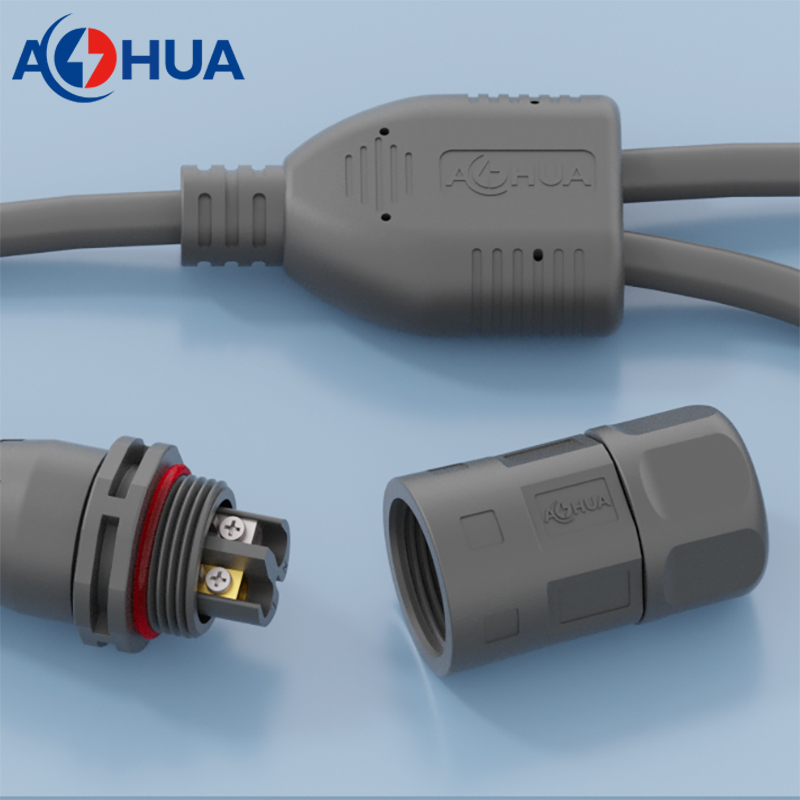

Here introduce the Y shape plug unplug cable harness solution of waterproof led connector. This solution is designed the power connection, which is the screw fixing type input connector and branch male female connector for output.

1. Easy plug play and unplug stop/clean solution.
2. The input screw fixing connector will be easy for field assembly wire installation.
3. The branch cables for two is the power distribution.
4. The branch cable is pre-mold connector for routing or supply for power or connect to led lights.
5. The key advantage is reducing the installation steps and maintenance time, and the same time keep flexible.

Highlights

1. Model: Y shape splitter customized with different type waterproof connectors
2. Plastic Material: PA66
3. Conductor: gold plated brass
4. Connection: PCB soldering
5. Cable Material: rubber or PVC, or specified.
6. Cable Length: customized as required.

Specifications

• Connector: 2pin L type connector, 2pin male female M20 connector
• Contacts: 2pin
• Voltage Rated: 300V
• Current Rated: 15A
• Wire Size: 1.5mm²
• Cable OD: 5-10mm
• Mechanical Life: 3000 mating cicle
• Operating temperature: -40℃~+105℃
• Waterproof Grade: IP67/Ip68

How to order:

AOHUA is good at the customization of cable harness solution:

1. design inner structure: keep running well.
2. reasonable connector set up and keep safe touch.
3. keep the solution easy expansion or easy modification.

So what we can make? We can make your idea coming true. Here please create a simple drawing marking with wire size, cable length or customized details.

We want to know working ampere, wire size, cable long, connection, or connector type.
