Horticulture LED Light 20A Self Locking Screw Fixing Panel Mount Over Mold Waterproof Power Wire Connector

• Ensure absolute reliability and safety in your high-intensity horticulture lighting setup with our 20A Self-Locking Screw Fixing Panel Mount Power Wire Connector. Engineered specifically for the challenging conditions of grow rooms and greenhouses, this K series connector is built to deliver uninterrupted power to your LED arrays, maximizing plant growth and yield.

  The cornerstone of its design is the secure self-locking screw mechanism, which guarantees a vibration-proof and tamper-resistant connection. This prevents accidental disconnection from machinery or environmental factors, ensuring your lighting system remains operational. The robust panel mount design allows for a clean, professional installation directly onto light fixtures or control panels, providing a stable and permanent power interface.

  Safety is paramount. The connector features an advanced over-mold (IP68 rated) waterproof construction, creating an impermeable seal that protects against high humidity, frequent irrigation splash, and corrosive nutrient solutions. This durability safeguards against short circuits and corrosion, significantly enhancing the longevity of your investment.

  Rated for 20 amps, it effortlessly handles the high electrical loads required by modern horticulture LED lights. The solderless, screw-type terminal block ensures quick and easy wiring, saving valuable installation time. Choose this industrial-grade connector for a fail-safe, efficient, and durable power solution that protects your lighting system and supports a thriving grow environment.

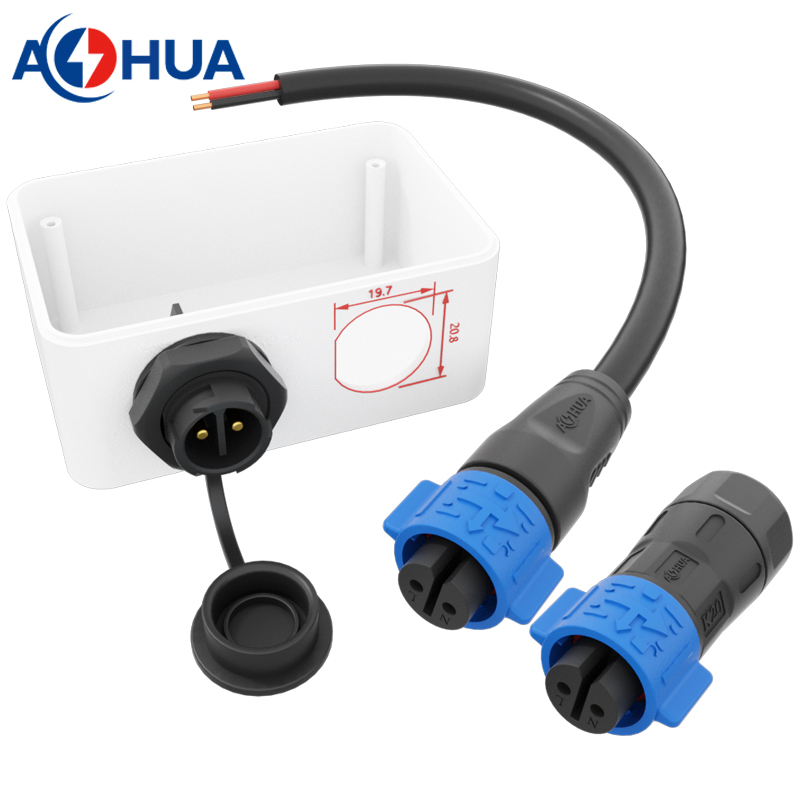

This is K20 2pin connector solution.

1. Male: front panel mount .
2. Female: assembly type or over molding type.
3. Contacts: 2pin
4. Voltage Rated: 300V
5. Current Rated: 20A
6. Wire Size: ≤2.5mm²
7. Cable OD: 5-13mm
8. Mechanical Life: 1500 mating cycles
9. Operating Temperature: -40℃~+105℃
10. Waterproof Grade: IP68
11. Certificate: CE & ROHS

Highlights

• PA66 plastic:

1. Excellent Mechanical Strength and Stiffness (High Tensile and Flexural Strength and Durability)
2. Outstanding Heat Resistance
3. Superior Electrical Insulation Properties
4. Exceptional Flame Retardancy
5. Good Chemical and Solvent Resistance
6. Cost-Effectiveness

• Conductor: gold plated copper

1. Excellent Electrical Conductivity (The Copper Core)
2. Superior Corrosion and Oxidation Resistance (The Gold Shell)
3. Excellent Solderability
4. Low and Stable Contact Resistance
5. Cost-Effectiveness
6. Good Wear Resistance (for certain applications)

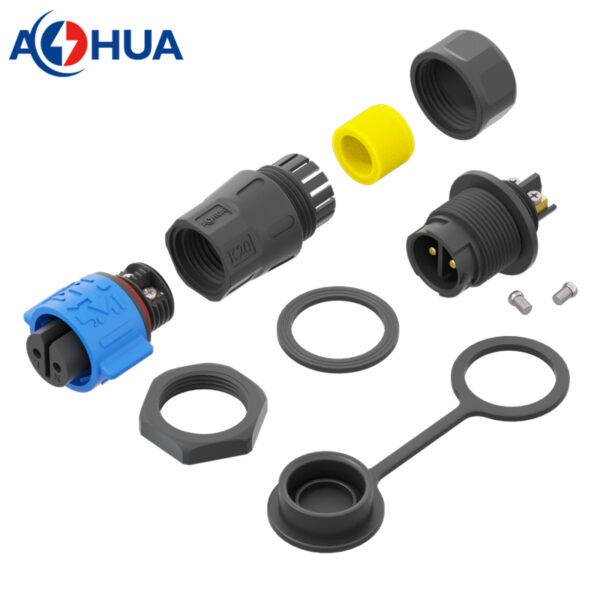

This is assembly type connector, which is assembled with components.

Components: waterproof nut, waterproof seal ring, enclosure, O-ring, coupling nut; hex nut, gasket, dust cap.

The molding connector side is the connector molded with cable directly.

How to make your own cable solution ?

We are the source of manufacturer, we can design the cable solution and manufacture the products. Let us make your dream come true.

Please create a simple drawing marking with power or wire details. Such as we want to know about:

1. please confirm the connector, such as male to female type, panel type or inline type, assembly or molding type;
2. specify the working ampere, wire size, cable length or cable OD;
3. and indicate docking type, connection type;

We have mold team and design, we will send you CAD drawing once you provide details for you to approve.
