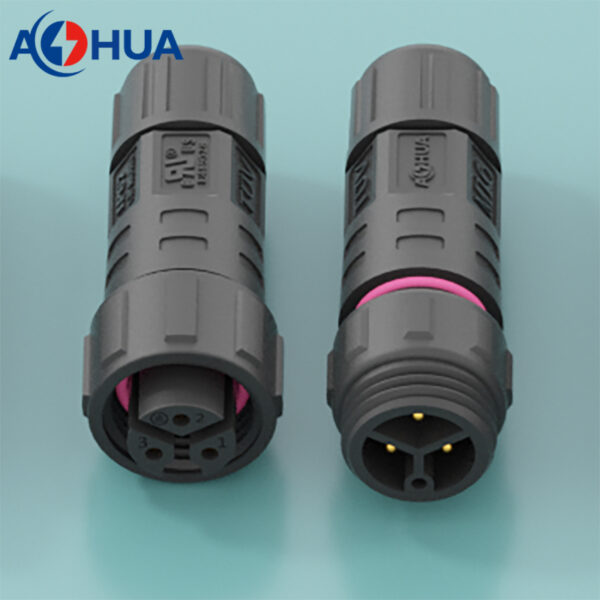

Horticulture LED Light Power Wire Assembly Solder UL Approved 3pin M16 Waterproof Plug Socket Connector

This Horticulture LED Light Power Wire Assembly is a premium, high-reliability connector system designed for the demanding environment of professional indoor cultivation. The core of its robust construction is the 3-pin M16 waterproof plug and socket, which features a secure screw-locking mechanism and an IP68 rating. This ensures a completely dust-tight and waterproof seal, protecting the critical electrical connection from moisture, nutrients, and high humidity commonly found in grow rooms.

Crafted for superior performance and safety, the connector body is made from high-grade PA66 plastic, renowned for its excellent mechanical strength, heat resistance, and durability. The internal contacts are precision-engineered from gold-plated copper, providing extremely low resistance, superior conductivity, and maximum corrosion resistance. This minimizes voltage drop and power loss, ensuring your LED fixtures operate at peak efficiency.

This assembly is UL-approved, guaranteeing it meets rigorous safety standards for electrical components. The gold-plated terminals ensure a stable, long-lasting connection, while the pre-wired solder cups facilitate a secure and reliable installation. This connector is the ideal, professional-grade solution for ensuring safe, efficient, and uninterrupted power delivery to your horticulture lighting systems.

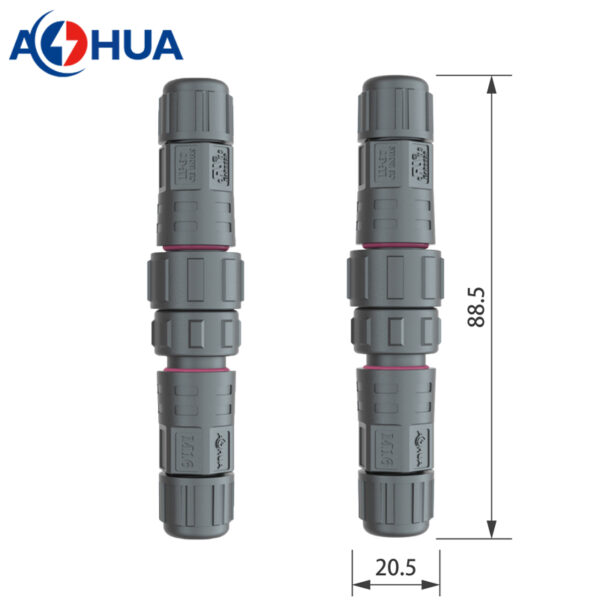

Model: M16

1. connector type: inline assembly type;
2. type: male and female for pluggable;
3. docking type: screw threads;
4. connection type: soldering;
5. plastic material: PA66
6. conductor: gold plated copper;

• Contacts: 3pin
• UL standard: UL2238
• Voltage Rated: 300V
• Current Rated: 10A
• Wire Size: ≤1.0mm²
• CABLE OD: 3-7.5mm
• Mechanical Life: 3000 mating cycles
• Operating Temperature: -40℃~+105℃
• Waterproof Grade: IP67/IP68
• Certificate: UL & CE & ROHS

How to order?

This is assembly type connector, it means that you need to prepare the cable in advance for connection. So we want to know about the power and wire details:

1. confirm the connector type, such as: assembly or molding type, inline type or panel type, solder type or screw fixing type;
2. working ampere, such as 10A or 5A;
3. wire size, such as: 18AWG or 20AWG;
4. cable OD, such as cable jacket outer diameter is 5mm or 3.5mm;

Other requests should be specified before order.
