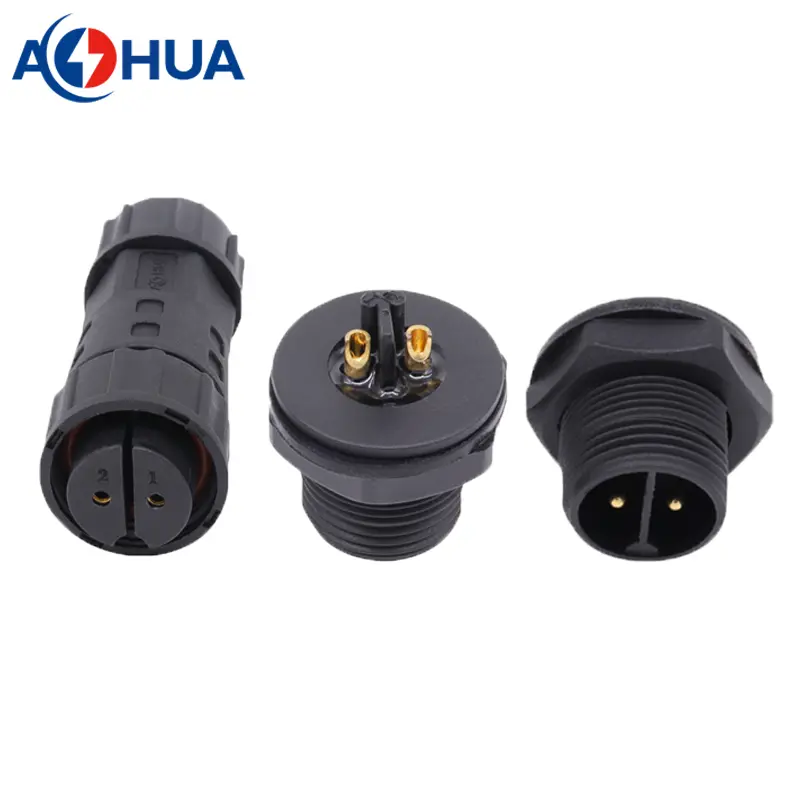

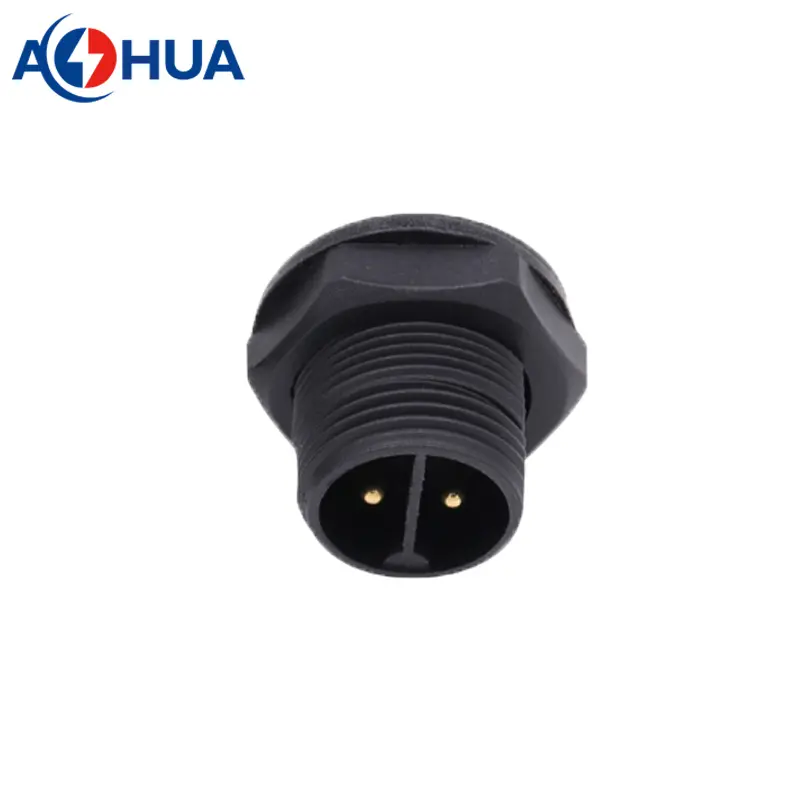

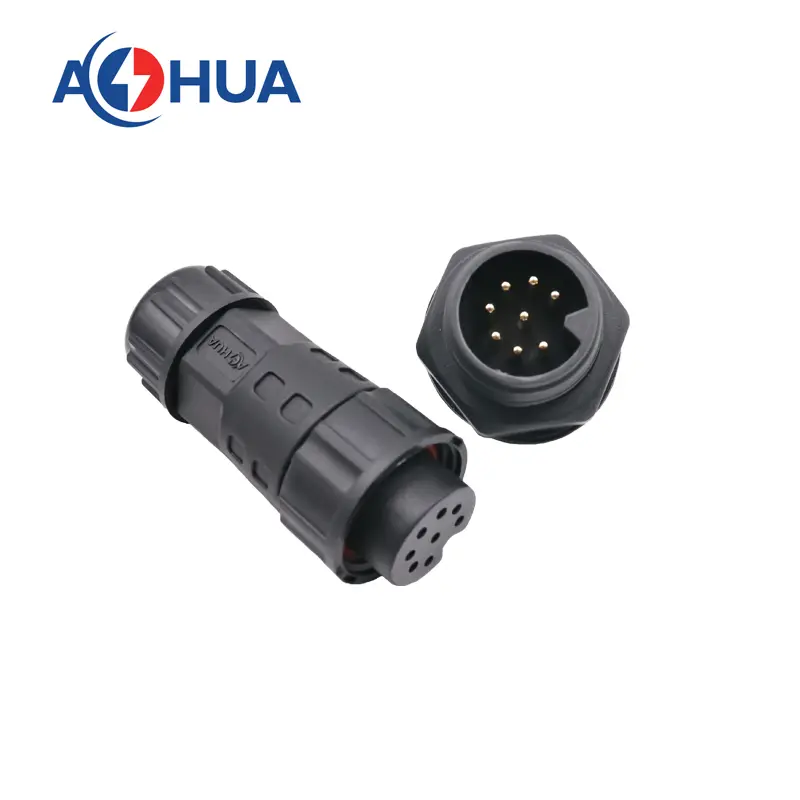

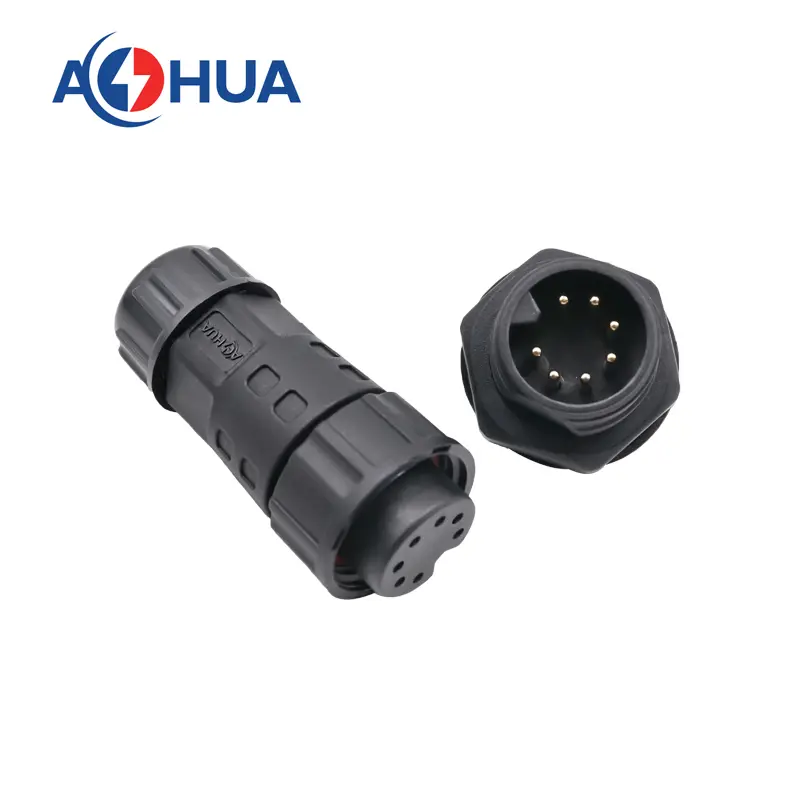

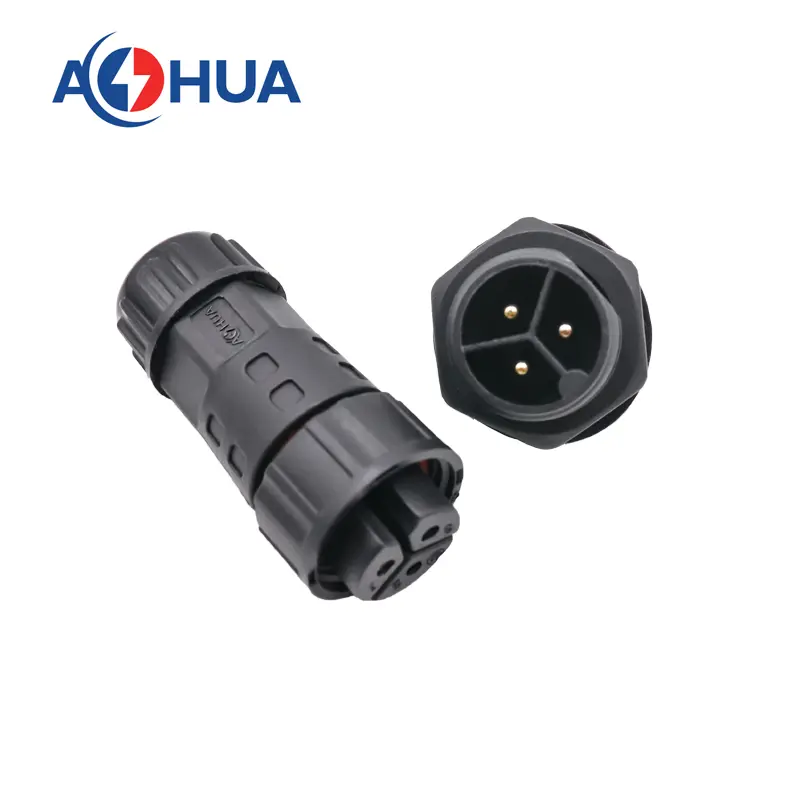

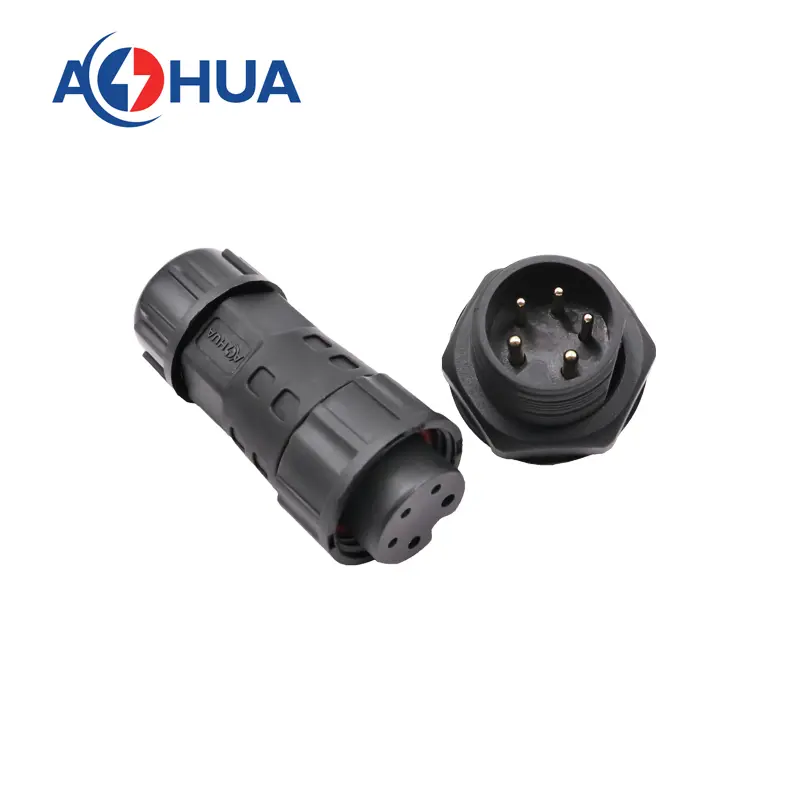

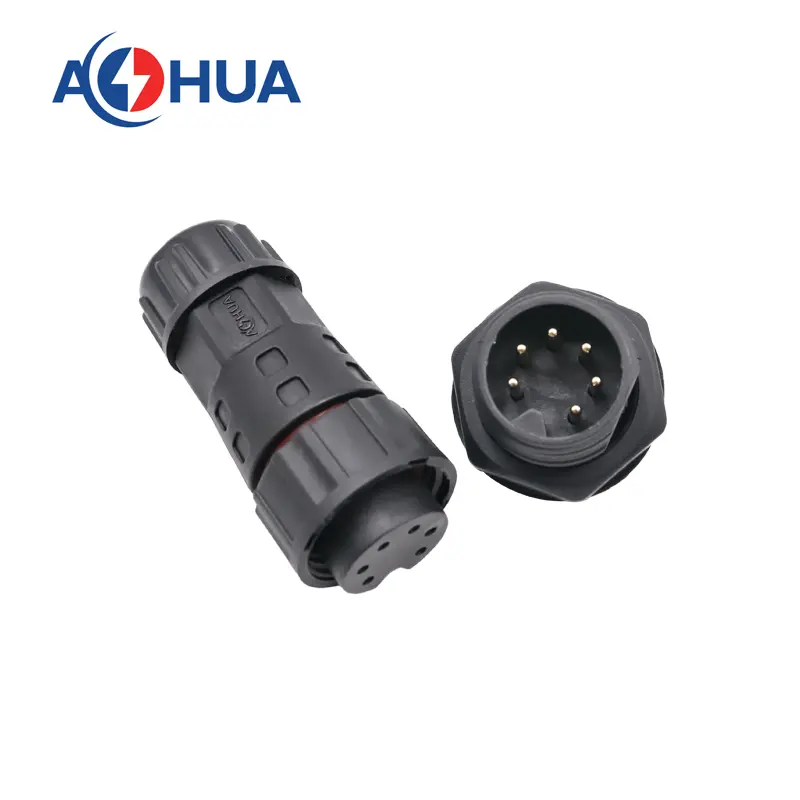

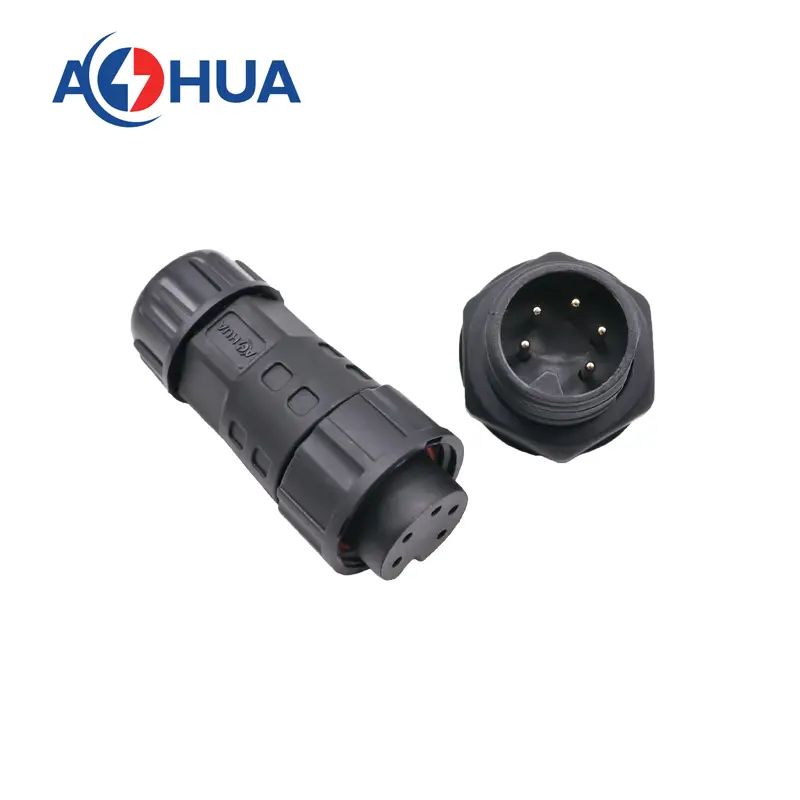

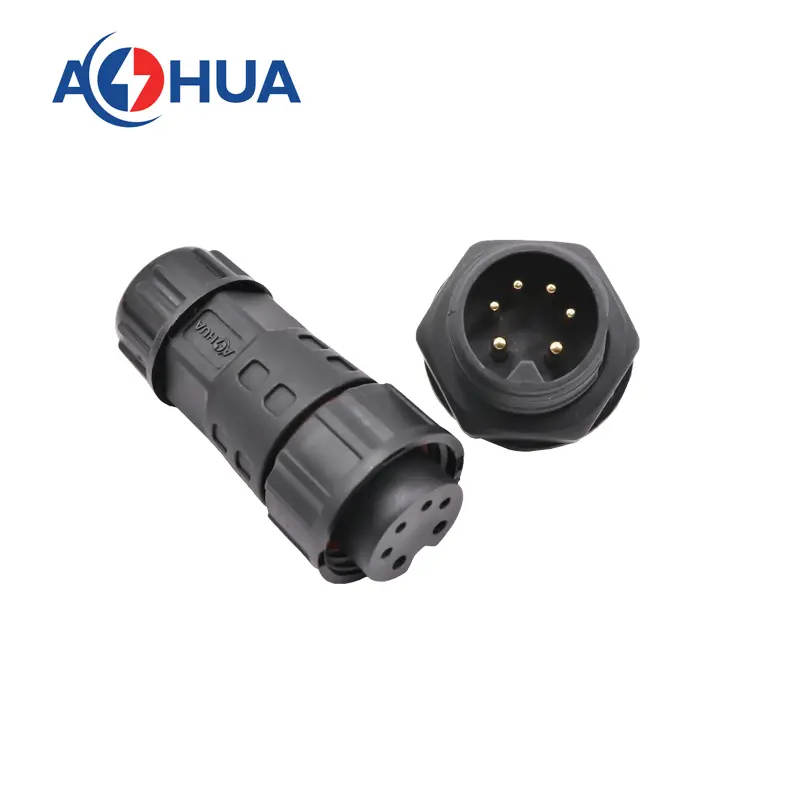

Male waterproof cable connector

AH-M20-1502FMF01112 (solder version)

This is the male side waterproof connector that will be mounted on the junction box panel. This plug is front panel mount, which mean the hex nut will in front of the panel hole.

Component: male connector core, hex nut, gasket.

This connector is solder lugs for wiring operating. Surely we also have screw lugs version for choosing from. Its part number is AH-M20-1502FMF02122(screw).

When ordering panel mount connector, it must to specify the panel connector type, such as front panel mount or rear panel mount. Because it cause the wiring operation is difficult or not.

Please note that there is dust cap for male connector for choosing from. And the solder type have UL version but the dust cap dont have UL version, the screw type dont have UL version.

Surely, we also accept the wiring processing for the panel connector, you need to specify the detail requirements.

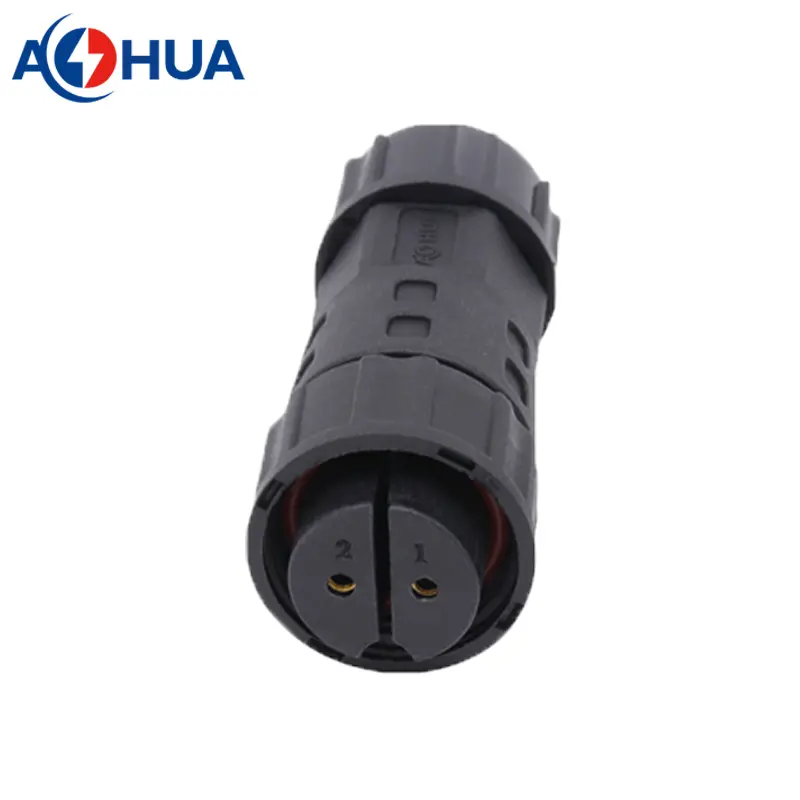

Female waterproof cable connector

AH-M20-1502MFZ01112(solder)

This is the in-line assembly type connector for wiring operating. This terminal is solder lugs or screw lugs, the part number of screw lugs is AH-M20-1502MFZ02122.

Component: waterproof nut, cable gland, enclosure, coupling nut, O-ring, female connector core.

Please note that there is dust cap for female connector for choosing from. And the solder type have UL version but the dust cap dont have UL version, the screw type dont have UL version.

How to choose a right waterproof cable connector for your system?

1. specify the connector type, such as male panel or female panel, front panel mount or rear panel mount;
2. contacts number, such as 2pin;
3. working ampere and voltage, such as 10A, 220V;

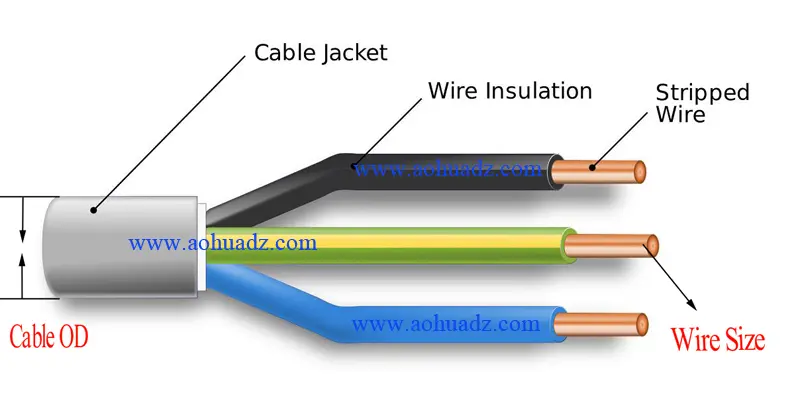

4. wire gauge and cable jacket OD you want to connect, such as 1.5mm², OD8.5mm;
5. wiring processing requirement

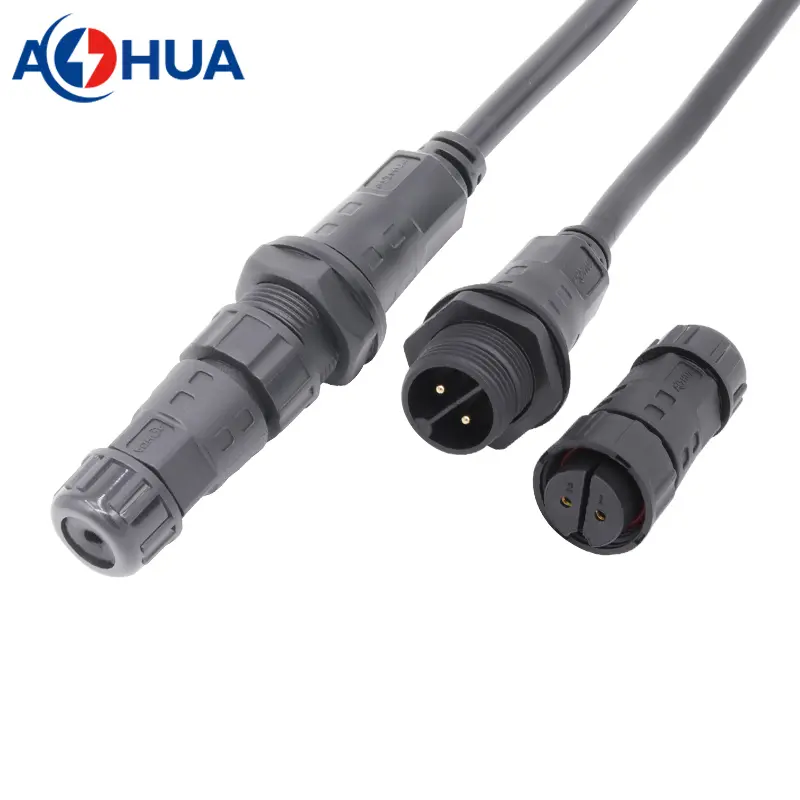

This is the male panel connector molded with cable directly.

Part Number: AH-M20-1502FMB01112

Keep the screw threads to assembly connector, only at the end of the connector molded with cable. This is connector will save your soldering type when doing wiring operating.

Waterproof cable connectors used for junction boxes are designed to provide a secure and reliable connection in wet or outdoor environments. These connectors play a crucial role in ensuring the integrity and safety of electrical connections, especially in applications where exposure to water or moisture is a concern.

The main purpose of a waterproof cable connector for a junction box is to create a watertight seal, preventing water or moisture from entering the junction box and potentially damaging the electrical components inside. These connectors are typically made from durable and weather-resistant materials such as rubber or thermoplastic elastomers, which offer excellent sealing properties and protection against environmental elements.

When it comes to installation, waterproof cable connectors for junction boxes are designed to be user-friendly and easy to assemble. They often feature a screw-on or snap-fit mechanism that securely holds the cables in place and creates a tight seal. Some connectors may also include sealing gaskets or compression fittings to enhance the waterproofing capability.

Customizable options for waterproof cable connectors allow users to select the appropriate size, terminal configuration, and sealing mechanism based on their specific application requirements. This customization ensures compatibility with different types of cables and offers flexibility in terms of installation and maintenance.

To customize a waterproof cable connector for a junction box, several factors need to be considered. First and foremost, it is important to assess the environmental conditions in which the junction box will be installed. Factors such as temperature extremes, exposure to water or chemicals, and the level of moisture should be taken into account to determine the appropriate level of waterproofing required.

Next, the connector’s size and terminal configuration should be selected based on the type and size of cables that will be connected. This ensures a proper fit and a secure connection. Additionally, the sealing mechanism should be chosen based on the level of waterproofing needed and the ease of assembly.

In conclusion, waterproof cable connectors for junction boxes provide a crucial solution for maintaining safe and reliable electrical connections in wet and outdoor environments. Customization options allow users to select the most suitable connector based on their specific application requirements, ensuring optimal performance and protection against water ingress.
