Junction Box Male Female Extension Wiring Panel Type Cable Waterproof Plug M12 2pin For Signal Power

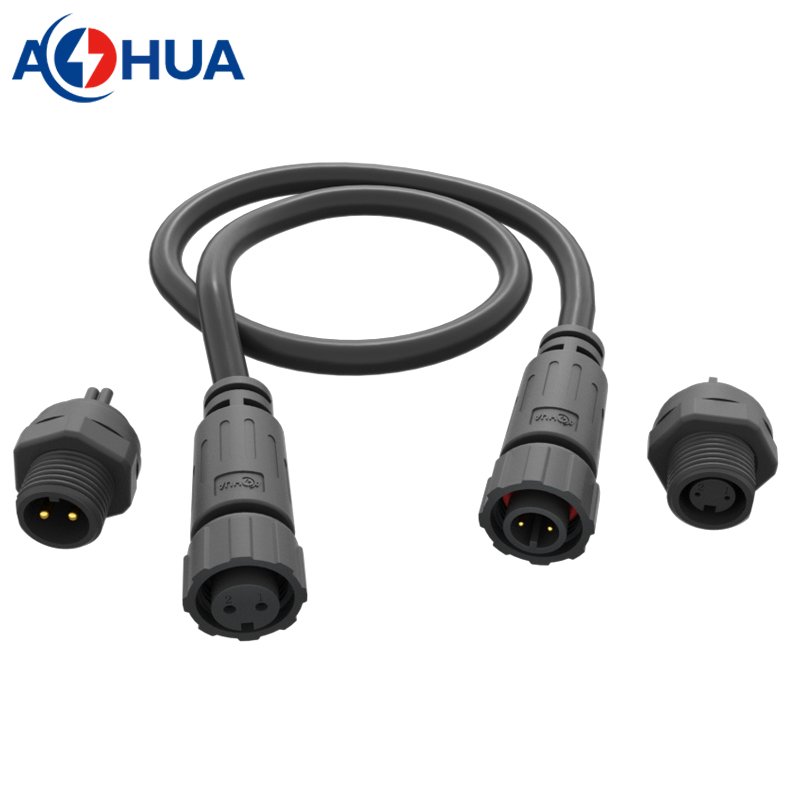

Here is the cable waterproof plug for junction box connection. This solution is Model M12 male to female extension cable connector integrating with panel type male and female plugs.

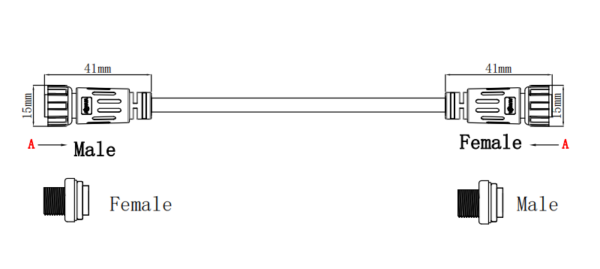

• male to female extension cable: this male and female is molded with cable directly. The connector should be inline type.
  1. male：this is a adapter male connector that is only mating with female panel plug. AH-M12-0502MMN01112
  2. female: AH-M12-0502FMN01112
• male / female panel type plug: this panel type plug should be front panel mount type, which is the hex nut in front of junction box. (also have rear panel mount type for choosing from.)
  1. male panel: AH-M12-0502FMF01112
  2. female panel: AH-M12-0502FFF01112

• How to customize cable waterproof plug?

1. If you want to customize a solution for your junction box, you need to confirm your connector type according to your junction box, such as male panel or female panel(usually the power output is female  and input is male), front panel mount or rear panel(should be consider two points: front panel is outside hex nut, you need to consider whether it is safe environment; rear panel is inside hex nut, you need to consider whether is enough space for screwing hex nut);
2. contacts and working ampere, such as 2pin, 4A;
3. this cable waterproof plug should be molded with cable or assembly? What is the wire size and cable length?
4. whether is required dust caps for unplug?

AH-M12-CAP-M

AH-M12-CAP-F

More information about connectors or customize cable waterproof plugs, please contacts our sales or check the website www.aohuadz.com.
