Junction Box Panel Mount Solder Type Assembly Molding Male to Female IP68 2 Pin Waterproof Plug
Junction Box Panel Mount Solder Type Assembly Molding Male to Female IP68 2 Pin Waterproof Plug
- Model: M12
- Connector Type: oval panel
- Contacts: 2pin
- Rated Voltage: 300V
- Rated Current: 5A
- Plastic Material: PA66
- Conductor Material: gold plated brass
- Wire Gauge: ≤1.0mm²
- Cable OD: 2.6-7.5mm
- Operating Temperature: -40℃~+105℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Junction Box Panel Mount Solder Type Assembly Molding Male to Female IP68 2 Pin Waterproof Plug

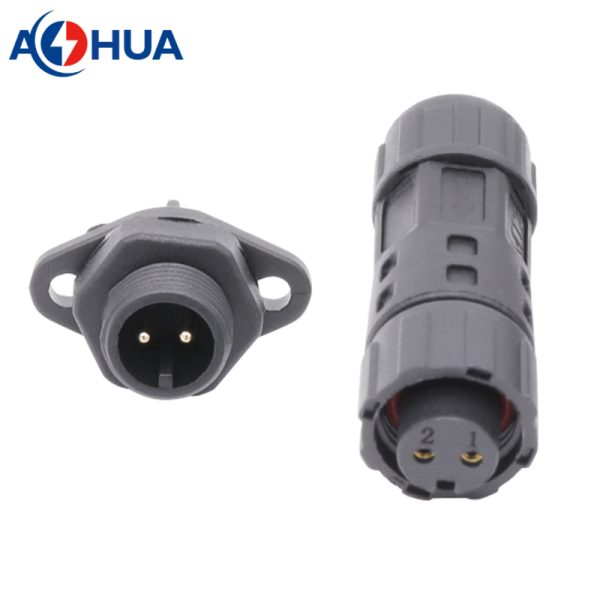

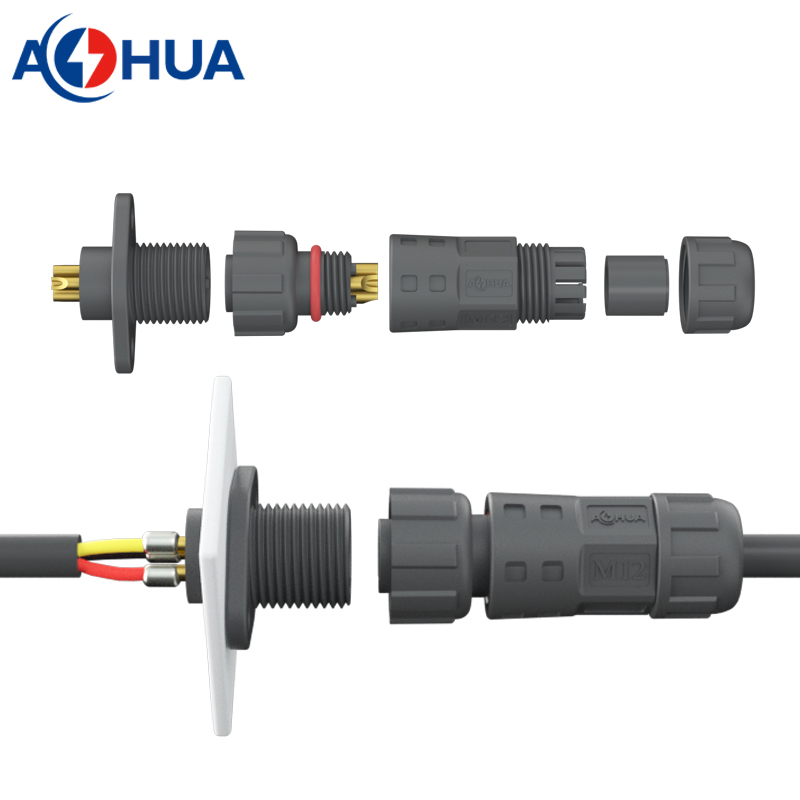

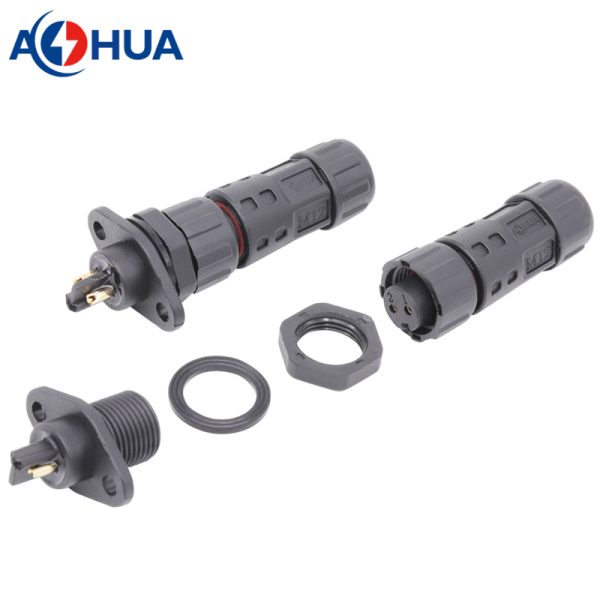

This is model M12 in oval panel type male to female waterproof plug 2pin. The male side is front panel mount, and female side is assembly or molding type connector.
This connector is coming with solder lugs, which is required soldering electrical iron and tin for wiring operation.
 |
 |
| Model | M12 |
| Male | AH-M12-0502FME01112 |
| Female(Assembly) | AH-M12-0502MFZ01112 |
| Female (Molding) | AH-M12-0502MFN01112 |
| Contacts | 2pin |
| Rated Voltage | 300V |
| Rated Current | 5A |
| Wire Gauge | ≤1.0mm² |
| Cable OD | 2.6-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67/IP68 |
