Junction Box Power Electrical Wire Processing 2pin Male Connector Front Waterproof Panel Mount Connector 10A 300V K15
Junction Box Power Electrical Wire Processing 2pin Male Connector Front Waterproof Panel Mount Connector 10A 300V K15
- Model: K15
- Contacts: 2pin
- Current Rated: 10A
- Voltage Rated: 300V
- Wire Gauge: ≤1.0mm²
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 1000 mating cycles
- Waterproof Grade: IP68
- Certificate: CE&ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Junction Box Power Electrical Wire Processing 2pin Male Connector Front Waterproof Panel Mount Connector 10A 300V K15

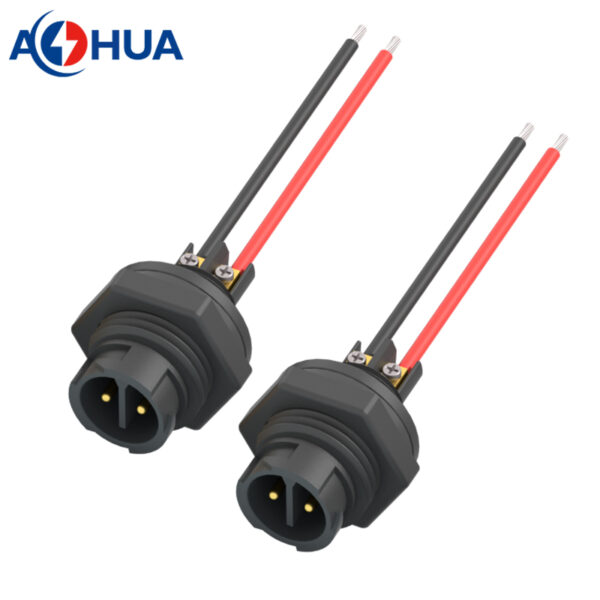

This is panel mount type male side waterproof connector, which is mounting on the panel hole of junction box.
Highlights
- Rated Current: 10A
- Rated Voltage: 300V
- Wire Gauge: ≤1.0mm²
- Wire Connection: Screw fixing type
- Docking Type: push-locking type
- front panel mount
- Plastic material: PA66
- Conductor: gold plated brass
Part Number
AH-K15-1002FMF01222
How to customize?
- the wire gauge can be chosen round cable or single core electrical wire, such as SJOW, VDE, or UL1015 or UL1007, 2*1.0mm²/0.75mm²/0.5mm², or 1*1.0mm²/0.75mm²/0.5mm² wire.
- the cable length can be customized as you need.
- please confirm the connector type, working ampere, wire gauge, and cable length and quantity, then send all these information to our sales manager-Molly, her team will get back to you with drawing for confirmation. Once confirm drawing, then start sample testing. It can start mass order once confirm sample.

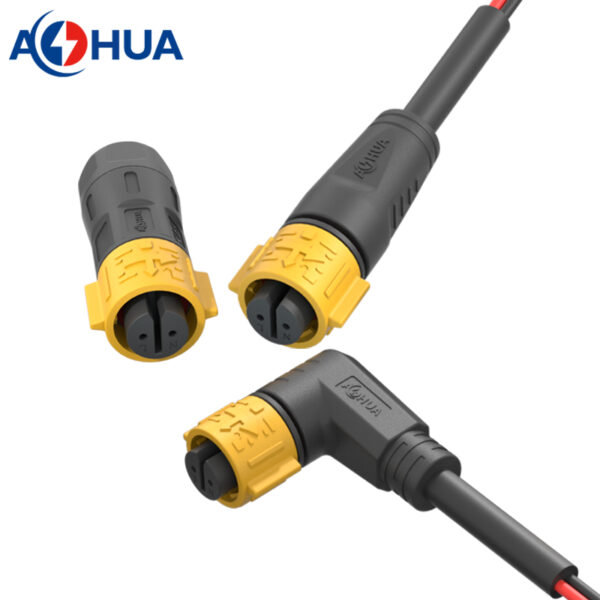

Mating connector-female
- The mating connector for male panel plug is female connector with coupling nut. It can be inline assembly, molding, or angle.
- Also can be done processing with cable.
- inline assembly: AH-K15-1002MFZ01222
- inline molding: AH-K15-1002MFN02212
- angle molding: AH-K15-1002MFL02212
