K25 Vertical Farming 2pin Power System Male Female Wateproof Connector Plug IP67 IP68

K25 Vertical Farming 2pin Power System Male Female Wateproof Connector Plug IP67 IP68

Male: AH-K25-3502MMZ01222
Female: AH-K25-3502FFZ01222
Contacts: 2 pin
Plastic Material: Nylon PA66
Metal Material: Gilded brass
Rated Voltage: 300V
Rated Current: 35A
Wire Gauge: ≤4.0mm²
Cable OD: 8-15mm
Mechancial Life: 1000 mating cycles
Operating Temperature: -40℃~+105℃
Waterproof Level: IP67/IP68
Certificate: CE/RoHS/ISO
Payment Terms: Paypal, T/T Wire Transfer
Shipping Port: Shenzhen China

Share to:

K25 Vertical Farming 2pin Power System Male Female Wateproof Connector Plug IP67 IP68

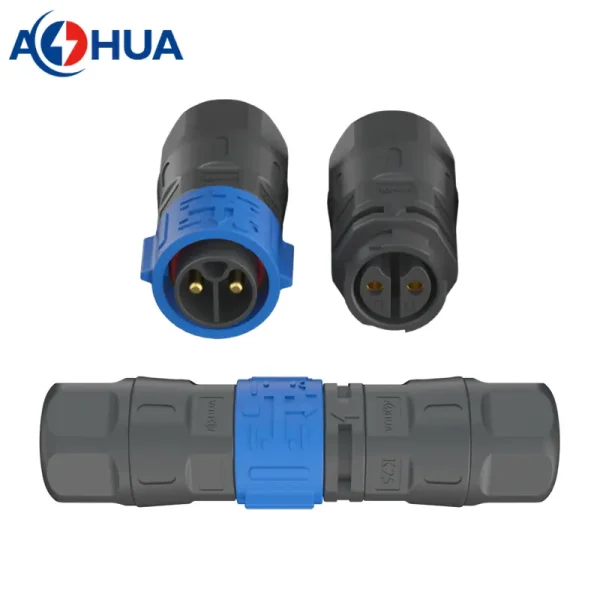

This is male to female connector plug with waterproof protection.
The connector is assembly type that is without cable.
The terminal is screw lug, which is easy for wire installation.
The coupling nut is fast locking type.

Material

Plastic: Nylon PA66
Metal: Gold-plated brass
O-ring/cable gland: Silicone rubber

Male: AH-K25-3502MMZ01222
Female: AH-K25-3502FFZ01222

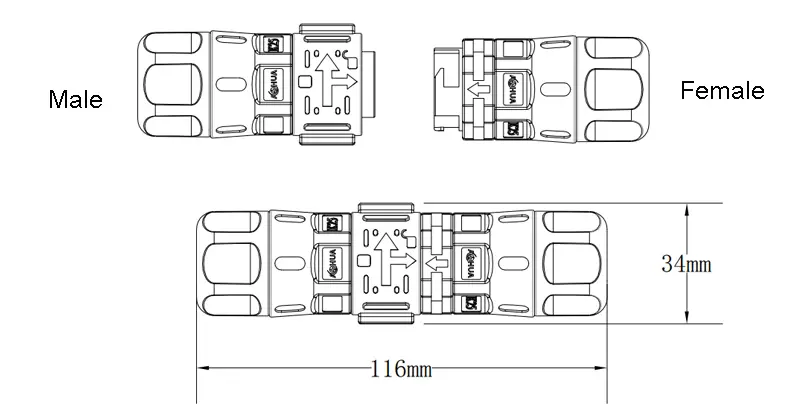

Diameter: length about 116mm, wide about 34mm

Terminal: screw lugs

Generate Wire Gauge: 4.0mm²/2.5mm² or 10AWG/12AWG

Contacts	2 PIN
Voltage Rated	300V
Current Rated	35A
Wire Gauge	≤4.0mm²
Cable OD	8-15mm
Mechanical Life	1000 mating cycles
Operating Temperature	-40℃~+105℃
Waterproof Level	IP67 / IP68

How to order this 2 pin waterproof connector plug?

The power supply and wire details are the key parameter of choosing a right waterproof connector plug.

contacts or pin number;
connector types;
working ampere and voltage;
wire gauge and cable jacket OD;

Other requriemens such as install cable wire are also acceptable if available. Please inquiry our sales, our team will get back to you soon.

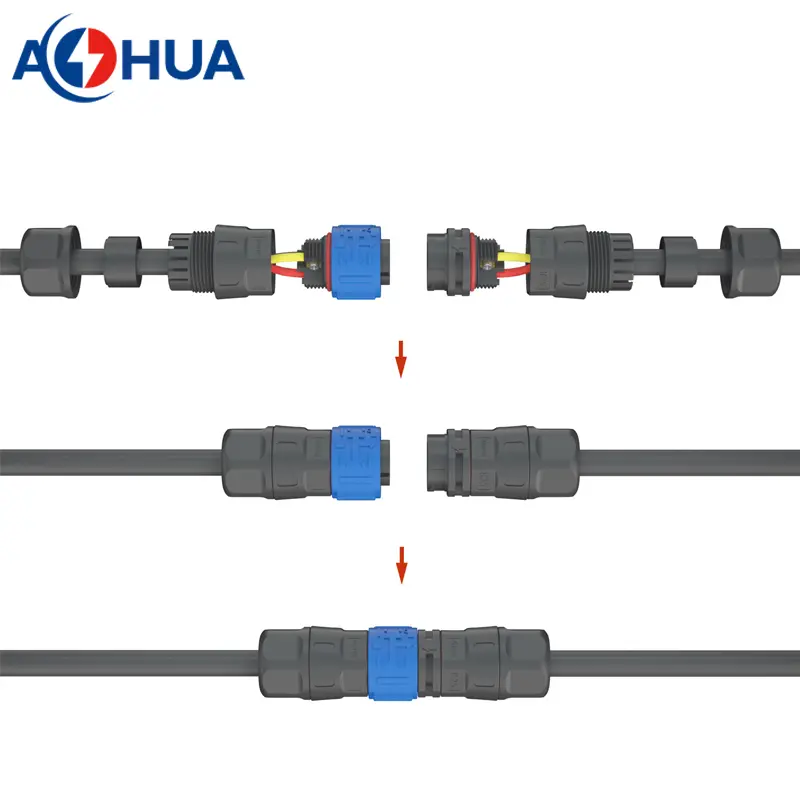

How to do wire installation?

In advance, you need to prepare a fine screwdriver.

do wire stripping length about 10mm;
take off components waterproof nut, cable gland, enclosures;
put the cable through these components orderly;
tighten up the wires on socket;
assemmbly all components.

How to choose the right cable gland to get good waterproof effect.

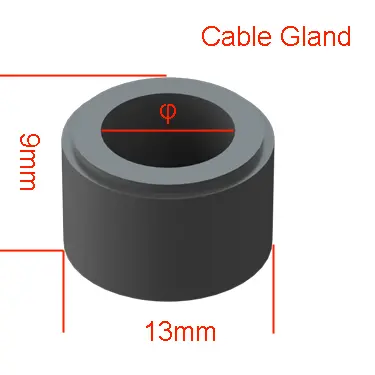

This is the cable gland, which is used to make the cable end with waterproof effect. And the cable will go through this cable gland. So to get better waterproof effect, the inside diameter of cable gland requuire larger than but close to the cable jacket OD.

Cable Jacket OD	Cable Gland
6.0-7.5mm	φ7.5mm
7.0-9.5mm	φ9.5mm
9.0-10mm	φ10mm
10-12mm	φ13mm
12-15mm	φ15mm

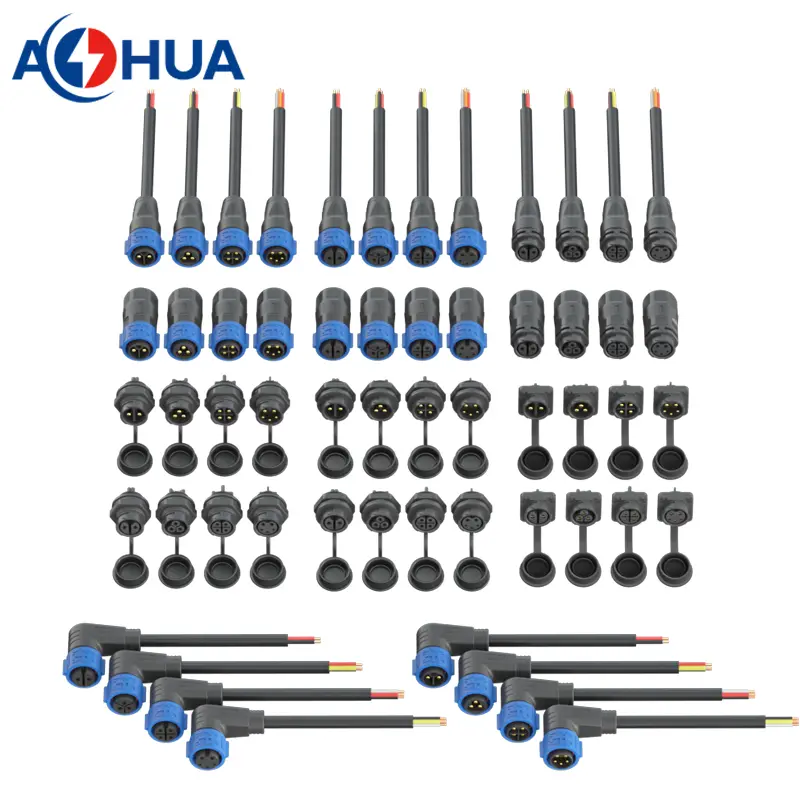

The K series waterproof connector plug not only have wire to wire assembly type, but also have over molded type, wire to panel mount type, and angle connector type. And AOHUA as a professional manufacturer, we can accept the wire processing for connector plug.

Your cable solutions can be designed once you can tell us your vision.
