LED Accessory RGB Neon LED Strip Light Power Signal Extension Wire Waterproof Cable Connector 2pin 18AWG
LED Accessory RGB Neon LED Strip Light Power Signal Extension Wire Waterproof Cable Connector 2pin 18AWG
- Customized waterproof cable connector for led lightings

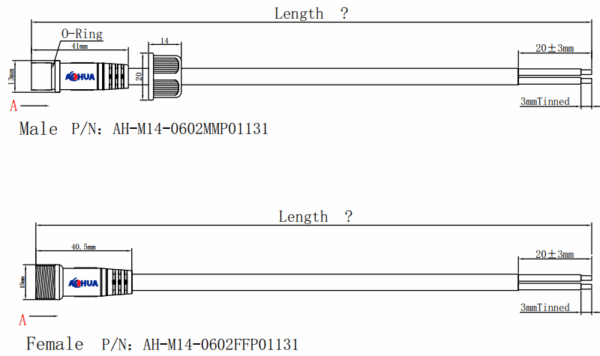

- Male: AH-M14-0602MMP01131
- Female: AH-M14-0602FFP01131
- Model: M14
- Contacts: 2pin
- Wire size: 1.0/0.75/0.5mm² or 18/20/22AWG
- Color: black, white, or specified.
- Cable: PVC, rubber, TPU or specified
- Cable Length: customized as required.
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
RGB Neon LED Strip Light Power Signal Extension Wire Waterproof Cable Connector 2pin 18AWG

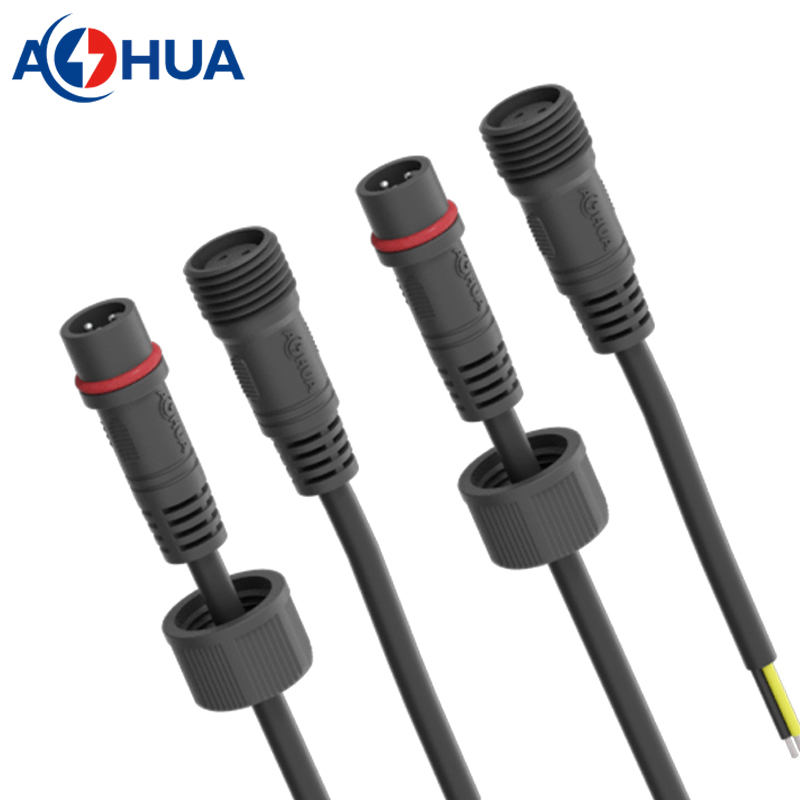

Here introduce AOHUA popular waterproof connector M14 2pin. This is full PVC material plug and socket. The RGB Neon LED Strip Light Power Signal Extension Wire is an essential accessory for custom and professional LED lighting installations. Designed specifically for 2-pin RGB Neon-style LED strips, this 18AWG waterproof cable connector provides a reliable and seamless method to extend the reach of your lighting system beyond the limits of a single strip.
This robust extension cable features a male-to-female connector design, allowing you to bridge gaps between controllers and strips, navigate around corners, or connect multiple strips together in a continuous run. The 18AWG (American Wire Gauge) thickness ensures minimal voltage drop over longer distances, preserving the brightness and color consistency of your LEDs. Crucially, the waterproof (IP65 rated) connector housing protects the electrical connection from dust, moisture, and splashes, making it perfectly safe for use in kitchens, bathrooms, and outdoor environments. This connector is the ideal solution for achieving a clean, professional, and durable LED installation without cutting or soldering.
Highlights & Specifications
- Connector Type: male to female, molded with cable;
- Connection Type: crimping
- Docking Type: screw threads
- Plastic Material: PVC
- Conductor: copper terminal
- Cable Material: rubber, PVC, or specified
- Cable Color: black, white, or specified
- Cable Length: customized as required.
- Model: M14
- Contacts: 2pin
- Voltage Rated: 250V
- Current Rated: 6A
- Wire Size for Choosing: 1.0/0.75/0.5mm² or 18/20/22AWG
- Cable OD: 4-6.8mm
- Operating Temperature: -20℃~+80℃
- Mechanical Life: 500 mating cycles
- Waterproof Grade: IP65
How to order?
- It would be great thanks if you can provide a simple drawing marking with wire details.
- We would like to know about: connector type, working ampere, wire size and cable length.
Customization Solutions
