LED Driver Power 10A Approved Cert Male Female Socket Plug Electrical Wire Jack Joint Extension Wiring Waterproof UL IP68 Connector

Here refering to the UL IP68 connector mainly use to the connection of outdoor or indoor power to equipment.

Highlight Feature:

1. Standard screw threads: M15.
2. UL certified: SJOW wire 2*14AWG or 2*16AWG
3. CE & ROHS certificates included
4. High quality and shortest lead time.

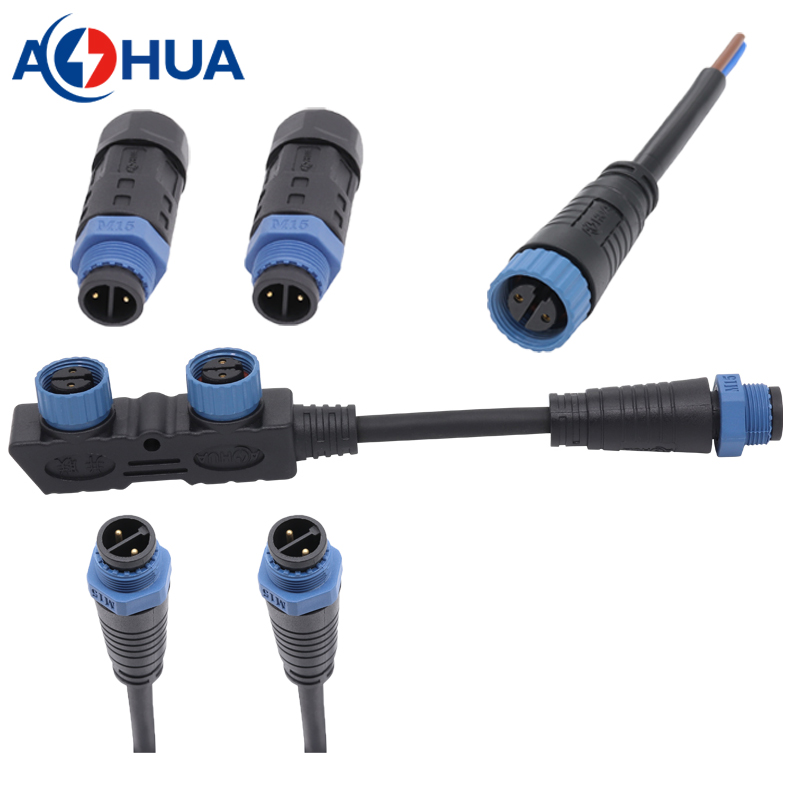

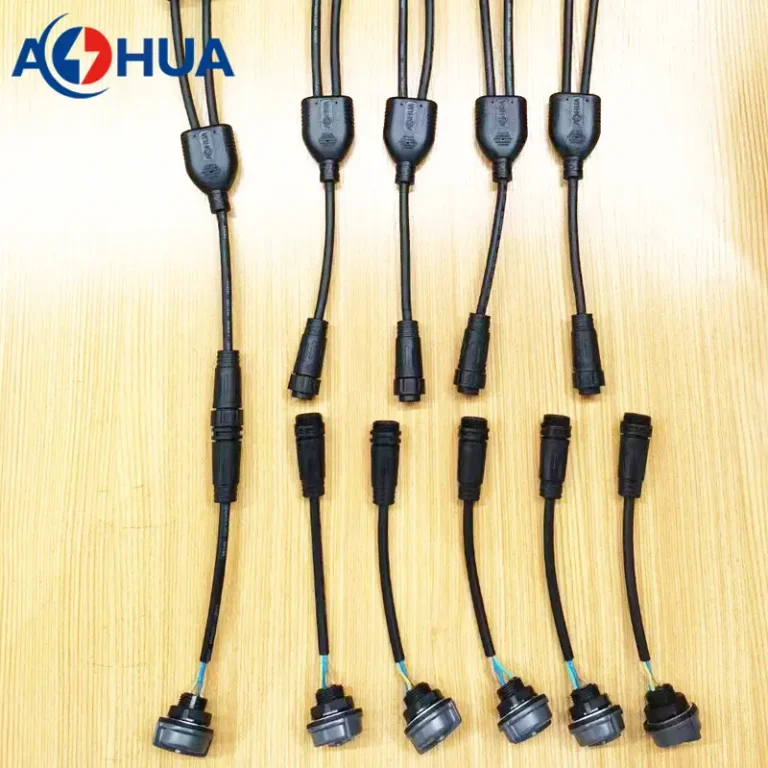

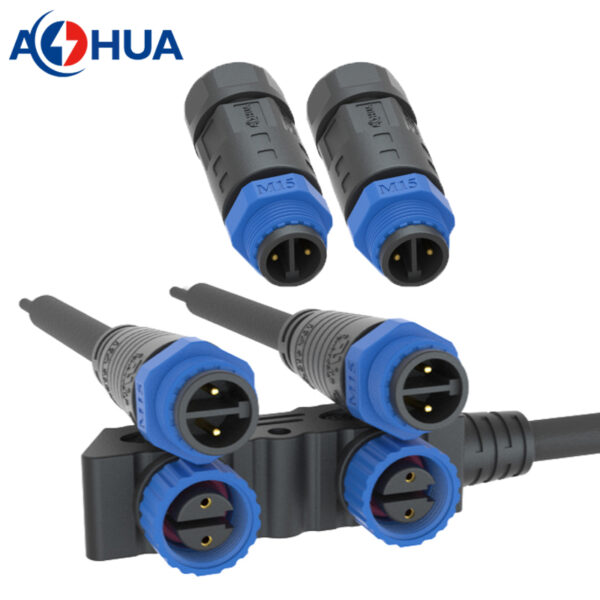

Customize UL IP68 connector cable solutions: the mainly connector the male to female plug and sockets, we can make it in: male & female with open wire end, or extension cable with male&male, male&female, female&female connectors; besides, we also can make it in splitter cable connectors solution: F type distributor with male and female connector-this solution is perfectly suitable for the power divide into multiple cables to many equipment.

Specifications

1. Contacts: 2pin
2. CE & ROHS & UL
3. Voltage Rated: 300V
4. Current Rated: ≤1.5mm²
5. Cable OD: 5-10mm
6. Mechanical Mating: 3000 mating cycles
7. Operating Temperature: -40℃~+105℃

Connector Type

1. assembly type: without cable, solder lugs
2. over molding type: molded with cable;
3. splitter type: molded with cable.

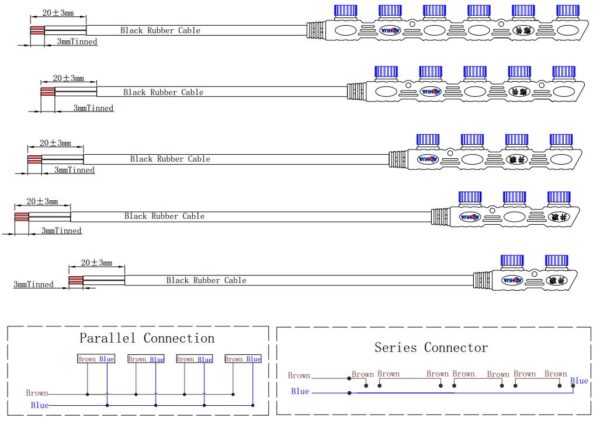

Connection of distributor: Parallel or Series

How to order?

1. please make a sketch marking with wire details and sockets number.
2. specify working ampere, wire size, cable length, connection.
3. confirm the quantity you need, where do  you want to use it;
4. our team will get back to  you with CAD drawing and price within 24 hours.
