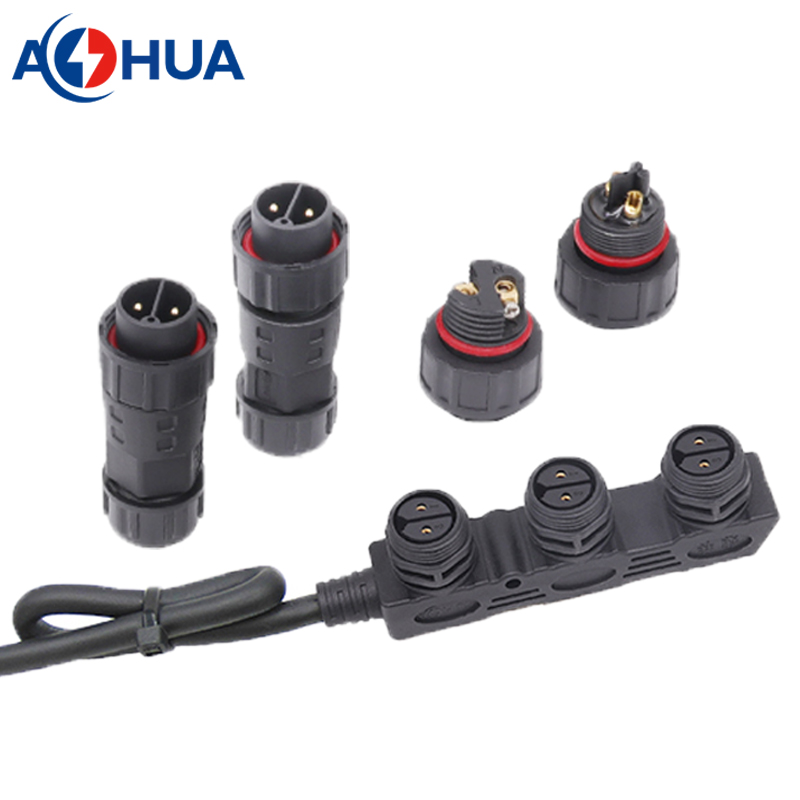

LED Driver Power Module Output Distributor Cable Solution Male Female M20 2pin 1 To 3 Waterproof Wiring Connector

This is 1 input and 3 output cable solution with waterproof connector. In general, the input cable will be connected to the driver output side, and the 3 outputs cable will be connected to the device or LED lights or modules. The distributor inside is PCB panel, which is safe and high quality structure.

1. Model: M20—the male female connector is M20 waterproof connector.
2. Contacts: 2pin—this is 2 cores wire cable solution.
3. Parallel: AH-M20-1002FFO3P112— the branch cables are Parallel connection.
4. Series: AH-M20-1002FFO3S112— the branch cables are Series connection.
5. Rated Voltage: 300V
6. Rated Current: 10A
7. Wire Gauge: ≤1.5mm²—there are some wires for customized: 1.5mm²/1.0mm²/0.75mm²
8. Cable OD: 6-10mm
9. Plastic Material: PA66—hight strength and resistant
10. Conductor Material: gold plated brass— good electrical properties
11. Cable Material: PVC or Rubber— Rubber cable is good for outdoor application

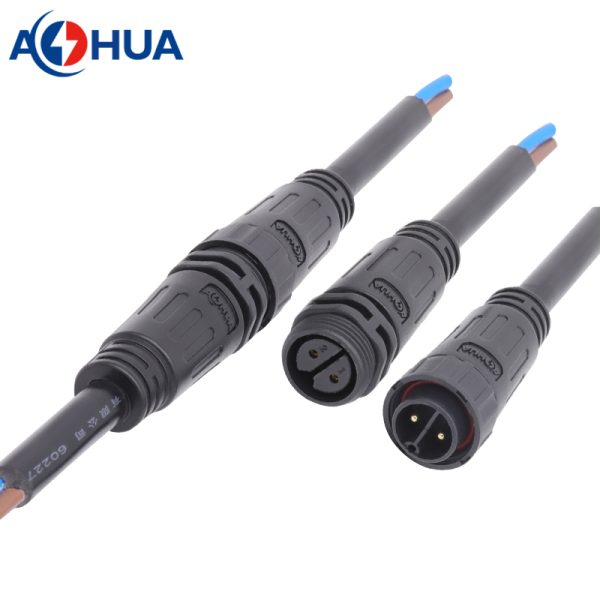

Except the splitter, the mating connector can be assembly type or molding connector

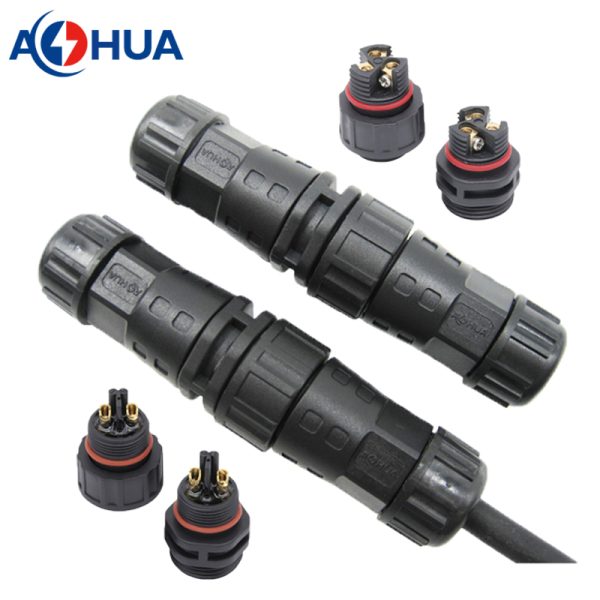

Assembly type male female connector There are solder type and screw type connectors for choosing from. The input can be designed with male assembly connector. The branch connector also can be assembly type connector male.	Molding type male female connector The input and branch cable can be designed with male connector molded with cable.

How to customized?

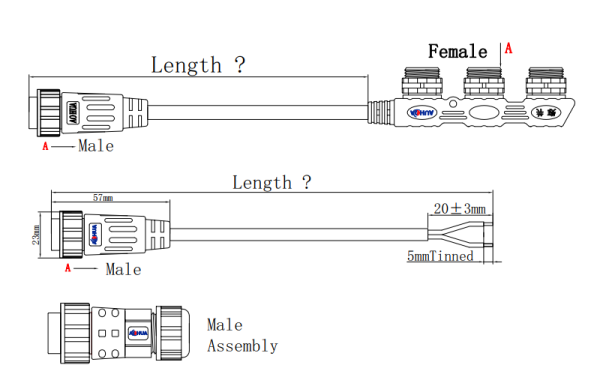

Due to these are some wire sizes and connector for customized, so please provide more information, then our team will create the drawing for your approval. Then sample and production will be following. Including:

1. working ampere: 5A  or 10A?
2. wire gauge: 1.0mm² or 1.5mm²?
3. cable length: 100mm or 1000mm?
4. connector type: assembly or molding type?
5. cable material: PVC or rubber?
6. connection type: Parallel or Series?
