LED Lighting Power Signal Extension Cable Waterproof Panel Mount Male Female 2 Pin Connector
LED Lighting Power Signal Extension Cable Waterproof Panel Mount Male Female 2 Pin Connector
- Model: M12
- Connector Type: panel mount
- Contacts: 2pin
- Plastic Material: PVC or rubber
- Conductor: gold plated brass
- Rated Voltage: 300V
- Rated Current: 5A
- Wire Gauge: ≤1.0mm²
- Cable OD: 2.5-7.8mm
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
LED Lighting Power Signal Extension Cable Waterproof Panel Mount Male Female 2 Pin Connector
Customized male female 2pin connector cable solution for led lighting with waterproof effect.
- Model: M12
- Contacts: 2pin
- Rated Voltage: 300V
- Rated Current: 5A
- Wire Gauge: ≤1.0mm²
- Cable OD: 2.5-7.5mm
- Plastic Material: PA66
- Conductor: gold plated brass
- Cable Material: PVC or Rubber or TPU
- Cable Length: customized as requirements

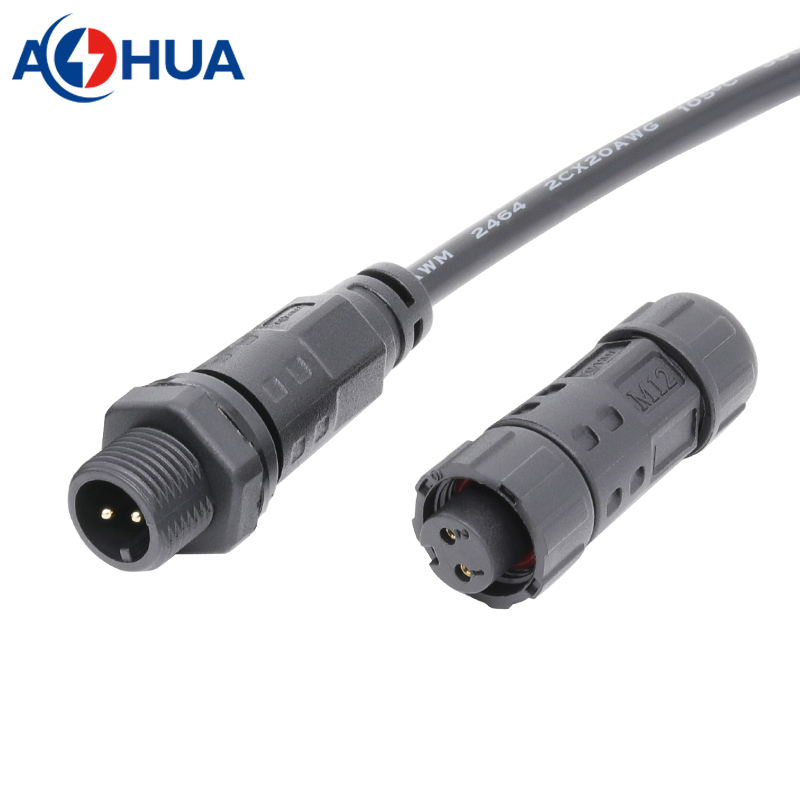

- Male: AH-M12-0502FMB0113—this is the male connector in panel mount type, which is molding with cable directly.
- Female: AH-M12-0502MFZ01112—this is female connector in assembly type, which is assembled with components.

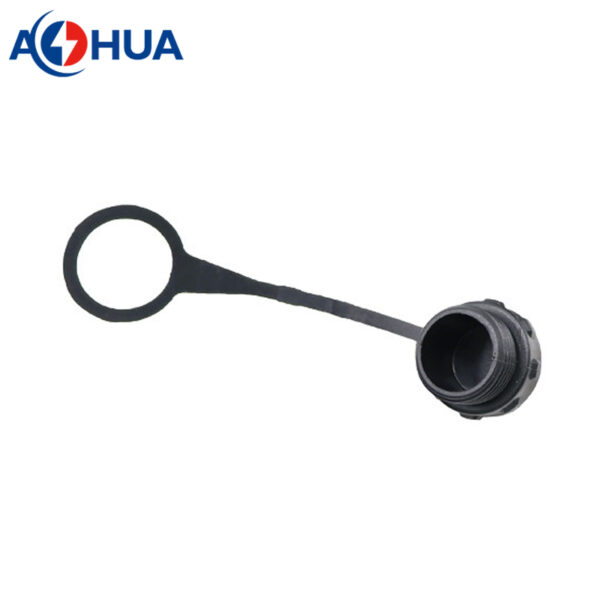

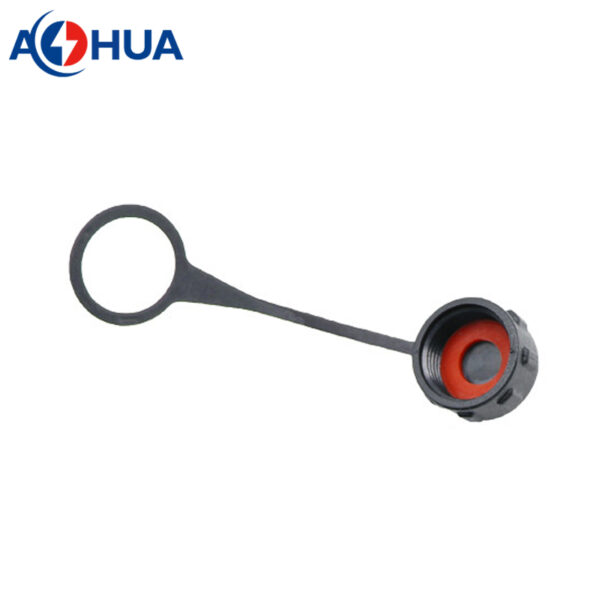

- There is dust caps for connector when unplug. AH-M12-CAP-M is used for the male panel, AH-M12-CAP-F is used for the female connector.
AH-M12-CAP-M |
AH-M12-CAP-F |
