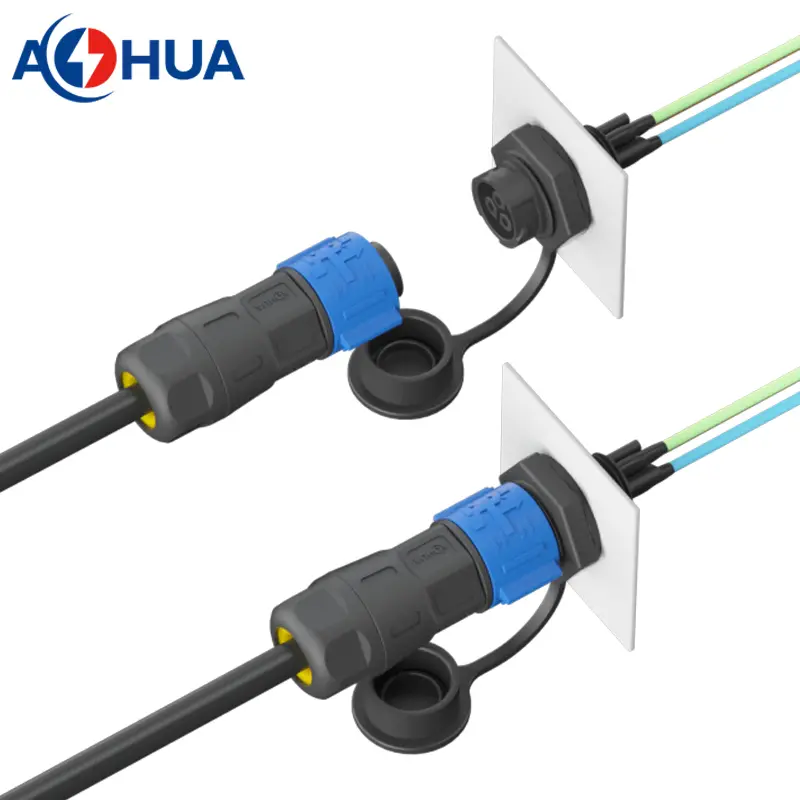

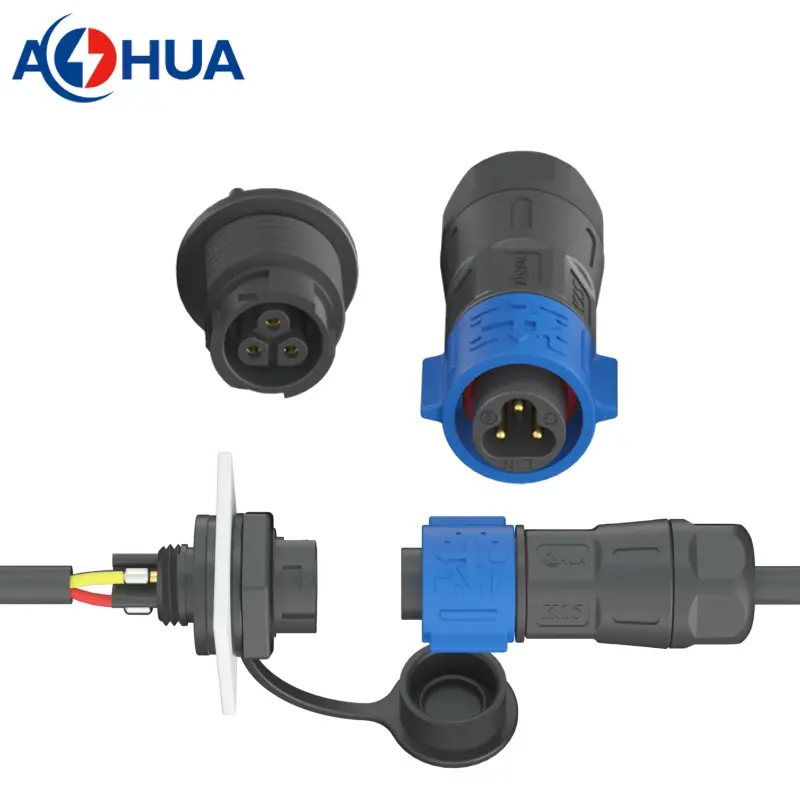

This is K15 waterproof cable electric connector that is panel mount type. The male is inline connector with screw lugs, and the female is front panel mount connector with solder lugs.

• Male: AH-K15-1003MMZ01222
• Female: AH-K15-1003FFF01212

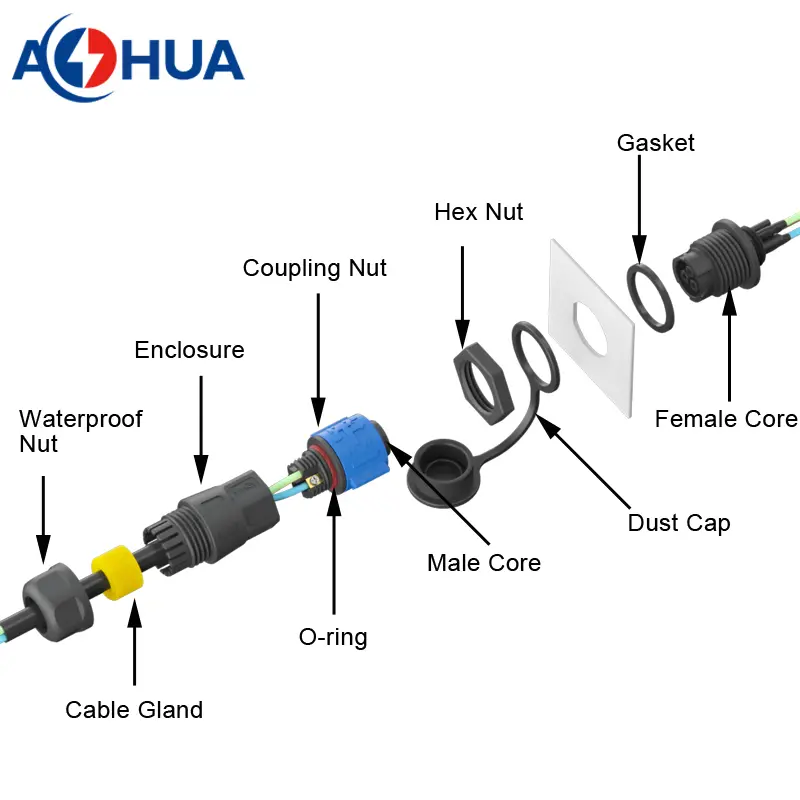

This is assembly connector that is without cable, which including components-waterproof nut, cable gland, enclosure, coupling nut, O-ring, connector core, hex nut, gasket.

Parameter & Material

• contacts number: 3pin
• rated voltage: 300V
• rated current: 10A
• wire gauge: 0.5-1.0mm²
• cable jacket OD: 5-10mm
• mechanical life: 1000 mating cycles
• operating temperature: -40℃~+105℃
• waterproof grade: IP67/IP68
• cable gland: φ6.5/7.5/8.5/9.5/10mm

1. plastic material: nylon PA66
2. metal material: gold plated brass
3. cable gland/ O-ring material: silicone rubber
4. Dust cap material: rubber

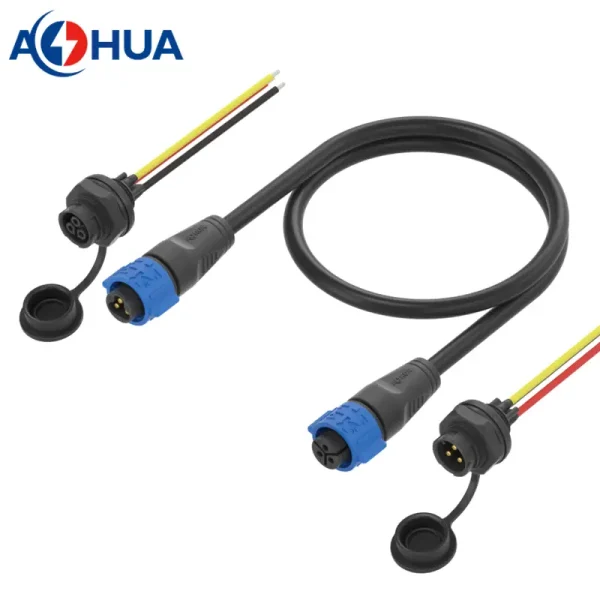

This connector can be customized wire processing in our factory. The female panel connector solder with single core electrical wire and seal with heat shrink tube.

How to do wire installation?

1. Select the appropriate waterproof connector: Choose a connector that matches the wire gauge, number of pins/sockets required, and the specific application requirements. Consider factors such as the voltage and current ratings, environmental conditions, and the type of cable being used.
2. Prepare the wires: Strip the insulation off the ends of the wires to expose the conductors. The length of the stripped portion should be suitable for inserting into the connector without excess or insufficient exposed wire.
3. Insert the wire orderly through the components, and tighten up the wires on screw lugs/solder wire on solder lugs.
4. Assembly all components, and connect male to female connector.
