LED Plant Grow Lights 2 Way 8 Way 1 TO 2 8 Branch Cables Y Shape Circular PA66 M20 Power Splitter Waterproof Connectors

Here mainly talk about the splitter waterproof connector, which is the customized cable connector solution. According to the different requests, we can design the solution and make it meeting your requirement.

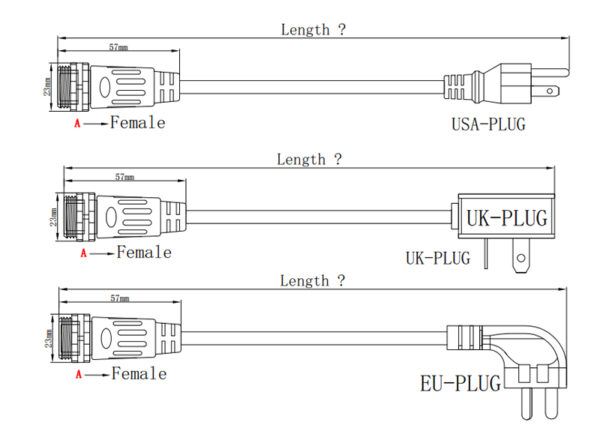

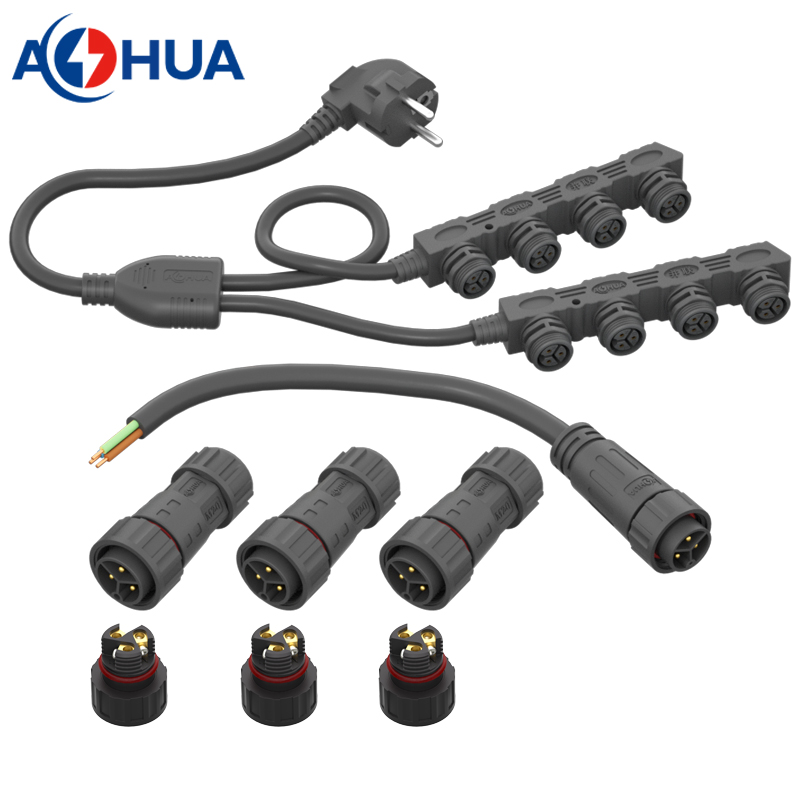

In this Y shape waterproof connector solution, we have also incorporated the EU plug into the design, it means that you dont need to consider the connection between power plug to splitter, and not more connector to connect. Sure here, if you require plug and unplug, we can design a male&female connector between power plug and splitters. If you already have the power plugs cable, and no plug & unplug connector, we also have terminals socket type splitter for wire insert and assembly it.

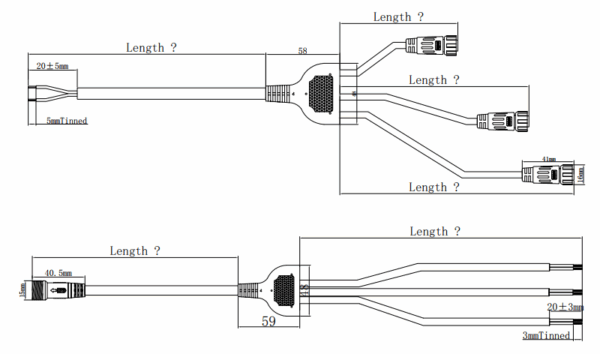

The splitter connector is Y shape firstly, 1 input and 2 outputs; Then the branch cable also divide into 4 branches, it is F type 3pin sockets type. The important choices for mating connectors are assembly type or over molding type connectors. How to choose it is according to your equipment whether have cable or not: if have cable, the assembly waterproof connector is perfect; if no cable, the molding waterproof connector is better.

Specifications & Features

• Model: Y shape waterproof connector solution
• Contacts: 3pin
• Plastic material: PA66
• Cable material: rubber, PVC, or specified.
• Conductor material: gold plated copper
• Connection: Parallel or Series
• Contacts: 3pin
• Voltage Rated: 300V
• Current Rated: 15A
• Wire Size: ≤1.5mm²
• Cable OD: 5-10mm
• Operating Temperature：-40℃~+105℃
• Mechanical Life: 3000 mating cycles
• Waterproof Grade: IP67

How to customize your own cable waterproof connector solution?

• It will be great thanks for you if you can create a simple drawing marking with wire details and connector types.
• We are eager to learn about: working ampere, wire size, cable length or cable OD, connection type, connector types, and etc.
