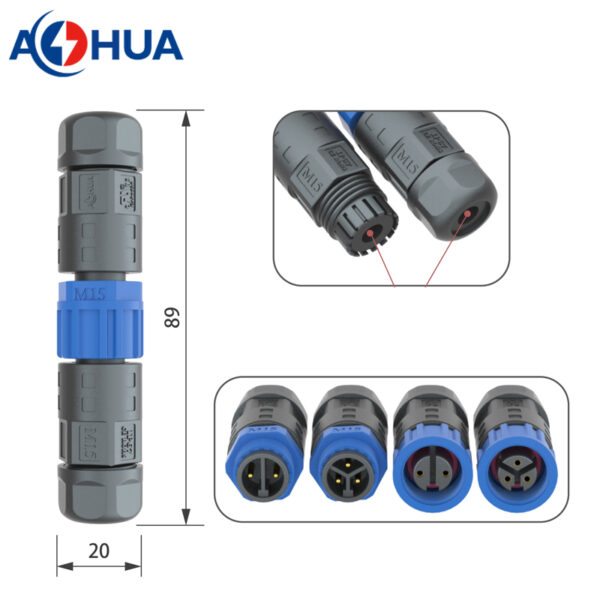

LED Power 10A Assembly Standard Threads 1.5 1.0 0.75mm Wire Male Plug Female Socket UL Waterproof M15 Connector 3pin

The 10A M15 3-Pin LED Power Connector is a robust and reliable interconnection solution designed for demanding outdoor and industrial lighting applications. This set features a standard threaded (M15) male plug and female socket, ensuring a secure, vibration-resistant, and fully waterproof seal rated to IP67/IP68 standards when mated. Its UL certification guarantees it meets rigorous safety requirements.

Engineered to handle up to 10 amps of current, it is perfectly suited for high-power LED arrays, signage, and low-voltage landscape lighting systems. The connector accommodates flexible wire sizes from 0.5mm to 1.5mm, providing excellent versatility for various installation needs. The three-pin configuration allows for secure positive, negative, and earth connections, preventing incorrect mating. Built with durable, UV-resistant materials, this connector offers exceptional protection against moisture, dust, and harsh environmental conditions, ensuring long-term performance and safety for your electrical projects.

1. Model: M15
2. Contacts: 3pin (3 core)
3. PA66: outstanding mechanical strength and stiffness.
4. Gold plated copper: excellent electrical conductivity
5. Voltage Rated: 300V
6. Current Rated: 10A
7. Wire Size: ≤1.5mm²
8. Cable OD: 5-10mm
9. Mechanical Life: 3000 mating cycles

Highlights

• Connector Type: inline, male to female
• Connection Type: soldering
• Docking Type: screw threads
• High quality plastic and good electrical properties

How to order ?

1. confirm the connector type, such as male to female, or straight type; inline type or panel type; assembly type or over molding type.

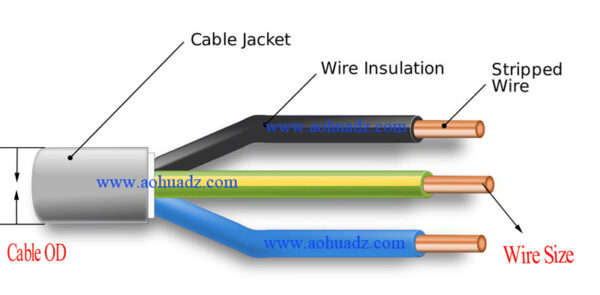

2. provide the details: working ampere, wire size, cable OD;
3. specify the quantity you need.

Our team will get back to you with price within 12 hours.
