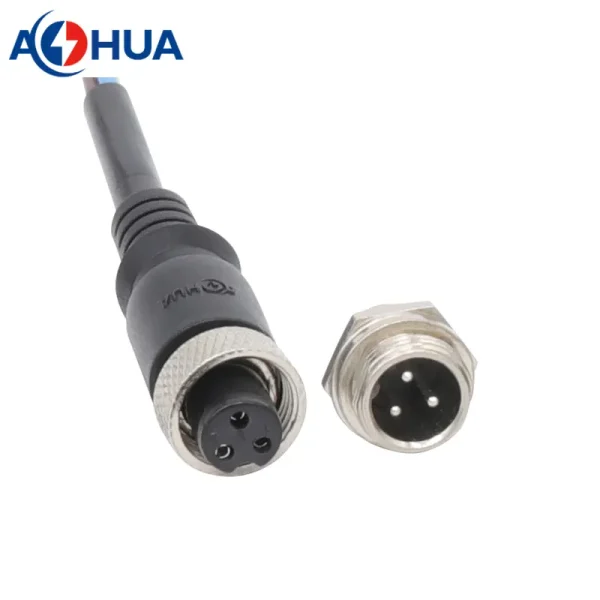

M12 3 pin electrical wire panel type male female waterproof plug
M12 3 pin electrical wire panel type male female waterproof plug

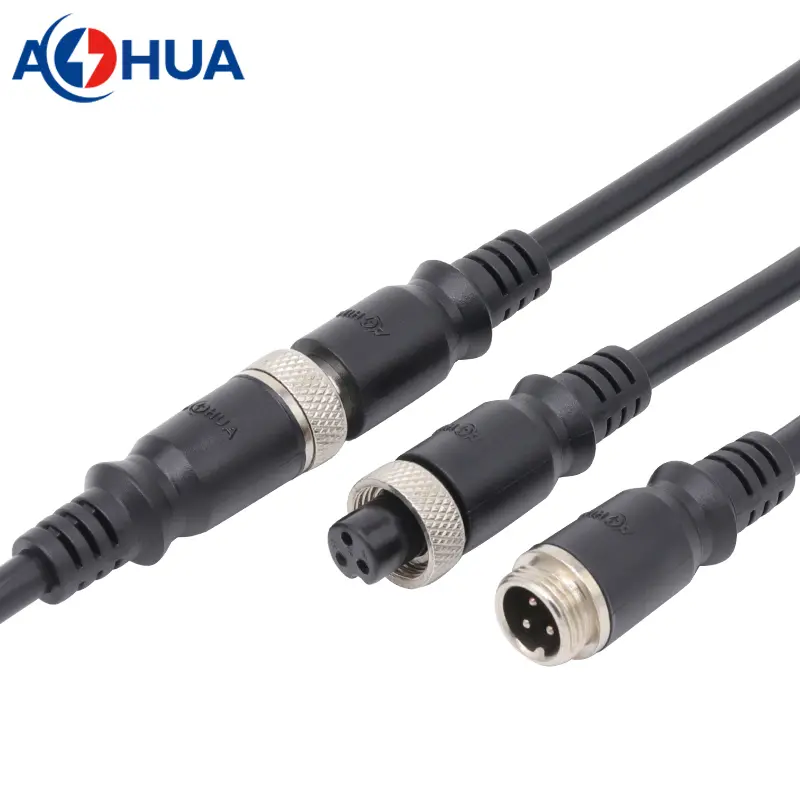

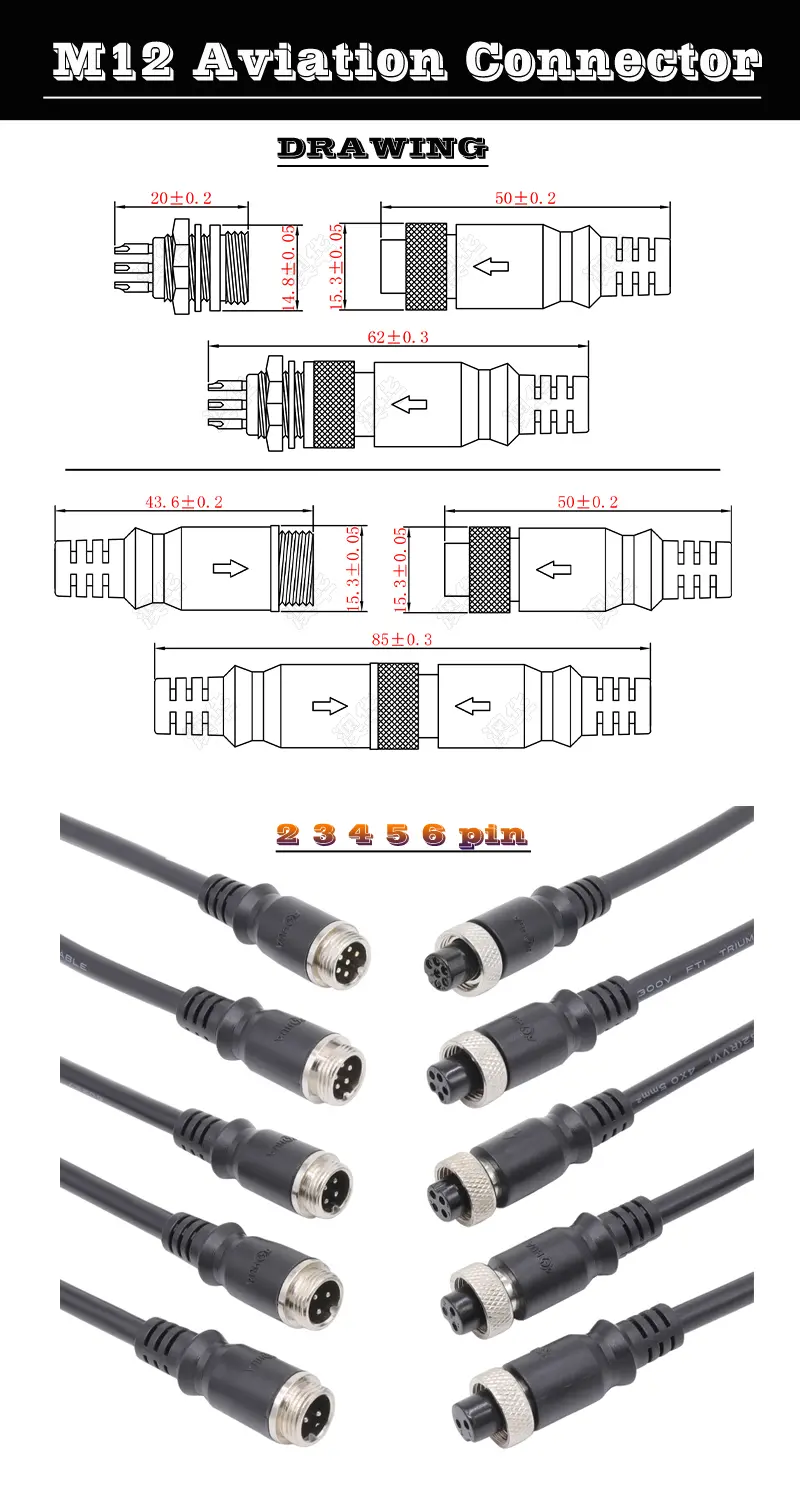

M12 aviation connector
Connector: metal/PVC
Cable: PVC
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PIN | Male Panel | Male Connector | Female Connector |
| 2 | AH-M12-0502FMA01114 | AH-M12-0502FMA01111 | AH-M12-0502MFA01111 |
| 3 | AH-M12-0403FMA01114 | AH-M12-0403FMA01111 | AH-M12-0403MFA01111 |
| 4 | AH-M12-0204FMA01114 | AH-M12-0204FMA01111 | AH-M12-0204MFA01111 |
| 5 | AH-M12-0105FMA01114 | AH-M12-0105FMA01111 | AH-M12-0105MFA01111 |
| 6 | AH-M12-0106FMA01114 | AH-M12-0106FMA01111 | AH-M12-0106MFA01111 |
| PIN | Voltage Rating | Current Rating | Wire Gauge |
| 2 | 110V | 5A | ≤0.75mm² |
| 3 | 110V | 4A | ≤0.5mm² |
| 4 | 110V | 2A | ≤0.3mm² |
| 5 | 60V | 1A | ≤0.2mm² |
| 6 | 60V | 1A | ≤0.2mm² |
