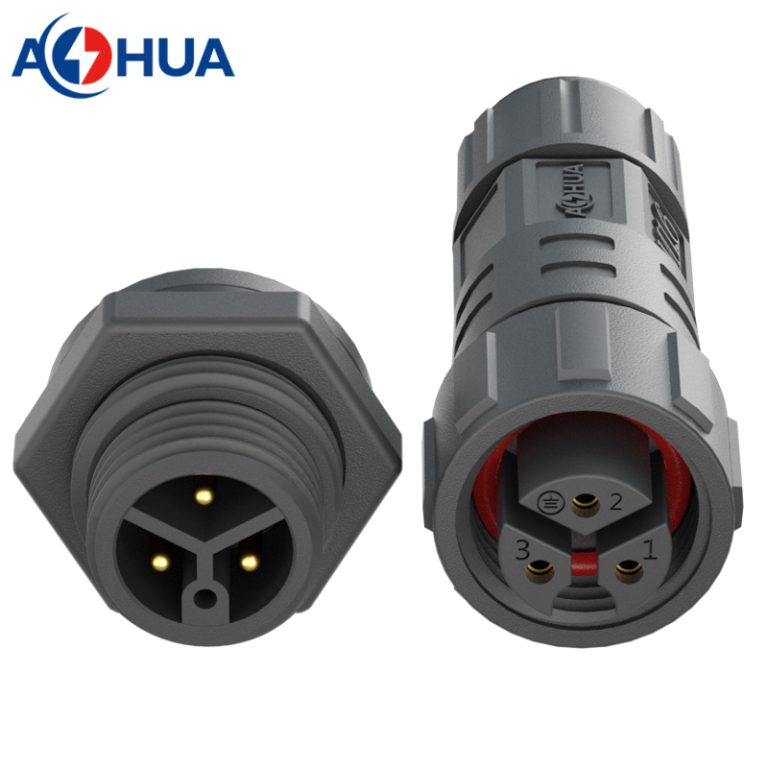

M12 junction box electrical wire male female waterproof panel connector 3pin
M12 junction box electrical wire male female waterproof panel connector 3pin
P/N: M12
Material: nylon
Color: black

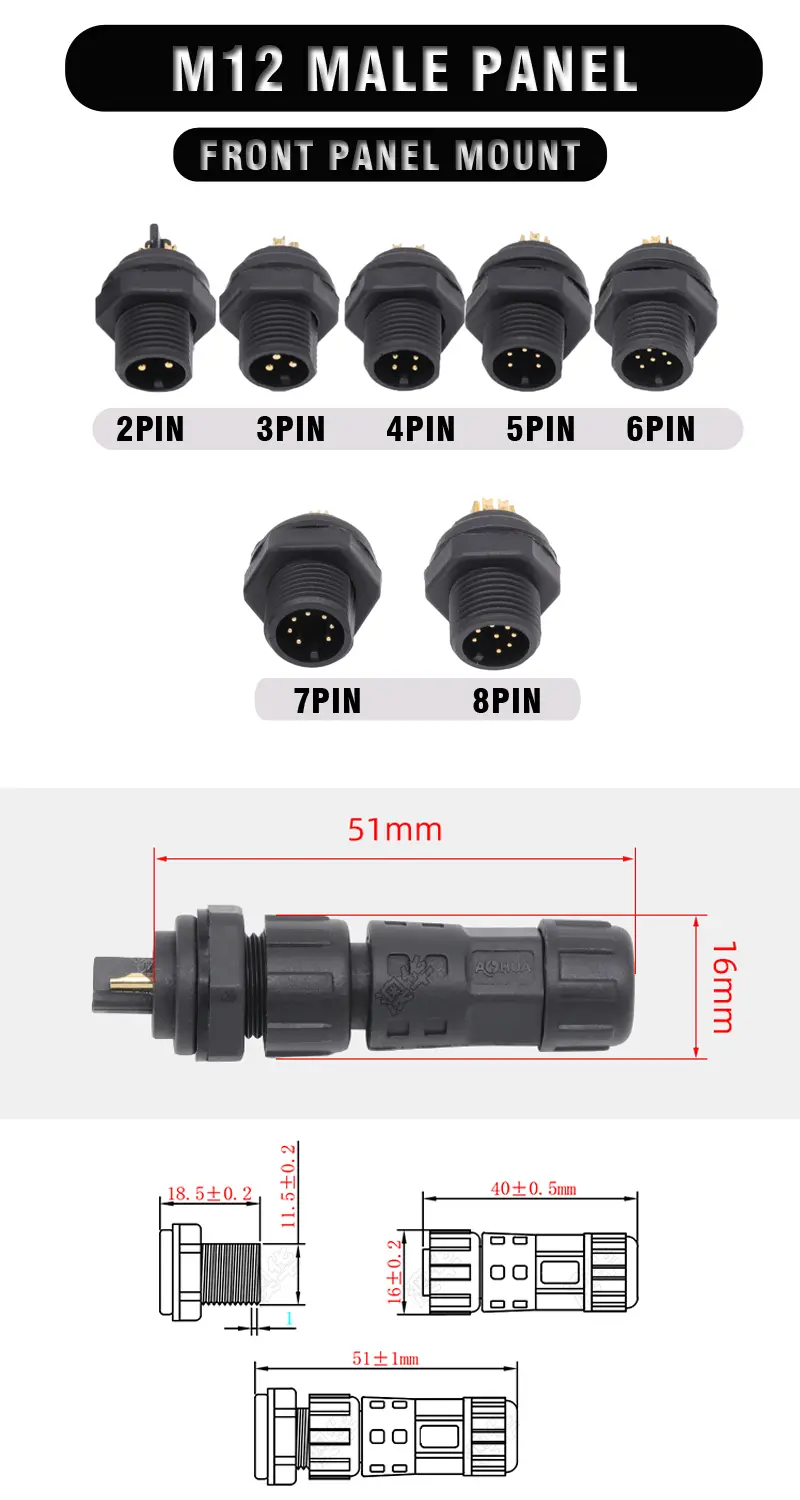

Type: front panel mount / male panel
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Male | Female | Wire Gague | Voltage | Current |
| 2 | AH-M12-0502FMF01112 | AH-M12-0502MFZ01112 | ≤1.0mm² | 300V | 5A |
| 3 | AH-M12-0503FMF01112 | AH-M12-0503MFZ01112 | ≤0.75mm² | 300V | 5A |
| 4 | AH-M12-0404FMF01112 | AH-M12-0404MFZ01112 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M12-0205FMF01112 | AH-M12-0205MFZ01112 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M12-0106FMF01112 | AH-M12-0106MFZ01112 | ≤0.2mm² | 60V | 1A |
| 7 | AH-M12-0107FMF01112 | AH-M12-0107MFZ01112 | ≤0.2mm² | 60V | 1A |
| 8 | AH-M12-0108FMF01112 | AH-M12-0108MFZ01112 | ≤0.2mm² | 60V | 1A |
| Cable OD | 3.0mm-7.0mm |
| Mechanical Life | 3000mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 9*9*3.6/4.1/5.5/6.5/7.5mm |
