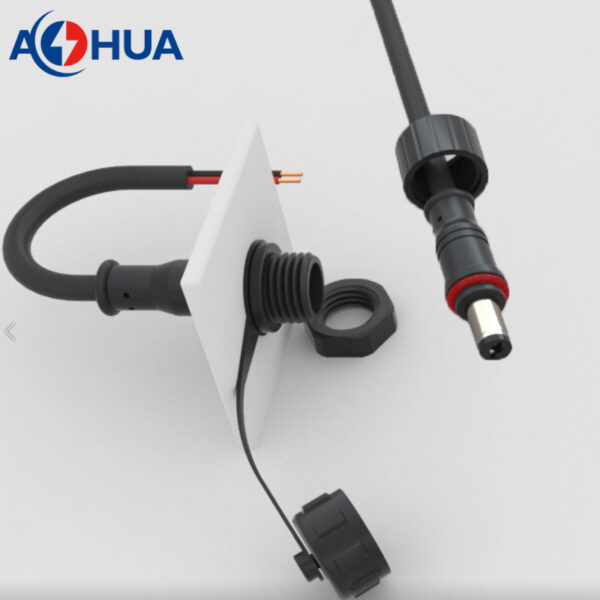

AHUA M12 panel type 5521 5525 male female dc cable waterproof connector
AHUA M12 panel type 5521 5525 male female dc cable waterproof connector
P/N: AH-M12-0402MFD01111/AH-M12-0402FMD01111
Connector: PVC
DC metal: 5.5*2.1 or 5.5*2.5mm
Cable: PVC
Color: Black/White
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
AHUA M12 panel type 5521 5525 male female dc cable waterproof connector
This is injected connector with cable. It can be molded with different wire gauge and different cable length. The DC connector diameter should be 5.5*2.1 or 5.5*2.5.
- material: PVC
- conductor: copper
- cable: PVC
- current rated: 5A
- voltage rated: 60V
- wire gauge: ≤18AWG
- cable OD: 3-6.5mm
How to order?
- confirm the working ampere, such as 4A;
- specify the wire gauge and cable length you need, such as 20AWG, length 300mm each side.
- point out the DC diameter, such as 5.5*2.1 or 5.5*2.5 mm.
- then send all these information to Molly team, she will get back to you with drawing and price within 24 hours.
Parameters
| Contacts | 2pin |
| Part Number | AH-M12-0402MFD01111
AH-M12-0402FMD01111 |
| Voltage Rating | 60V |
| Current Rating | 5A |
| Wire Gauge | ≤0.5mm² |
| Cable OD | 3.5mm-5.5mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| DC Metal Size | 5.5*2.1 or 5.5*2.5 |
