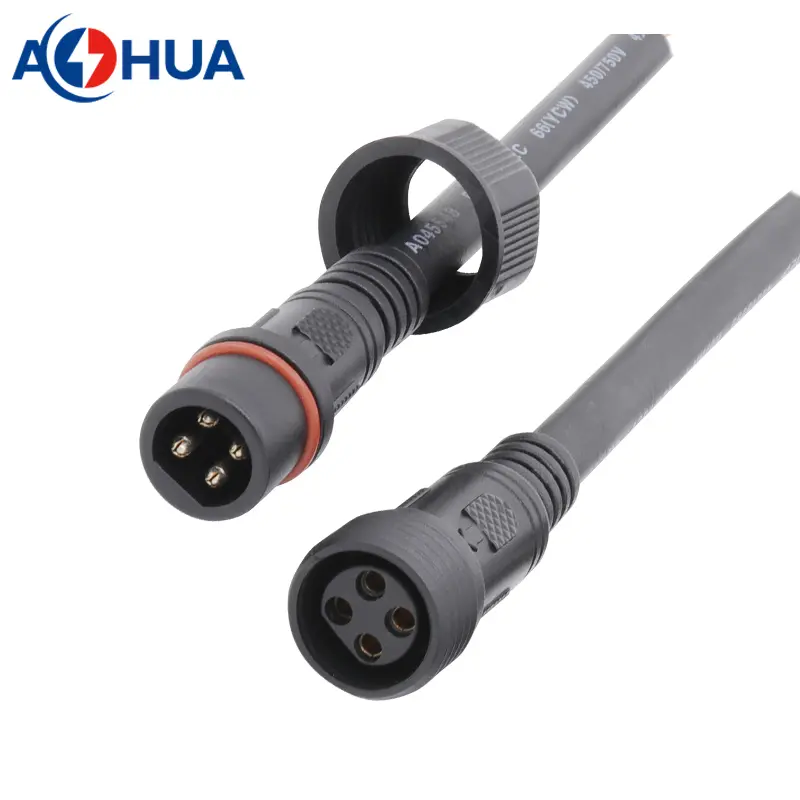

M19-01 power 0.75mm wire male female waterproof 4 pin led strip connector cable

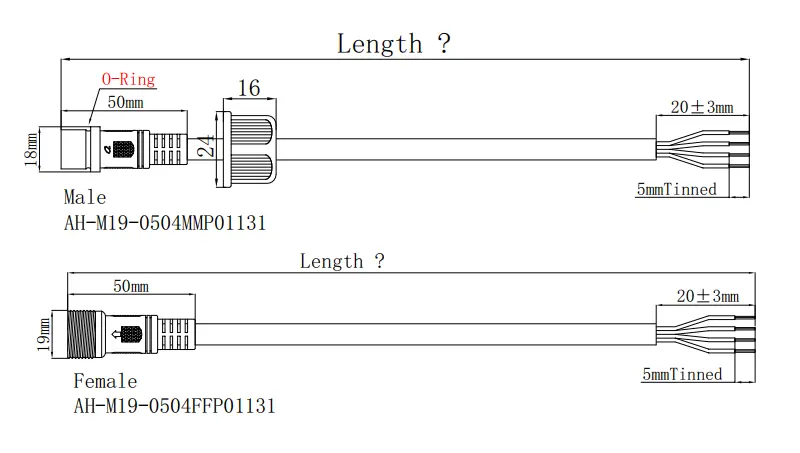

4 pin led strip connector cable is mainly used to long led strip lighting or other outdoor garden lighting device. This is M19 threads connector, which is PVC integrated injection molding with cable. The hardware is hollow needle, whic is the size φ2.3mm, so that the connector carry power up to 5A/250V.

The connector is PVC material, so it is perfect mating that the connector injection molded with PVC. In general, we recommend PVC for this connector to customers. Surely, PU cable or rubber are also for choices. This M19 connector, there is dust cap for the female connector to choose from.

For this led strip connector cable, there are some general wire gauges for choices, 4*0.75mm², 4*0.5mm², 4*18AWG, 4*20AWG. You can choose the wire gauge according to the power supply, and confirm the cable length that you need.

This M19 connector, except 4 pin, there are also 2 pin, 3 pin, 5 pin, 6 pin, 7 pin, and 8 pin for choosing from. Among of 5, 6, 7 and 8 pin are produced rarely, that is because the cost of multi-core is more expensive than nylon connector, and the rejection rate is higher than nylon connector. So that if want to order more than 4 pin connector cable, we would like to recommend nylon connector for you, such as M12, M16, even M20. More details, welcome to contact our sales.

In outdoor led lighting power wire connection, in order to the cost of wire solution, many clients would like to order PVC injection molding connectors. Here we would like introduce our M seriese PVC injection molding connector cable. For this series connector cable, the connector is full PVC injection molding, and the cable is PVC material. For relatively smaller wire gauges, there are M6, M10, M12 connector cables; and for relatively bigger wire gauges, there are M14, M15, M16, M19 connector cables; and for other larger wire gauges, there are M21, M23, and M28 connector cables for choices.

Whether it is which type connectors, once you confirm the connector cable types, you can tell our sales with wire gauge and cable length, our team will recommend the right waterproof connector cables for you.
