M19 distributor 1 to 2 led street module 2 pin waterproof male female cable connector
M19 distributor 1 to 2 led street module 2 pin waterproof male female cable connector
AH-M19-1002MFO
Contacts: 2 pin
Material: nylon
Voltage rating: 300V
Current rating: 10A
Wire gage ≤1.5mm²
Sockets: 2 outs, 3 outs, 4 outs, 5 outs, 6 outs
Cable material: PVC or rubber cable
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M19 distributor 1 to 2 led street module 2 pin waterproof male female cable connector

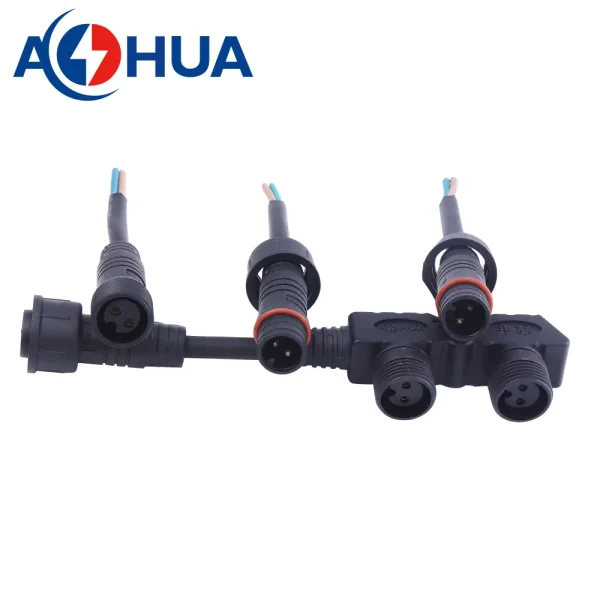

M19 distributor is designed based on M19 male female waterproof connector, which is the different appearance to M15 distributor, but the electric parameter is mostly the same. The M15 distributor is with blue screw nut, but the M19 is black screw nut which is with all black material. Customers can choose different products according to their favorite color.

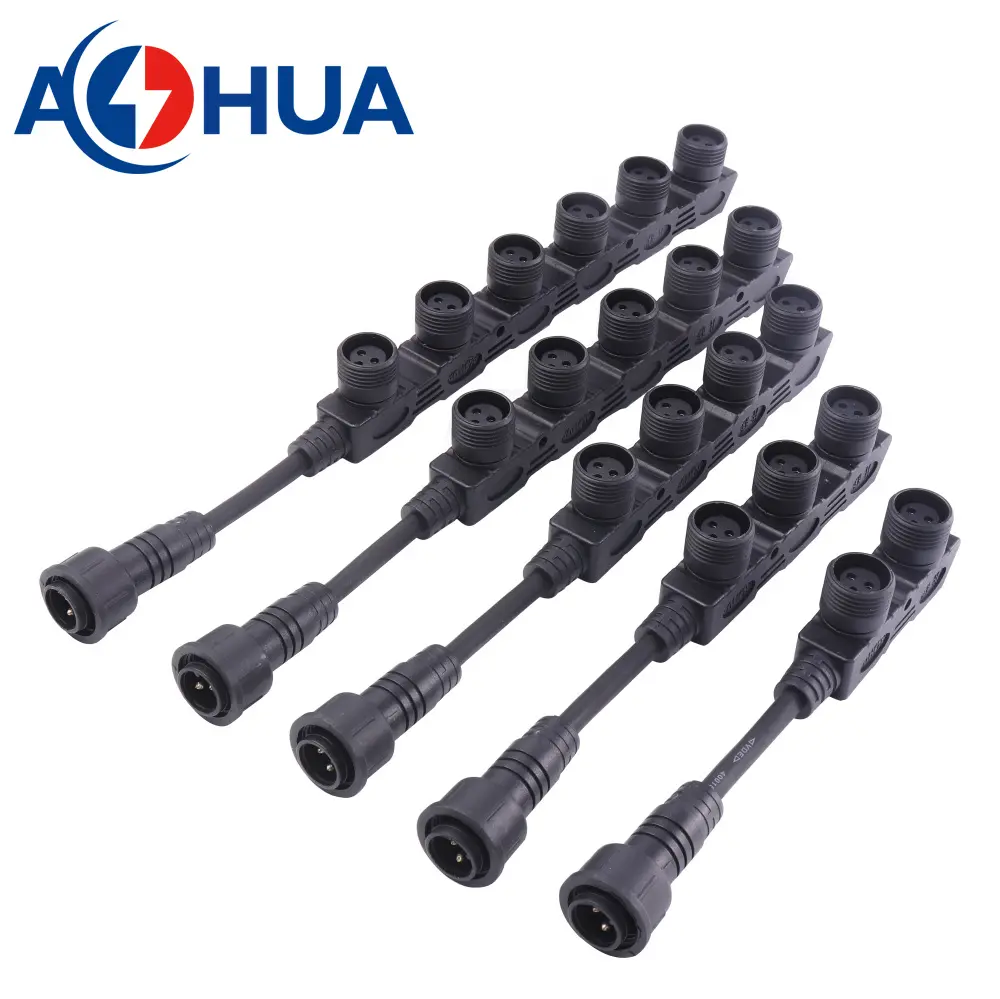

M19 distributor is mainly used in street light led module. There are 2 to 6 sockets to choosing for different quantity of led modules.
Parallel:
| Socket | Part Number |
| 2 | AH-M19-1022MFO2P112 |
| 3 | AH-M19-1022MFO3P112 |
| 4 | AH-M19-1022MFO4P112 |
| 5 | AH-M19-1022MFO5P112 |
| 6 | AH-M19-1022MFO6P112 |
Series:
| Socket | Part Number |
| 2 | AH-M19-1022MFO2S112 |
| 3 | AH-M19-1022MFO3S112 |
| 4 | AH-M19-1022MFO4S112 |
| 5 | AH-M19-1022MFO5S112 |
| 6 | AH-M19-1022MFO6S112 |
Parameter:
| Voltage Rating | 300V |
| Current Rating | 10A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 6.8mm-8.3mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
