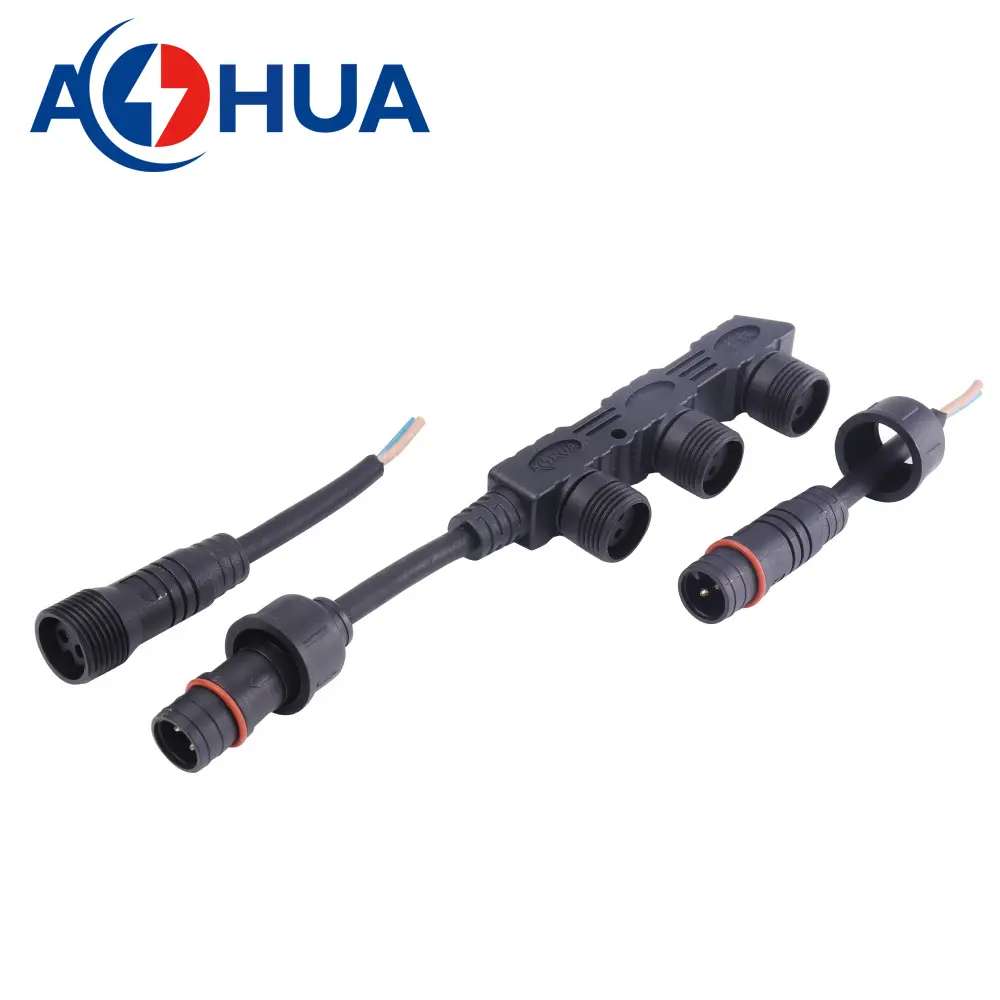

M19 distributor 1 to 3 LED module cable solution F type waterproof wire connector
M19 distributor 1 to 3 LED module cable solution F type waterproof wire connector
AH-M19-1002MFO
Contacts: 2 pin
Material: nylon
Voltage rating: 300V
Current rating: 10A
Wire gage ≤1.5mm²
Sockets: 2 outs, 3 outs, 4 outs, 5 outs, 6 outs
Cable material: PVC or rubber cable
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M19 distributor 1 to 3 LED module cable solution F type waterproof wire connector

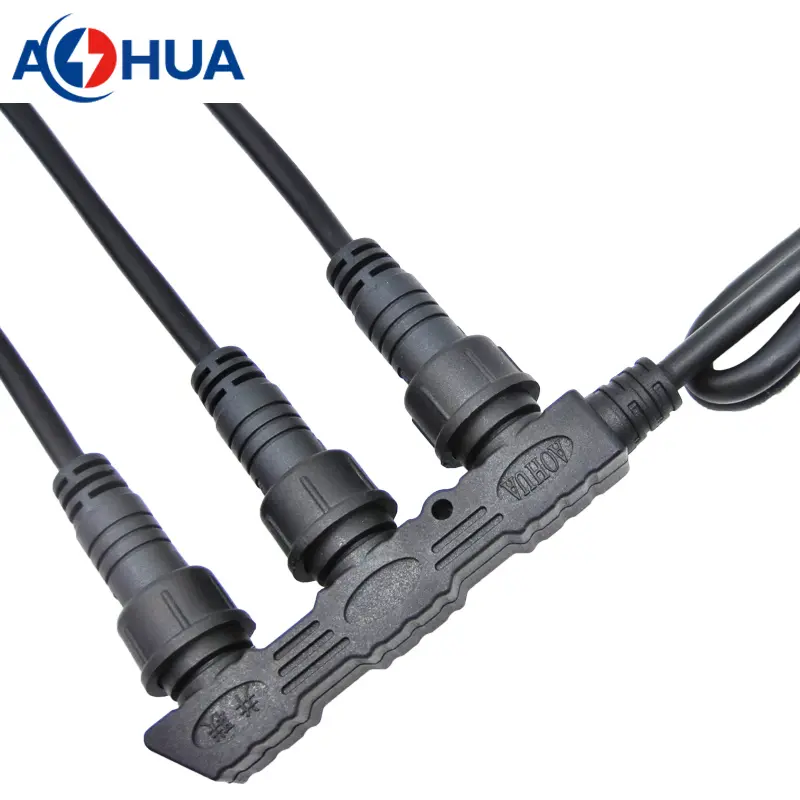

M19 1 to 3 distributor is designed with 3 sockets.
Parallel:
| 3 | AH-M19-1022MFO3P112 |
Series:
| 3 | AH-M19-1022MFO3S112 |
Parameter:
| Voltage Rating | 300V |
| Current Rating | 10A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 6.8mm-8.3mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
