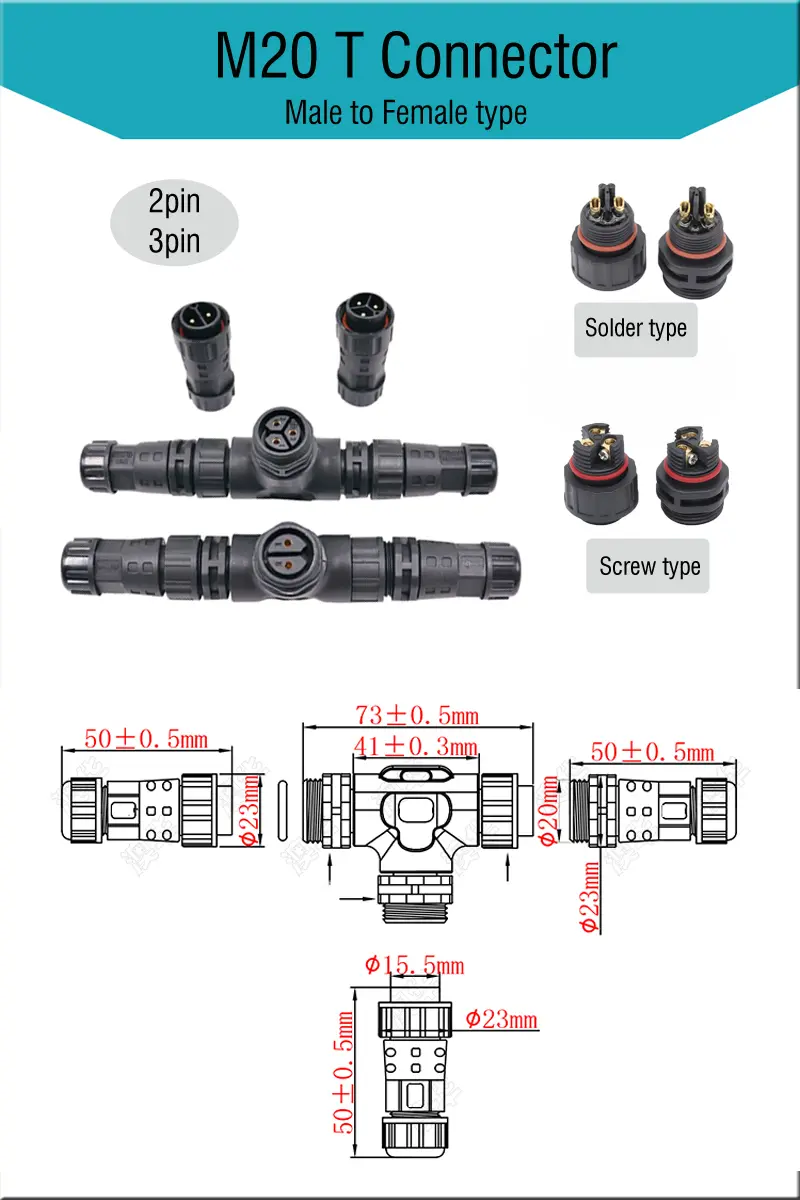

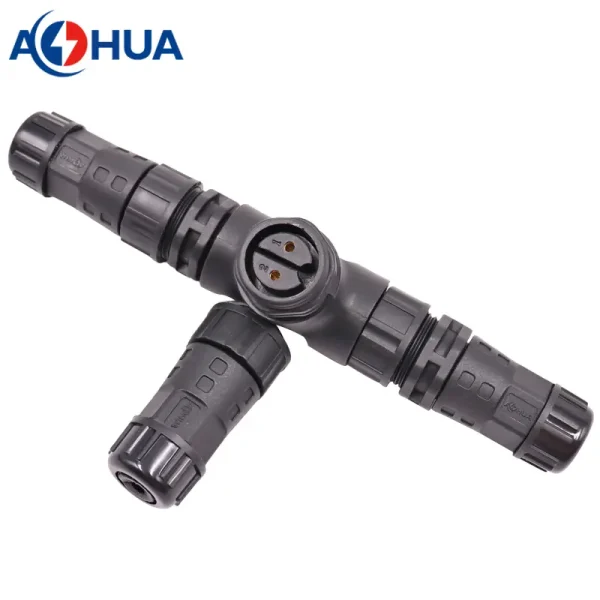

M20 2pin power wire male female plug/unplug T connector
M20 2pin power wire male female plug/unplug T connector
P/N: AH-M20-1502T01112-P/AH-M20-1502T01122-P
Contacts: 2pin
Material: Nylon
Color: Black
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M20-1502T01112-P(solder) | ≤1.5mm² | 300V | 15A |
| 2 | AH-M20-1502T01122-P(screw) | ≤1.5mm² | 300V | 15A |
| 3 | AH-M20-1503T01112-P(solder) | ≤1.5mm² | 300V | 15A |
| 3 | AH-M20-1503T01122-P(screw) | ≤1.5mm² | 300V | 15A |
| Cable OD | 6mm-10mm |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
