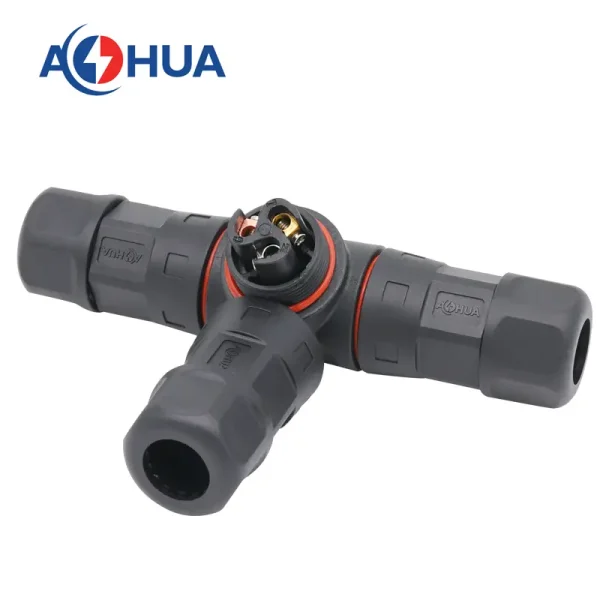

M23 3 pin Electric power wire splitter type waterproof T connector
M23 3 pin Electric power wire splitter type waterproof T connector
P/N: AH-M23-3503T01122
Material: nylon
Color: black
Contacts: 3pin
Certificate: CE/ROHS/UL/SAA
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

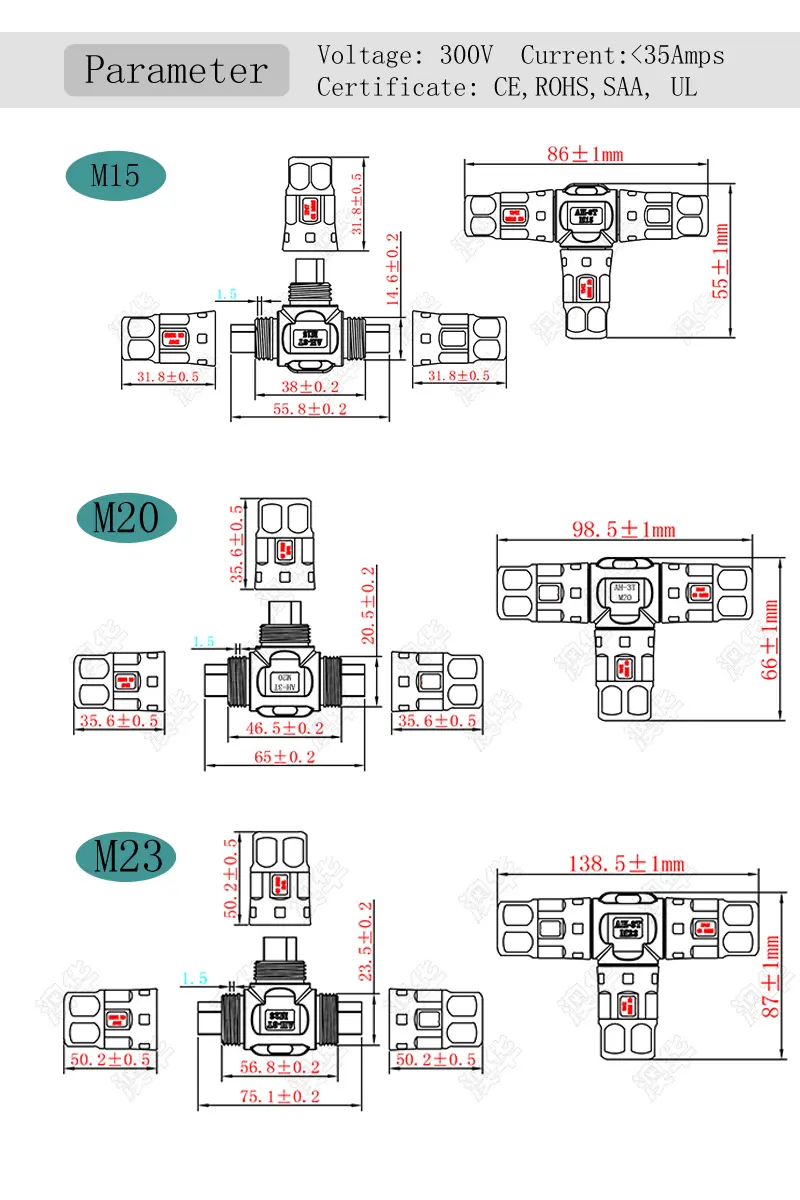

| Items | PINs | Part Number | Wire Gague | Voltage | Current | Cable OD |
| M15 | 2 | AH-M15-1002Z01122 | ≤0.5mm² | 300V | 10A | 3.0-7.0mm |
| M20 | 2 | AH-M20-2002T01122 | ≤1.5mm² | 300V | 20A | 5.0-10mm |
| M20 | 3 | AH-M20-2003T01122 | ≤1.5mm² | 300V | 20A | 5.0-10mm |
| M20 | 4 | AH-M20-1004T01122 | ≤1.0mm² | 300V | 10A | 5.0-10mm |
| M23 | 2 | AH-M23-3502T01122 | ≤4.0mm² | 300V | 35A | 9.0-15mm |
| M23 | 3 | AH-M23-3503T01122 | ≤4.0mm² | 300V | 35A | 9.0-15mm |
| M23 | 4 | AH-M23-2004T01122 | ≤2.5mm² | 300V | 20A | 9.0-15mm |
