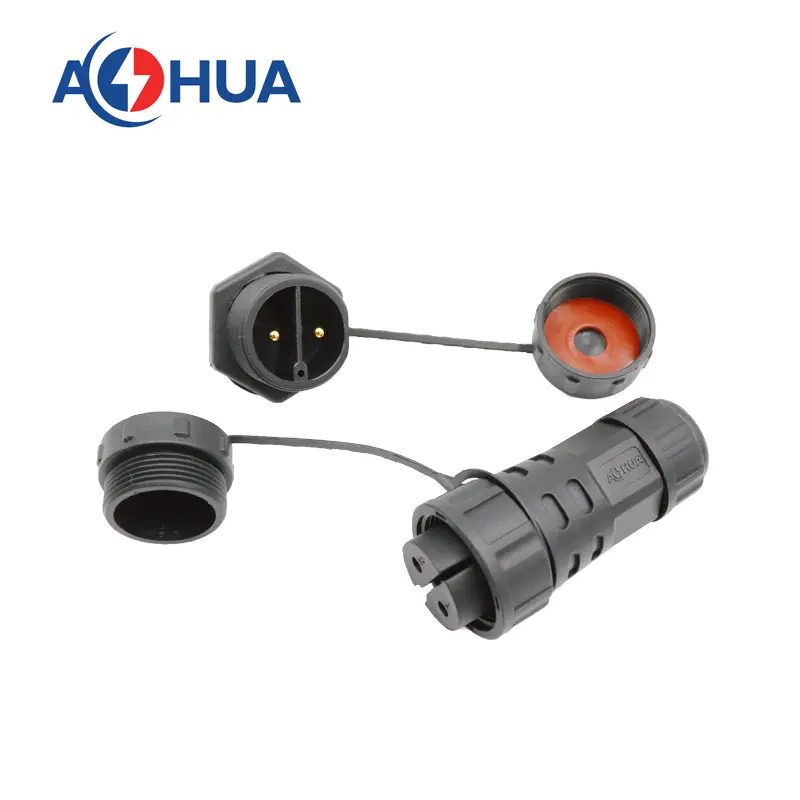

M25 2pin feeding control system waterproof male female panle connector
M25 2pin feeding control system waterproof male female panle connector
P/N: AH-M25-2502FMF01122/AH-M25-2502MFZ01122
Color: black
Contacts: 2pin
Material: nylon PA66
Type: front male panel mount
Certificate: CE/ROHS/UL/TUV
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

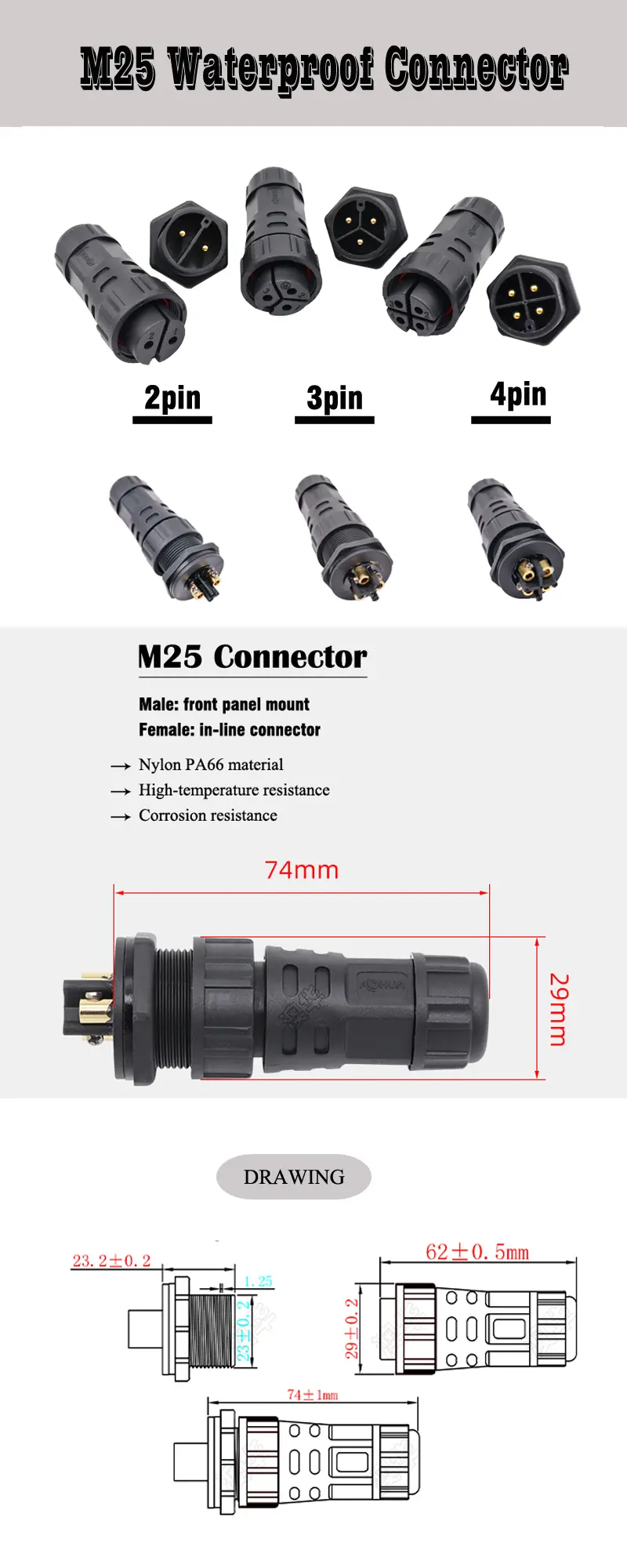

| PINs | Male | Female | Wire Gague | Voltage | Current |
| 2 | AH-M25-2502FMF01122 | AH-M25-2502MFZ01122 | ≤2.5mm² | 300V | 25A |
| 3 | AH-M25-2503FMF01122 | AH-M25-2503MFZ01122 | ≤2.5mm² | 300V | 25A |
| 4 | AH-M25-1204FMF01122 | AH-M25-1204MFZ01122 | ≤1.5mm² | 250V | 12A |
| Cable OD | 6.0mm-12mm |
| Mechanical Life | 3000mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 15.6*13*/9/10/11/12/13mm |
