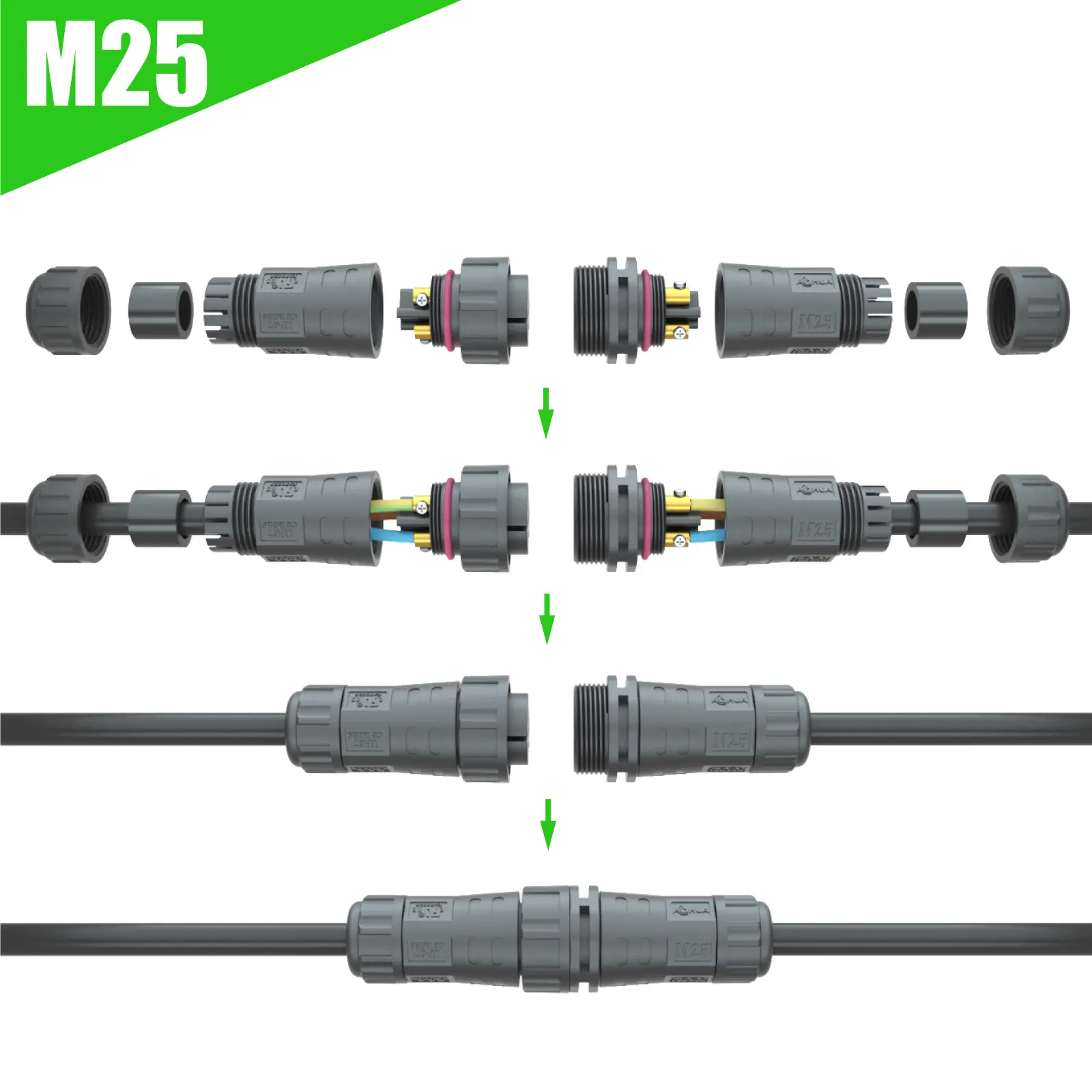

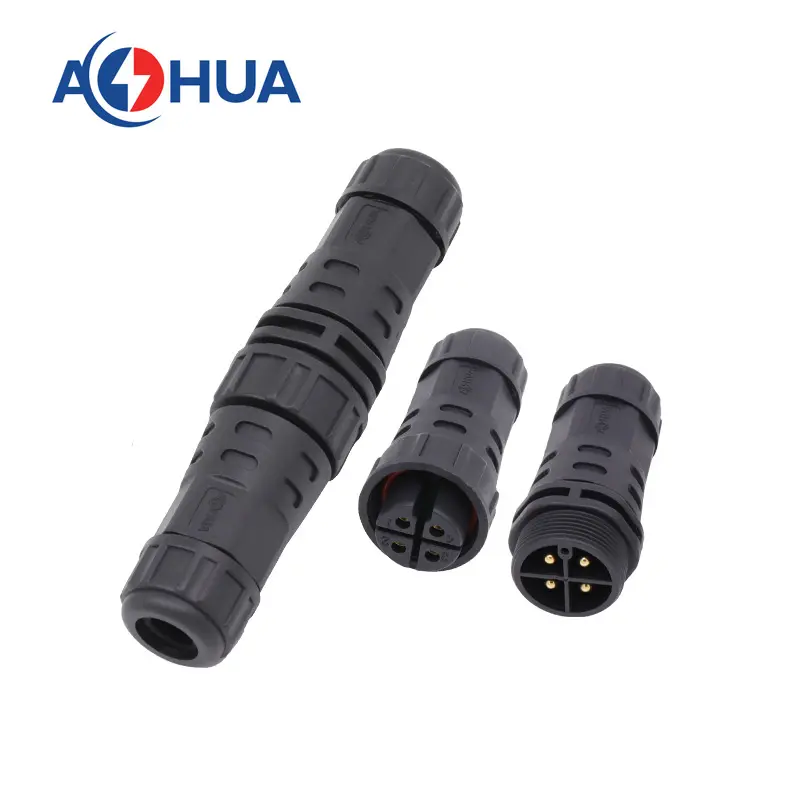

M25 4 pin screw fixing type 12A cable joint assembly IP68 waterproof connector
M25 4 pin screw fixing type 12A cable joint assembly IP68 waterproof connector
P/N: AH-M25-1204FMZ01122/AH-M25-1204MFZ01122
Material: nylon PA66
Color: black
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

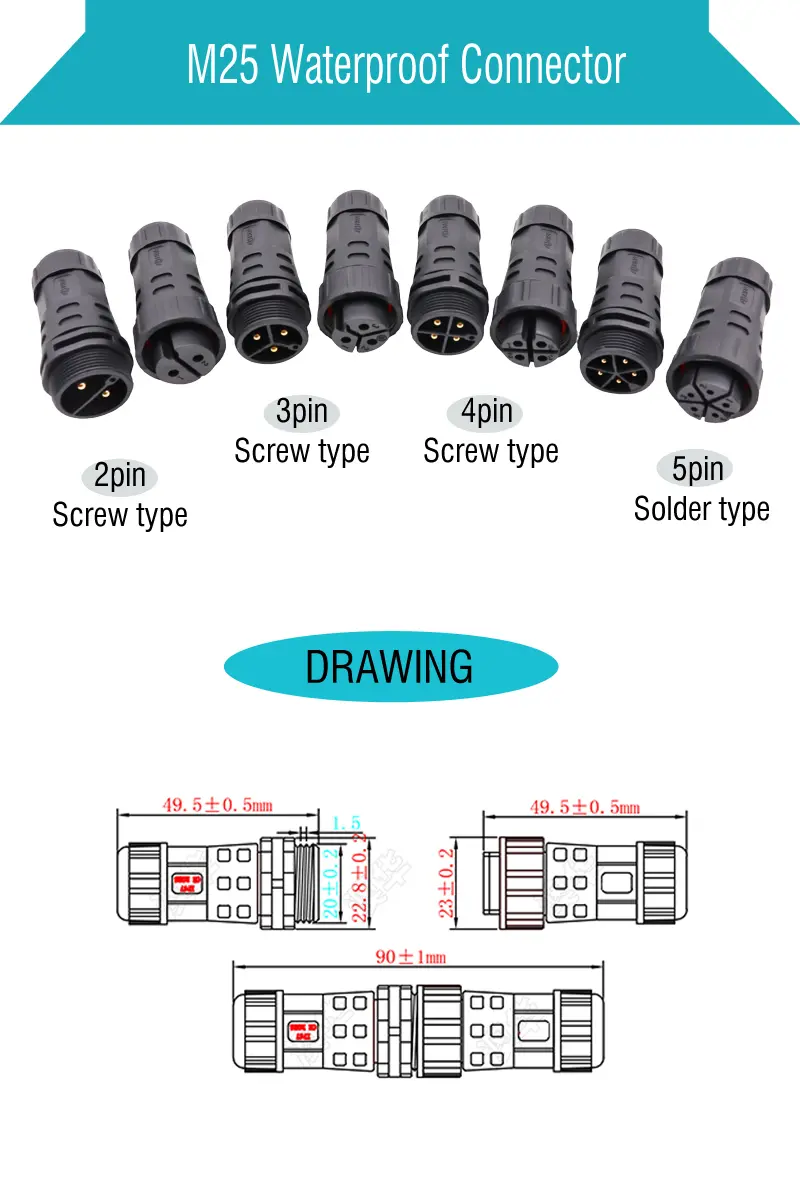

| PIN | Male | Female | Wire Gauge | Voltage | Current |
| 2 | AH-M25-2502FMZ01122 | AH-M25-2502MFZ01122 | ≤2.5mm² | 300V | 25A |
| 3 | AH-M25-2503FMZ01122 | AH-M25-2503MFZ01122 | ≤2.5mm² | 300V | 25A |
| 4 | AH-M25-1204FMZ01122 | AH-M25-1204MFZ01122 | ≤1.5mm² | 250V | 12A |
| 5 | AH-M25-0505FMZ01112 | AH-M25-0505MFZ01112 | ≤0.75mm² | 250V | 5A |
| Cable OD | 6mm-12mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 15.6*13*7/9/10/11/12/13mm |
