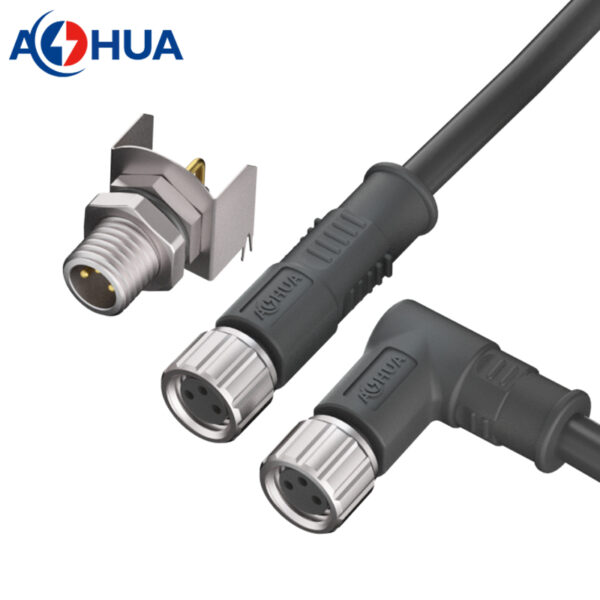

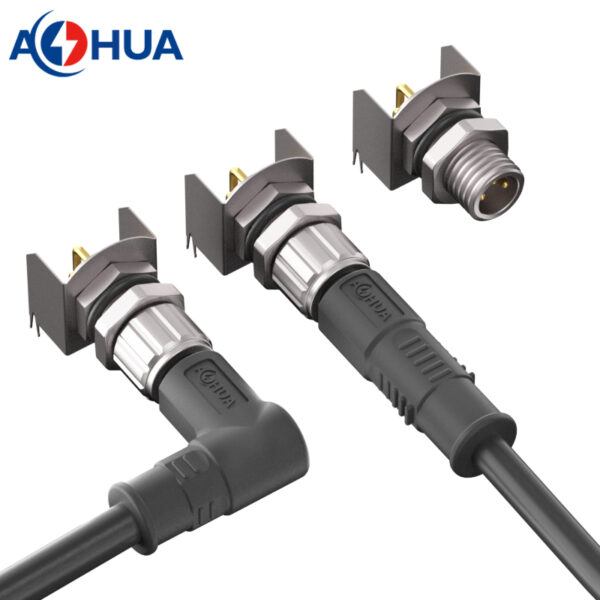

M8 Right Angle Elbow Type 22 24 AWG Signal Wire PCB Mount Connector Customized

This is the customized M8 PCB mount connector solution. The male panel plug should be customized as your PCB designing. And the female can be inline or elbow type that is molded with cable.

1. Model: M08-03
2. Contacts: 3pin
3. Rated Voltage: 110V
4. Rated Current: 4A
5. Wire Gauge: 20 22 24AWG
6. Cable OD: 3-5mm
7. Cable Length: customized as required.

Hightlights

1. Metal mechanism structure, and metal thread locking.
2. Anti-vibration locking designing.
3. Male to female, easy for connect and disconnect.
4. IP65 Waterprorof Grades.
5. PCB plug for mounting.
6. Panel Mount: hex nut in front of panel box.
7. Accept ODM & OEM, customize your required solution.

How to order?

1. conform the connector you need.
2. specify the wire gauge and cable length you need
3. specify the details you want to customize, such as stripped, tinned, or customized the panel plug on your PCB size.
4. it would be much appreciated if you can provide the 3D files of PCB, then we can design the panel plug as your PCB.

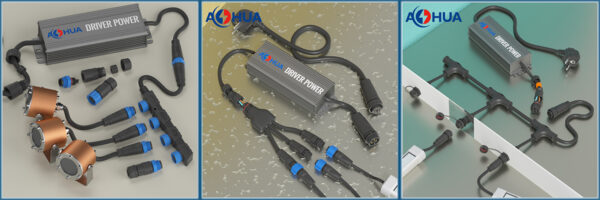

In AOHUA, customization is our culture, we can customize most types of cable wire solutions for LED lighting power and signal. Don’t hesitate to contact me if you have any request for cable wire harness.
