Medical Electronic Wiring Signal Data Flat Round Cable Male Female M12 Aviation Connector 4pin
Medical Electronic Wiring Signal Data Flat Round Cable Male Female M12 Aviation Connector 4pin
- Model: M12
- Connector Type: aviation
- Contacts: 4pin
- Customization type
- Not waterproof type
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:

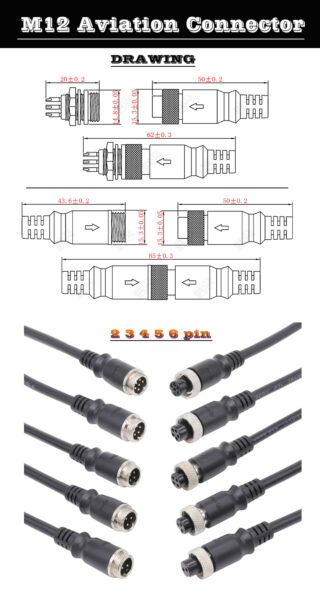

Medical Electronic Wiring Signal Data Flat Round Cable Male Female M12 Aviation Connector 4pin

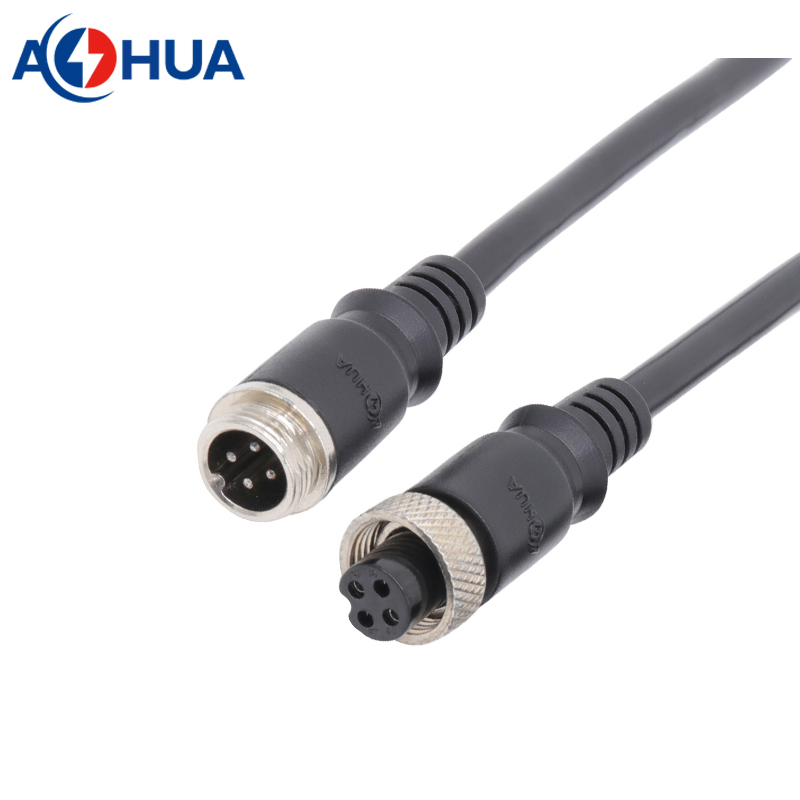

This is aviation connector 4pin molded with cable type.
Part Number
- Male: AH-M12-0204FMA01111
- Female: AH-M12-0204MFA01111
- Male Panel: AH-M12-0204FMA01114
Material
- Plastic Material: PVC
- Conductor Material: solid copper pin
- Screw Nut: Aluminum
- Cable Material: PVC, rubber, TPU, PU and so on
Specification
- Model: M12
- Rated Voltage: 110V
- Rated Current: 2A
- Wire Gauge: 22AWG, 24AWG
- Cable OD: 2.5-5mm
- Cable Length: customized as required
- Mechanical Life: 1500 mating cycles
- Operating Temperature: -20℃~+105℃
- Waterproof: No
How to order
- would be much appreciated if you can provide a simple drawing of what cable solution you need; it will be easy for us to understand what you need.
- specify the working ampere, wire gauge, cable length or other customize details.
- confirm the connector type, such as inline connector or panel type connector; connector with open wire or extension cable with connectors on both side.
- we can accept different customization, please specify details and then send all these requirement to our sales for getting drawing and price for confirmation.
