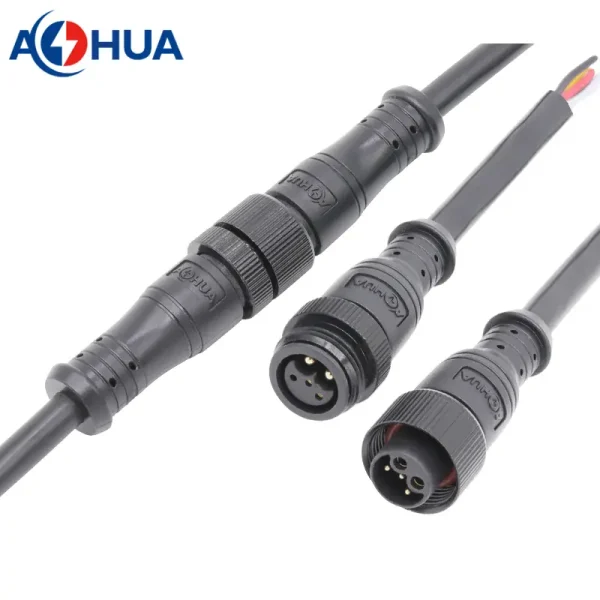

Medical facility metal M16 2+3pin waterproof male female wire connector

Medical facility metal M16 2+3pin waterproof male female wire connector

P/N: AH-M16-0623FMM01113/AH-M16-0623MFM01113
Material: metal
Cable: PVC
Color: black /white
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

PINs	Part Number	Wire Gague	Voltage	Current
2	AH-M16-1202FMM01113/AH-M16-1202MFM01113	≤1.5mm²	250V	12A
3	AH-M16-0603FMM01113/AH-M16-0603MFM01113	≤1.0mm²	250V	6A
4	AH-M16-0504FMM01113/AH-M16-0504MFM01113	≤0.75mm²	250V	5A
5	AH-M16-0405FMM01113/AH-M16-0405MFM01113	≤0.5mm²	110V	4A
6	AH-M16-0406FMM01113/AH-M16-0406FMM01113	≤0.5mm²	110V	4A
2+2	AH-M16-0622FMM01113/AH-M16-0622MFM01113	≤1.0mm² ≤0.3mm²	60V	6+2A
2+3	AH-M16-0623FMM01113/AH-M16-0623MFM01113	≤1.0mm² ≤0.3mm²	60V	6+2A
2+4	AH-M16-0624FMM01113/AH-M16-0624MFM01113	≤1.0mm² ≤0.3mm²	60V	6+2A
