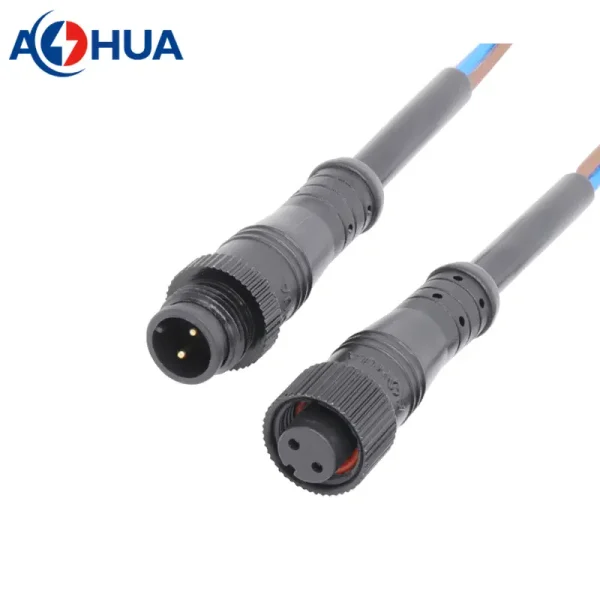

Metal type M12 2pin male female wire connector

Metal type M12 2pin male female wire connector

P/N: AH-M12-0602FMM01113/AH-M12-0602MFM01113
Material: metal
Cable: PVC
Color: black /white
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

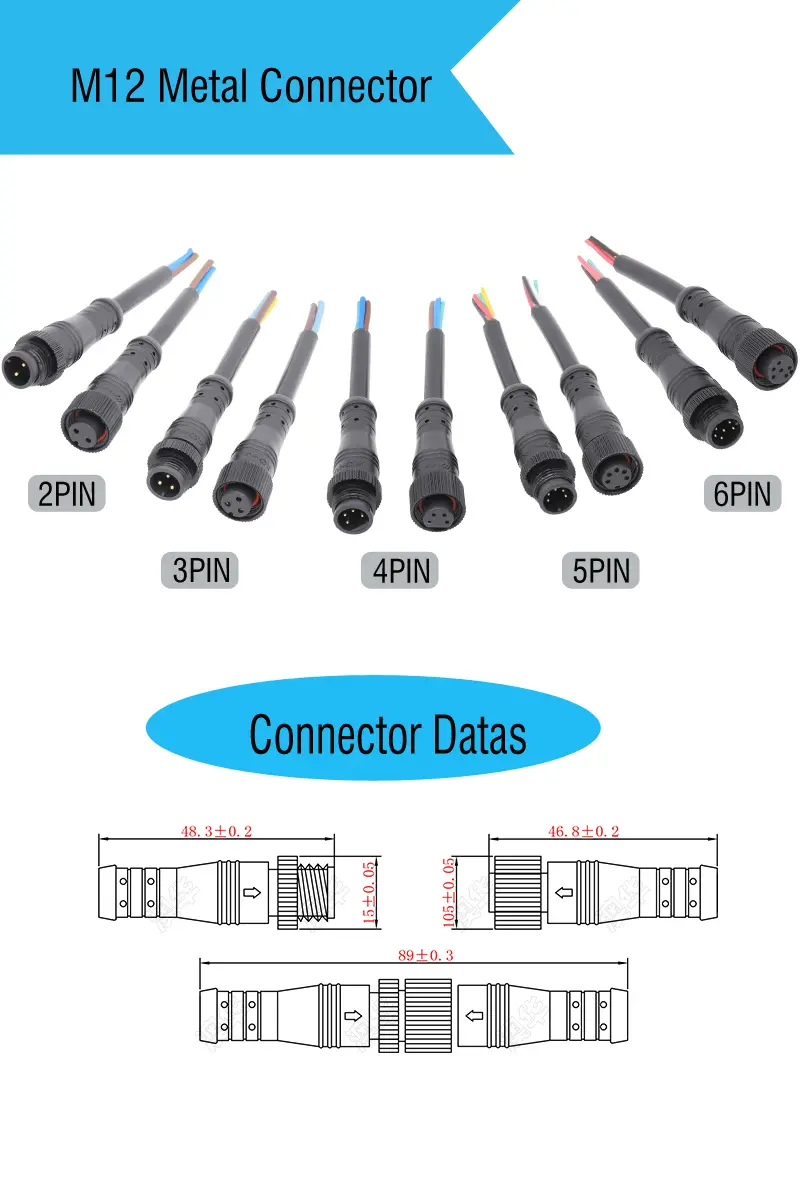

M12 Metal Waterproof Connector

PINs	Part Number	Wire Gague	Voltage	Current
2	AH-M12-0602FMM01113/AH-M12-0602MFM01113	≤1.0mm²	110V	6A
3	AH-M12-0503FMM01113/AH-M12-0503MFM01113	≤0.75mm²	110V	5A
4	AH-M12-0404FMM01113/AH-M12-0404MFM01113	≤0.5mm²	110V	4A
5	AH-M12-0205FMM01113/AH-M12-0205MFM01113	≤0.3mm²	60V	2A
6	AH-M12-0206FMM01113/AH-M12-0206MFM01113	≤0.3mm²	60V	2A
8	AH-M12-0108FMM01113/AH-M12-0108MFM01113	≤0.2mm²	60V	1A
