Multiple Wire Harness Y Splitter Cable Male Female Waterproof Extension Connector 2pin 3pin 4pin

This is the OEM OEM custom made factory AOHUA in Shenzhen, which is the source manufacturer of producing cable wires and waterproof connectors with more than 19 years.

This article mainly introduce the Y type splitter customized wire harness. There are many sizes of splitter for customizing wire harness.

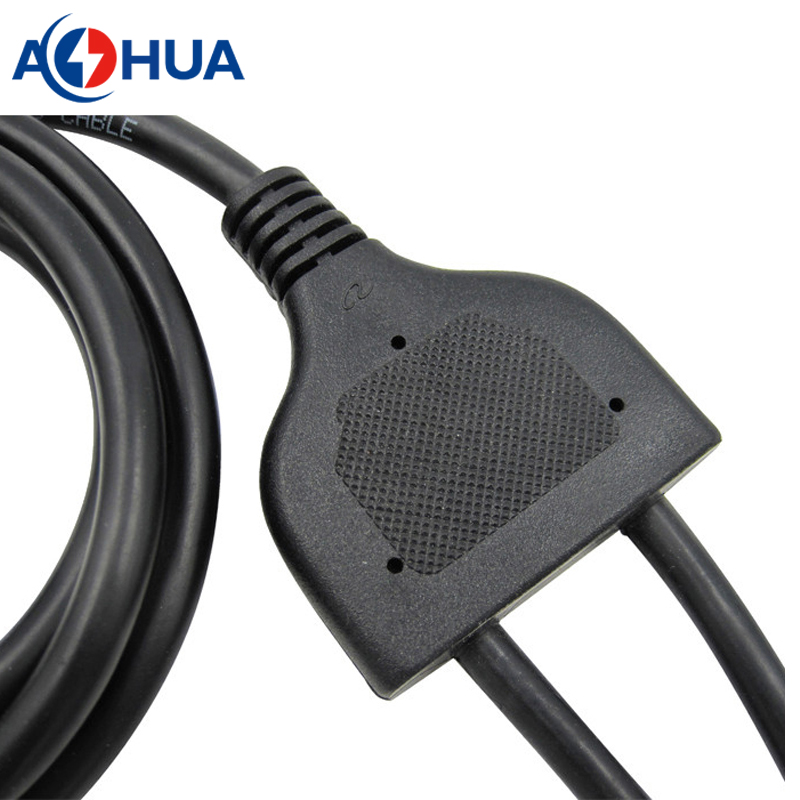

What is the wire harness Y splitter cable? Here the wire harness should be one input and multiple. Such as this splitter, can be design one input and multiple branch cables. And it can be designed in multiple pins, includes from 2pin to 8pin and even more.

• Material

1. Plastic: can be PVC or nylon PA66.
2. Conductor: copper
3. Splitter inner structure: PCB.
4. Cable: PVC, rubber, TPU, PU or specified.

• Highlights

1. Splitter inner is PCB setting, should be more reliable and strong for circuit safety.
2. Can be designed as you need, includes solution, wiring diagram.
3. Can be customized includes: LOGO, new connector, specified cable, and so on.

• Specification

1. Model: Y splitter cable
2. Contacts: 2pin to 8pin
3. Voltage: <300V
4. Current: <35A
5. Wire Gauge: <6.0mm²
6. Cable OD: <15mm

How to customize your own wire harness Y splitter cable?

1. It should be great appreciated if you can provide a simple drawing for what you need.
2. We would like to know the working, wire gauge, cable length and more information about your solutions.
3. Please confirm the connector type, and detail requirements, then send all these information to Molly team, she will discuss with her team about the whole solution, and then get back to you with CAD drawing or 3D files.

What products you can choose from AOHUA

There are many series products in AOHUA, mainly includes assembly type and molding type connectors. According to different connections types, assembly connector includes solder connectors and screw connectors. According to the docking types, assembly and molding connectors also can be separated into screw threads type and self locking type.

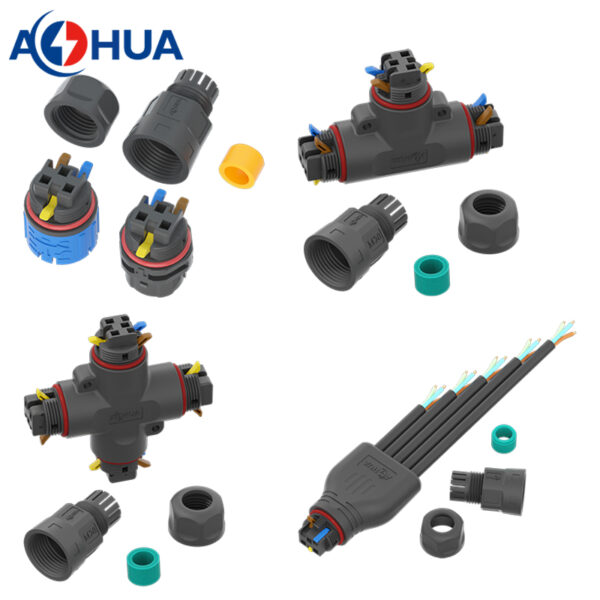

And we also have many series of splitters for designing wire harness solution. Includes T type, Y type, F type and some  assembly distributors, waterproof junction box.
