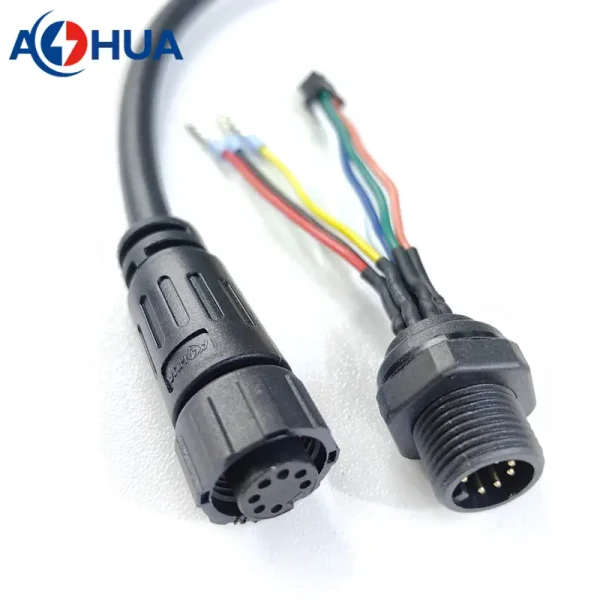

PCB Control Box Panel Mount Male Female 7 Pin 24AWG Wire Waterproof Connector For Watering System

This is M12 thread wire waterproof connectors with water protection. Its mainly use to the junction box or control box.

• Material

1. plastic: nylon PA66
2. metal: gilded brass
3. cable: PVC/PUR

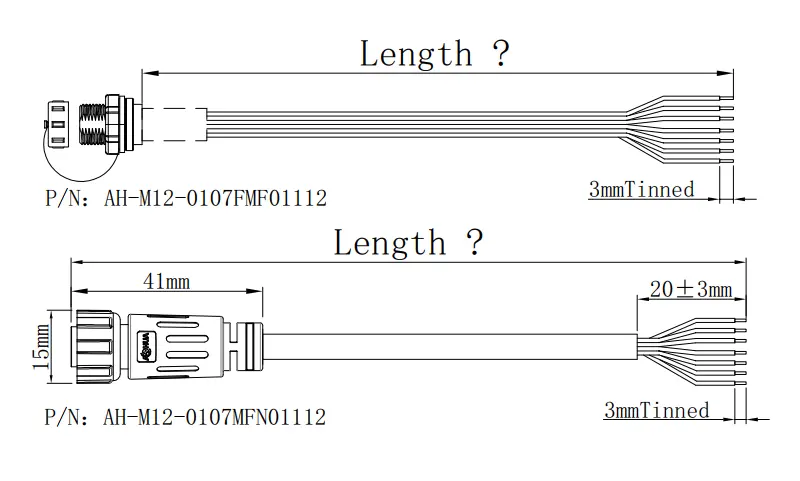

• Part Number

1. Male: AH-M12-0107FMF01112
2. Female: AH-M12-0107MFN01112

• How to order this wire waterproof connector?

Choosing a right connector for your devices is according to the wire details once you confirm the connector type. Firstly, you need to confirm the connector type, for example, specify the in-line connector or panel connector; male panel or female connector; front panel mount or rear panel mount. Secondly, confirm the wire details:

1.  what is the wire gauge and cable length you need?
2.  cable type, single core electrical wire or round cable? Such as 1015 wire 22AWG or round 7*22AWG cable.
3.  whether do the wire processing on connector?

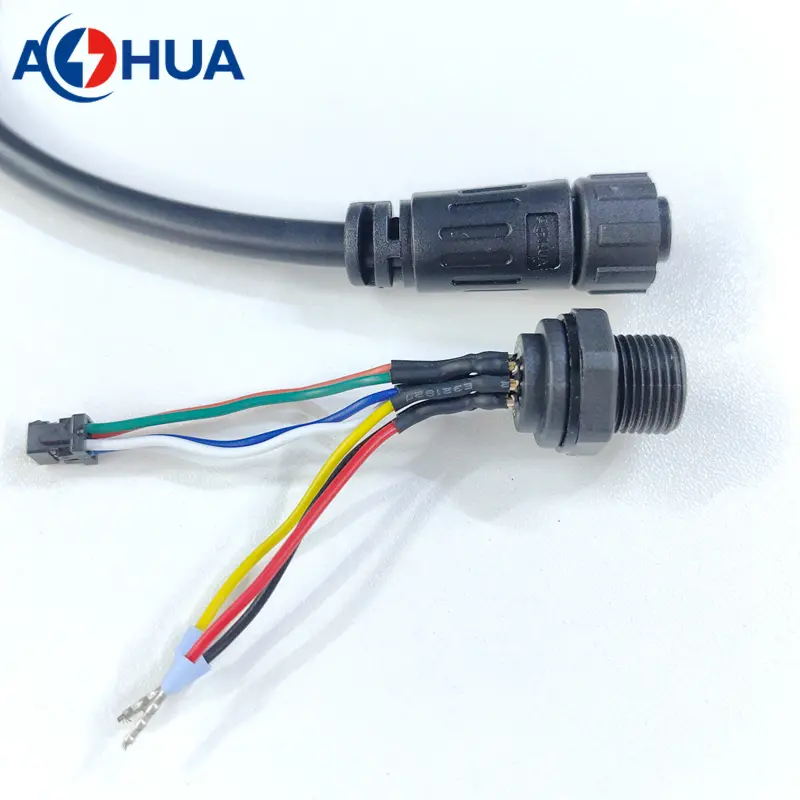

Product Process: This male connector is front panel mount type plug, which will be mounted on panel hole; According to the requirement of client, the panel socket have soldered with single electrical wire and crimp with terminal. The female connector is in-line type over molding connector with cable.

Whateven is panel type connector or inline connector, as long as it is low voltage cable wire connector, we specialize in this kind of cable processing and connector manufacturing. AOHUA is a manufacturer focusing on the development and production of outdoor wire waterproof connectors and cables. We can accept the processing and production of various cable waterproof connectors. Our products waterproof rating includes IP65, IP67, and IP68, these waterproofing grades are sufficient for all outdoor waterproofing applications. And we have dozens of injection molding machines, both vertical and horizontal type; have cable wire manufacturing work line, hardware making work line, terminal crimping work line, and so on. For most production of outdoor wire waterproof connectors specially led lighting cable wires and connectors, we have enough R & D design capability, production experience and production capacity to make perfect products for you.

 Please pass your requirements or drawing to our sales molly@aohuadz.com, our team will get back to you as soon as possible.
