PCB Control Box Panel Mounting Male Female Wiring Terminated Assembly Waterproof Bulkhead Connector 3pin For Power /Signal

1. This is panel mount type 3pin waterproof connector
2. Model: M12
3. Plastic: PA66
4. Conductor: gilded copper
5. Connector type: male-rear panel mount, female-inline socket.
6. Connection: soldering
7. Pin diameter: φ1.5mm
8. Rated Voltage: 300V
9. Rated Current: 5A
10. Wire Gauge: ≤1.0mm²
11. Cable OD: 3-7.5mm

Highlights

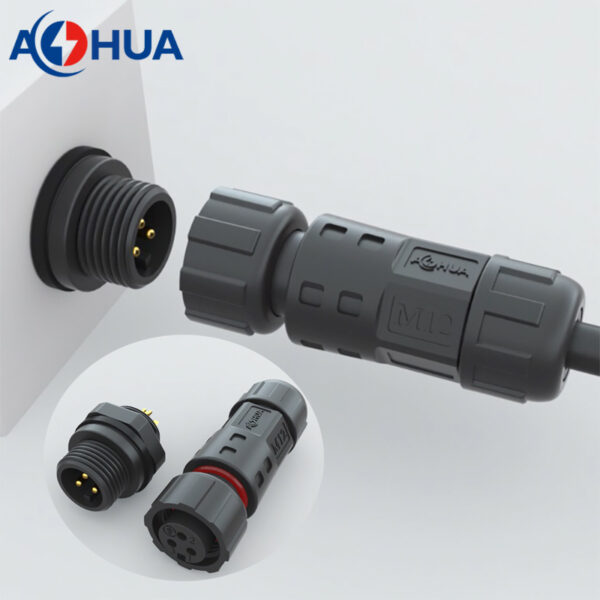

1. male: rear panel mount- the hex nut is inside of the box, should be required enough inner space for mounting. This design should be safer comparing to the outside mounting.
2. female: inline assembly, is available for choose different cable length when doing operation.
3. this is mini connector, should be suitable for small space tunnel.
4. there are dust caps for male and female connectors.
5. Certificate: have general version(CE&ROHS) and UL version(UL&CE&RoHS)

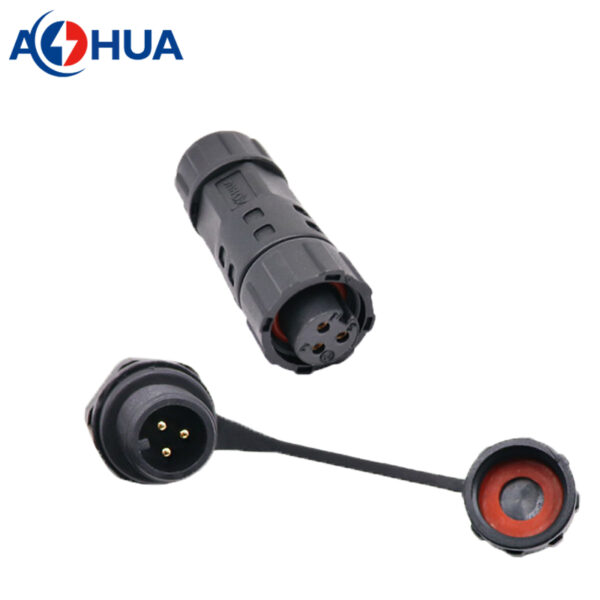

Assembly connector:

• Male: AH-M12-0503FMR01112
• Female: AH-M12-0503MFZ01112

Customization:

1. the male panel plug should be terminated with wiring.
2. the female connector should be customized with cable, which is molded with cable. AH-M12-0503MFN01112.

How to order?

1. confirm the connector you need, such as assembly type connector or molding type connector;
2. confirm the working ampere, such as 5A or 4A;
3. specify the wire gauge, cable OD or cable length you need;
4. specify the customized details.
5. it would be much appreciated if you can provide CAD or 3D drawing for request. Surely, simple drawing also should be great for understanding.
6. specify whether require the dust caps or not.
