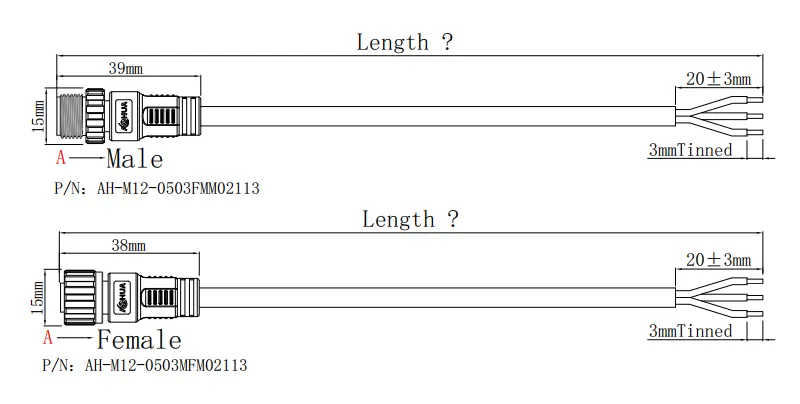

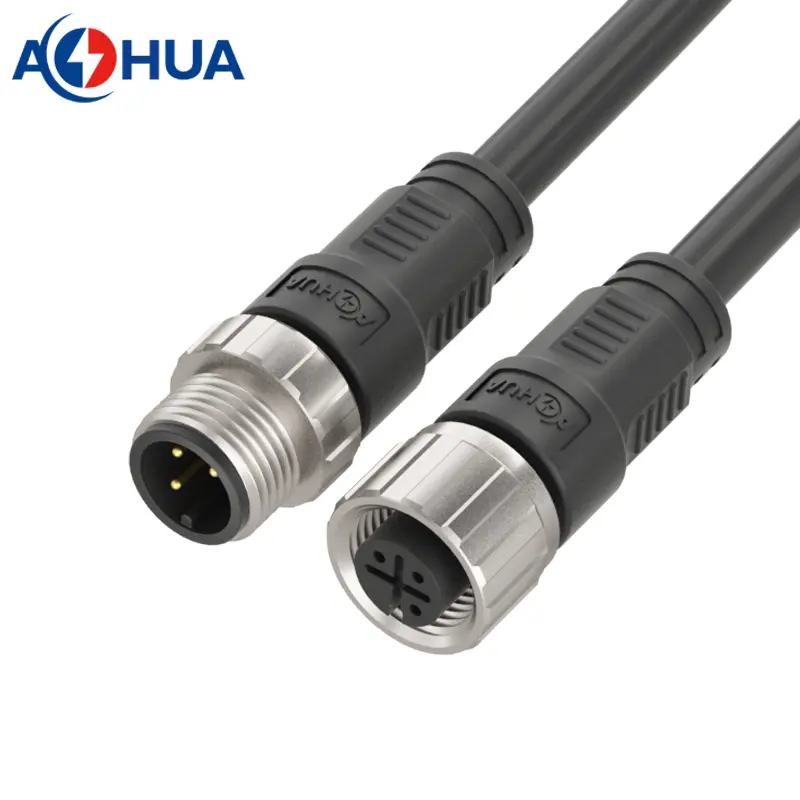

This is M12 metal threads male female connector with waterproof function. The connector is over molding with cable that is coming with cable only. The connector usually used to power wire connection in LED lighting solution or electrical equipment.

Material

1. Plastic: PVC
2. Metal: gilded brass
3. Cable: PVC/Rubber/PUR

Parameter

• Rated Voltage: 110V
• Rated Current: 5A
• Wire Gauge: 0.5mm²/0.75mm²/20AWG/18AWG
• Cable OD: 5-7mm

How to order this waterproof connector?

This is connector customized with different cable length on requirements, so please provide detail requirement before quotation.

1. contacts number, such as 3pin;

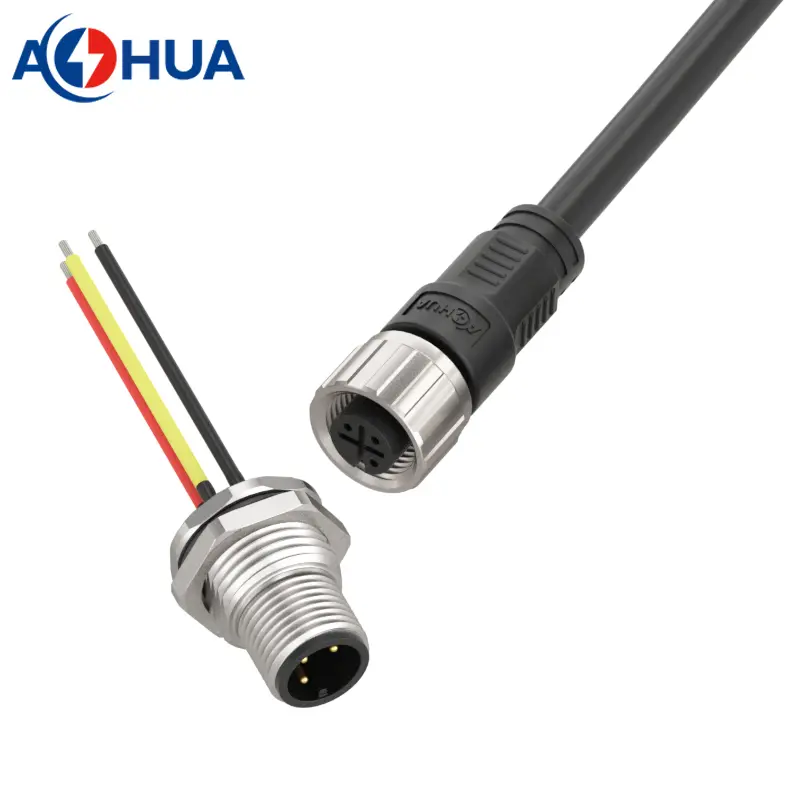

2. connector type, such as male female extension cable or connector with open wire end;
3. working ampere and voltage, such as 4A, 110V;
4. wire gauge and cable length, such as 400mm extension cable or 500mm each cable;
5. length of stripped and tinned, such as 20mm/3mm.

Other requirements such as do wiring with JST/SM terminals are also OK, please leave message to our sales, AOHUA team will get back to you with drawing and price.

This is customized wire solution, so your vision will be coming true in the helping of AOHUA manufacture.

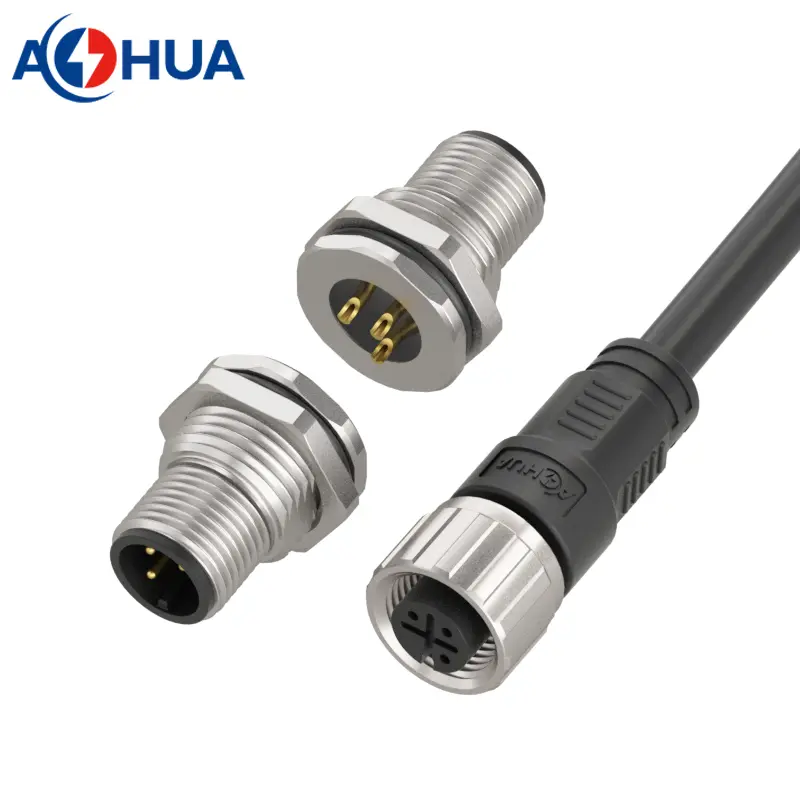

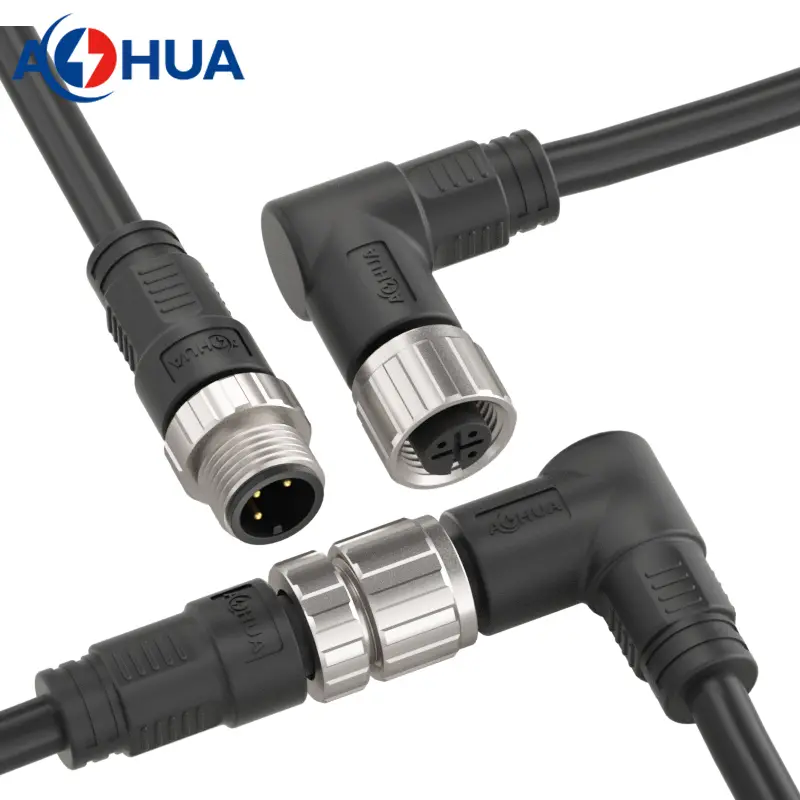

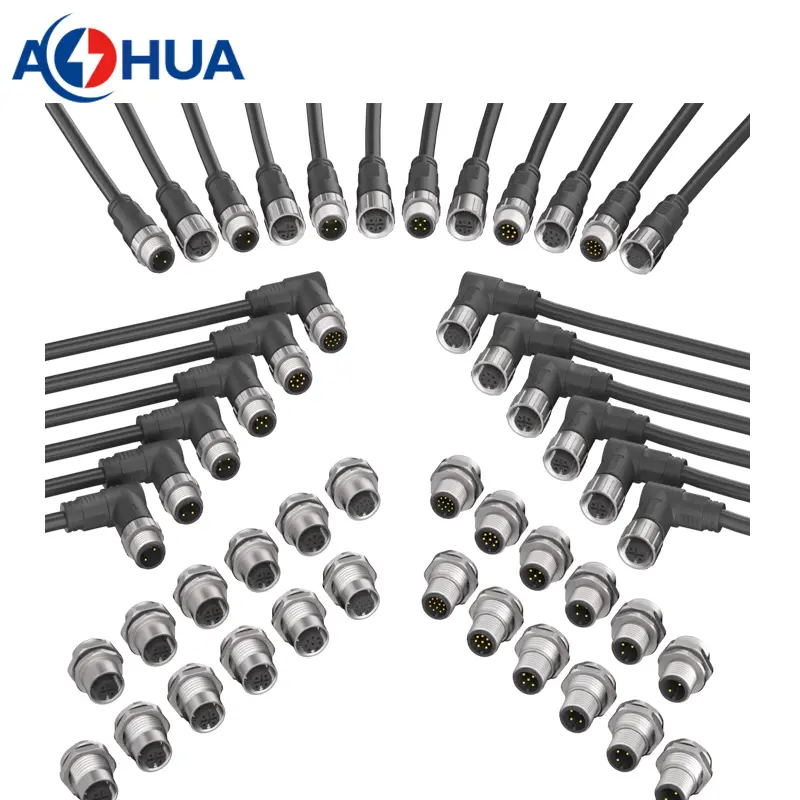

This M12 connector includes panel type connector, angle type connector. And we can do wire processing for connectors. So you only need to tell us with your requirement, we will make the best design and products for you to get what you want.

The male-female fast locking waterproof wire terminal connector is an innovative and efficient solution for secure and waterproof wire connections. This type of connector is specifically designed to provide a quick, reliable, and water-resistant connection between two wires. The male component of the connector features pins or prongs, while the female component has corresponding sockets or receptacles. When the male and female parts are brought together, they form a firm and stable connection.

The key feature of the fast locking design is its ability to ensure a quick and hassle-free connection. The connector is designed with a mechanism that allows for easy insertion and a secure locking mechanism that keeps the connection in place. This not only saves time during installation but also provides a reliable and stable connection that can withstand vibrations and external forces.

Moreover, the waterproof feature of this connector adds an extra layer of protection. It is designed to resist the ingress of water, moisture, dust, and other environmental contaminants. This feature makes it suitable for a wide range of applications, including outdoor lighting, marine equipment, automotive systems, and various industrial applications where the presence of water and moisture is a concern.

The male-female fast locking waterproof wire terminal connector offers numerous advantages. It provides a simple and efficient way to connect wires, reducing the need for complex and time-consuming wiring procedures. The waterproof feature ensures the durability and reliability of the connection, preventing any potential damage or malfunction caused by moisture. Overall, this connector offers a convenient and reliable solution for secure, waterproof wire connections in various industries and applications.
