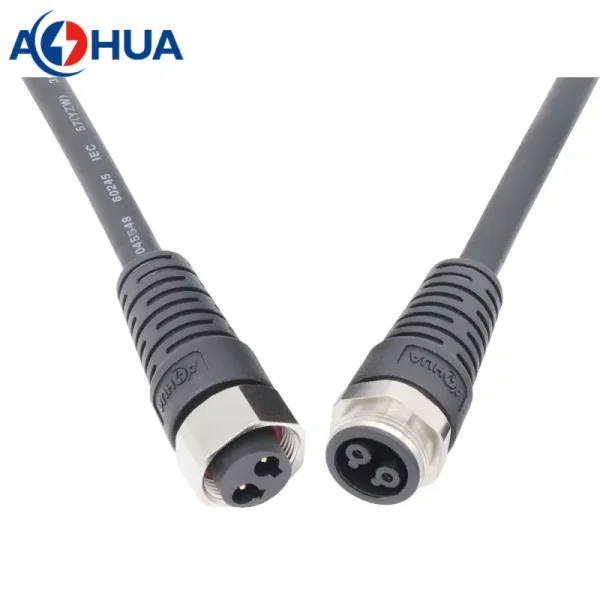

Power wire M19 2pin metal type male female waterproof connector
Power wire M19 2pin metal type male female waterproof connector

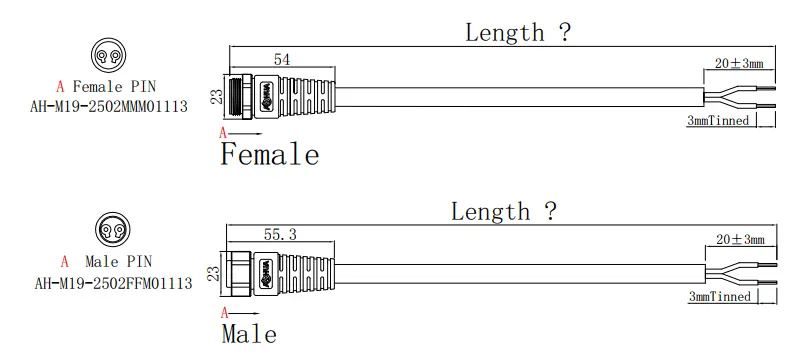

P/N: AH-M19-2502MMM01113/AH-M19-2502FFM01113
Material: metal
Cable: PVC
Color: black
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M19-2502MMM01113/AH-M19-2502FFM01113 | ≤4.0mm² | 300V | 25A |
| 3 | AH-M19-1603MMM01113/AH-M19-1603FFM01113 | ≤2.5mm² | 300V | 16A |
| 4 | AH-M19-1204MMM01113/AH-M19-1204FFM01113 | ≤1.5mm² | 250V | 12A |

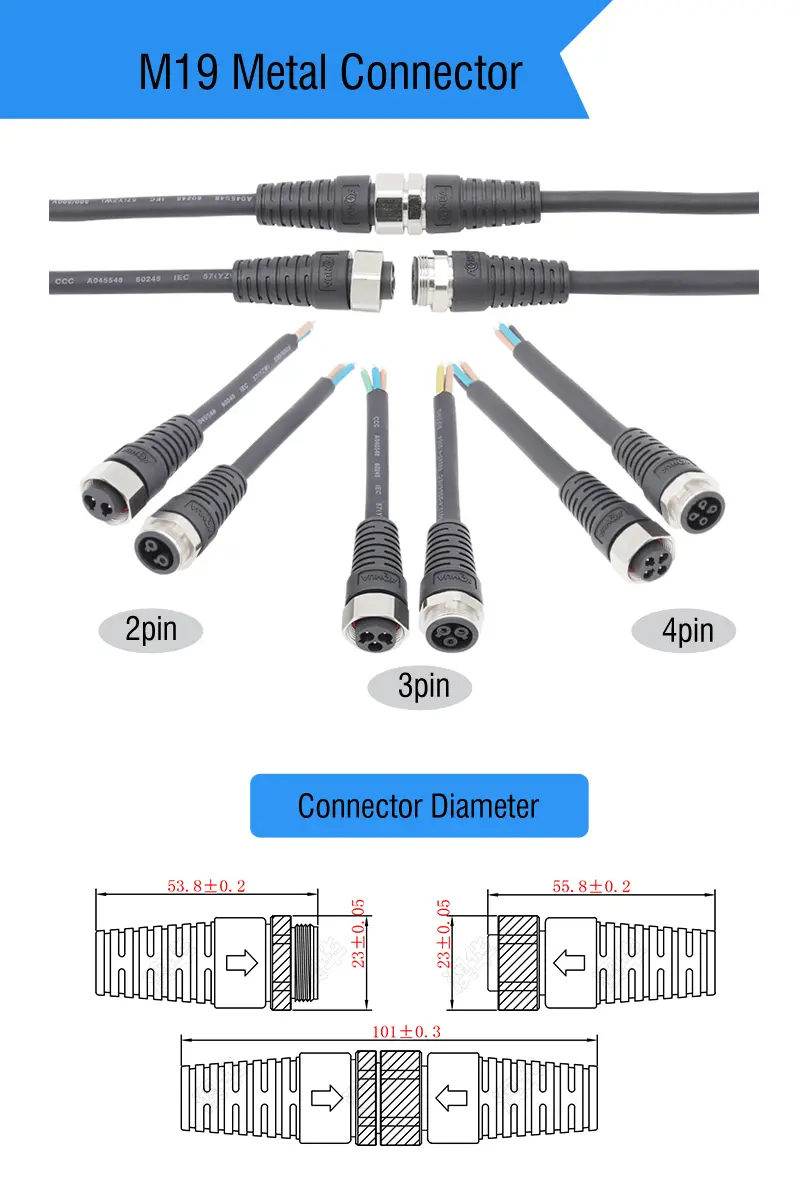

| Cable OD | 5.0mm-12mm |
| Mechanical Life | 1500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
