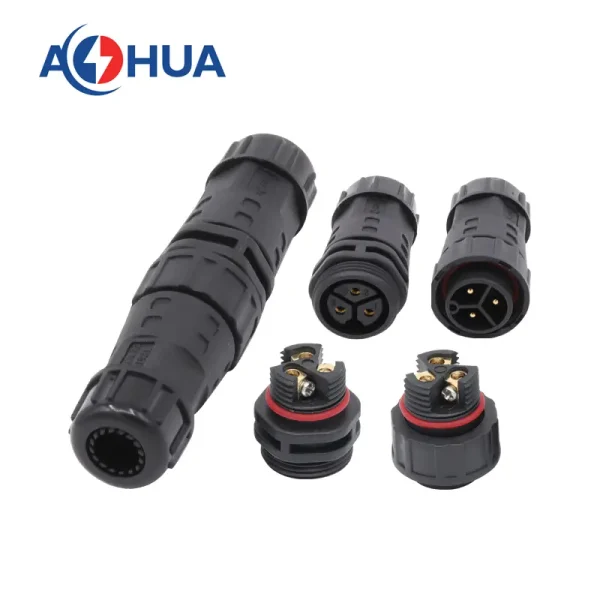

Power Wire Screw Lugs M20 IP67 3pin Male Female Outdoor Waterproof Connector
Power Wire Screw Lugs M20 IP67 3pin Male Female Outdoor Waterproof Connector

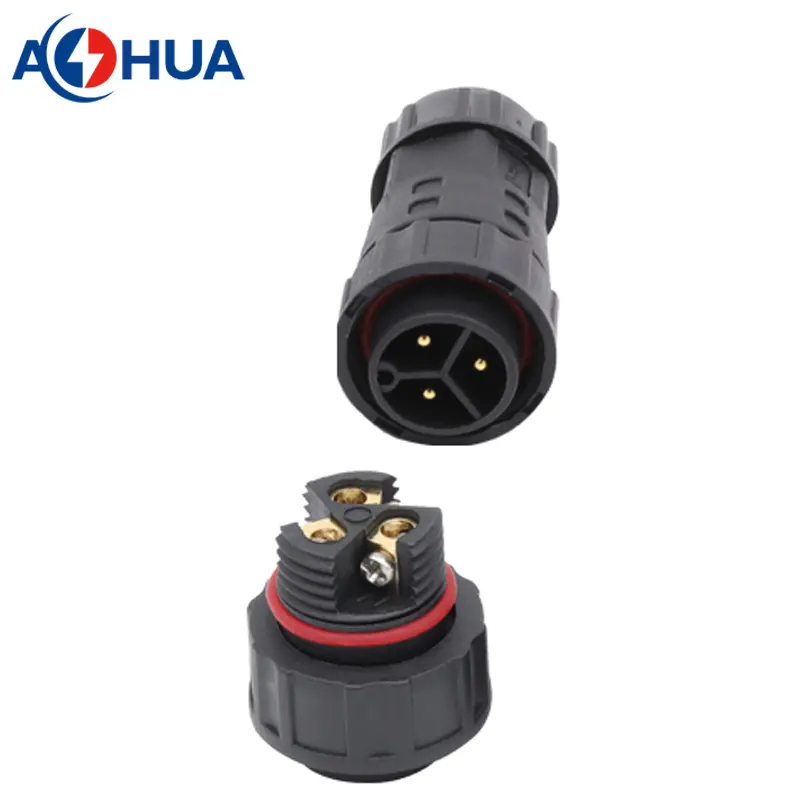

Male: AH-M20-1503MMZ02122

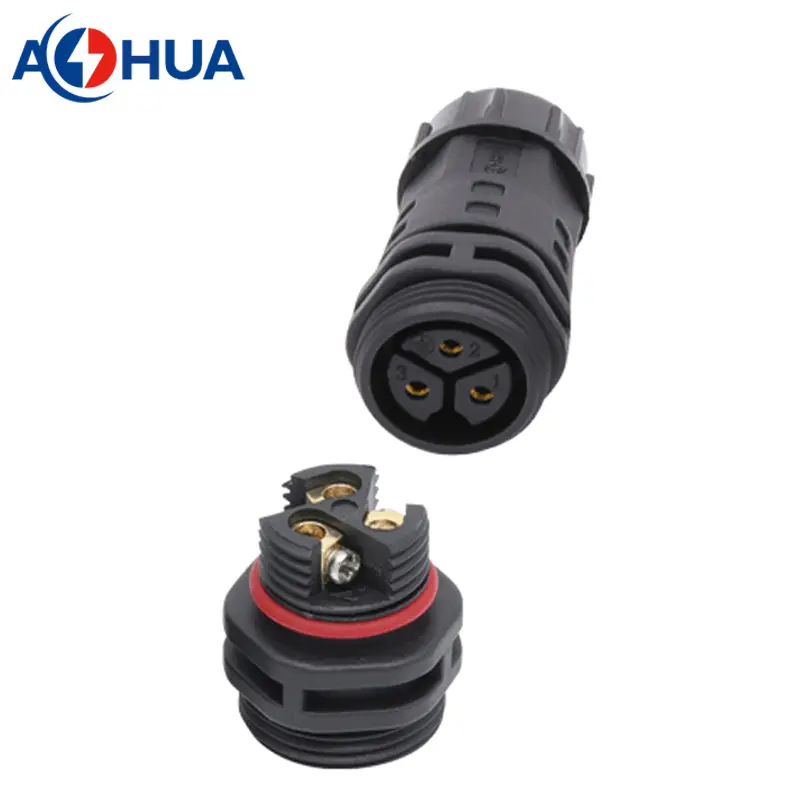

Female: AH-M20-1503FFZ02122
Contacts: 3pin
Rated Voltage: 300V
Rated Current: 15A
Wire Gauge: 0.5-1.5mm²
Cable OD: 5-10mm
Connection Type: Screw Lugs
Gender Type: male to female
Mechanical Life: 1000 mating cycles
Operating Rating: -40℃~+105℃
Waterproof Level: IP67/IP68
Certificate: CE/RoHS/ISO
Payment Terms: Paypal, T/T Wire Transfer
Shipping Port: Shenzhen China
Share to:
Power Wire Screw Lugs M20 IP67 3pin Male Female Outdoor Waterproof Connector
| An outdoor waterproof connector is a type of connector specifically designed to create a reliable and sealed electrical connection in outdoor environments. It is built to withstand exposure to water, moisture, dust, dirt, and other environmental elements that can potentially damage or degrade the electrical connection. Outdoor waterproof connectors are commonly used in various outdoor applications, such as outdoor lighting systems, surveillance cameras, wireless antennas, renewable energy systems, and other outdoor electronic devices. These connectors provide protection against water ingress, humidity, UV radiation, temperature variations, and mechanical stresses. |
- Parameter
- Plastic Material: Nylon PA66
- Metal Material: gold plated brass
- Cable Gland/O-ring Material: silicone rubber
- Components
- Waterproof nut
- Cable gland
- Enclosure
- Coupling nut
- O-ring
- male/female connector core
 |
 |
|
Male Waterproof Connector P/N: AH-M20-1503MMZ02122 |
Female Waterproof Connector P/N: AH-M20-1503MMZ02122 |
| Contacts | 3 positions |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | 0.5-1.5mm² |
| Cable OD | 5-10mm |
| Mechancial Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67/IP68 |
| Cable Gland | 6.5/7.5/8.5/9.5/10mm |
