Power Wiring Solution 2pin 15A Male Female Extension Cable Panel Mount Waterproof 2 Pin LED Connector
Power Wiring Solution 2pin 15A Male Female Extension Cable Panel Mount Waterproof 2 Pin LED Connector
- Customize cable solution as requirement
- Model: M20
- Contacts: 2pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5.0-10mm
- Plastic Material: PA66
- Conductor Material: gold plated brass
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Power Wiring Solution 2pin 15A Male Female Extension Cable Panel Mount Waterproof 2 Pin LED Connector
- This is M2o model connector with carrying up to 15A power for wiring operation.
- Material: PA66 94 V-o antiflaming. (ensure the connector high quality: high strength, high heat resistance, no blooming)
- Conductor: gold plated brass(crown spring);(ensure good electrical properties)
- We customize the cable solution according to the actual application.

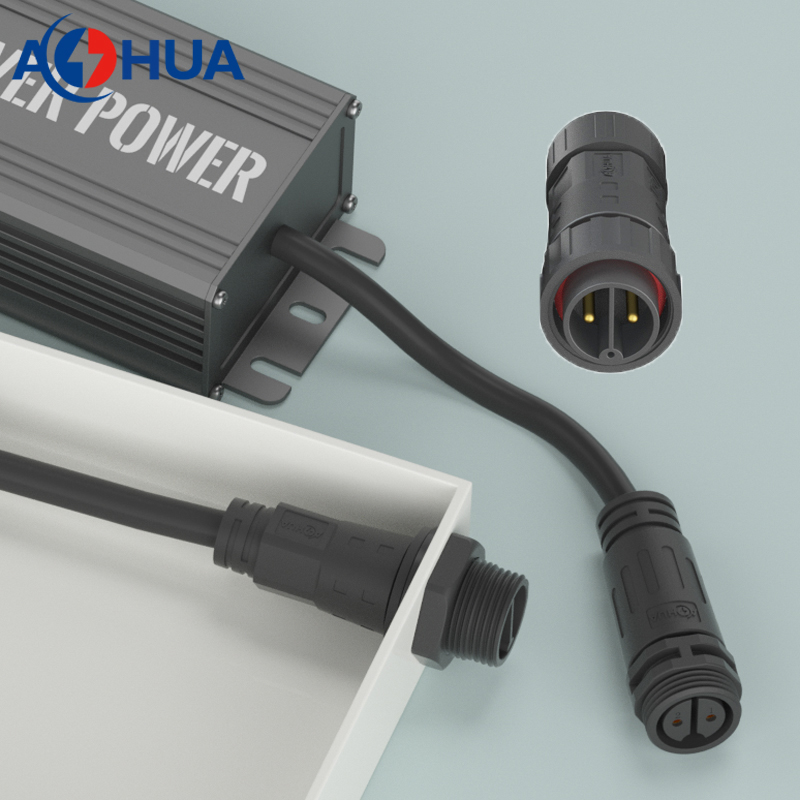

According to this picture, the connector can be over molding panel type female or molding inline female; and the male is assembly type.
- Female panel: AH-M20-1502FFB01113 (customize different wire size and cable length)
- Female inline: AH-M20-1502FFN01112 (customize different wire size and cable length)
- Male Assembly: AH-M20-1502MMZ01112(suitable for cable OD from 5.0mm to 10mm)
| Model | M20 |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 5.5-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Certificate | CE/ROHS |
