Model: M21 L Waterproof Connector

This is quick connect electrical connector with waterproof function. The connector includes O-ring and cable gland, which these parts ensure the cable connection safe and running well in wet or moist environment.

Why it called quick electrical connector is because this connector with push wire operating handle, which is no need soldering or screwing.

• Material:

Plastic: nylon PA66

Metal: phosphor copper

• Parameter

Rated Voltage: 250V

Rated Current: 25A

Wire Gauge: 1.0/1.5/2.0/2.5mm²

Cable OD: 6-13mm

How to choose a right quick electrical connector?

Before order, please confirm your device already have cable or you just need a connector without cable.

1. specify connector type, such as straight type connector(no gender);
2. specify contacts number, such as 2pin;
3. working ampere and voltage, such as 10A, 110V;
4. wire gauge and cable jacket OD, such as 1.5mm², OD8mm.

This quick electrical connector is assembled with some components, before operation, you need to study to take components to check it:

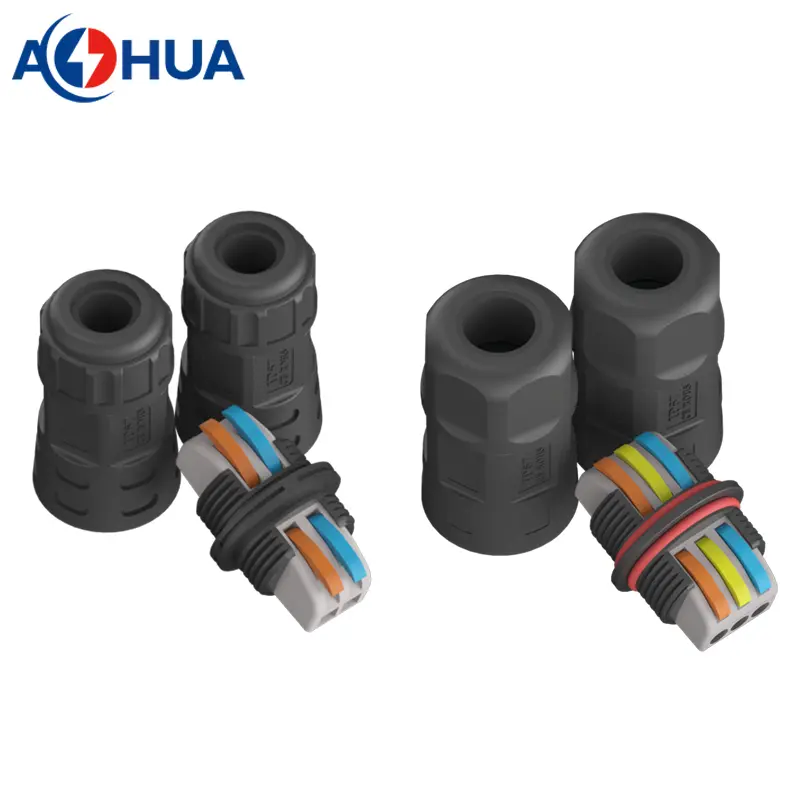

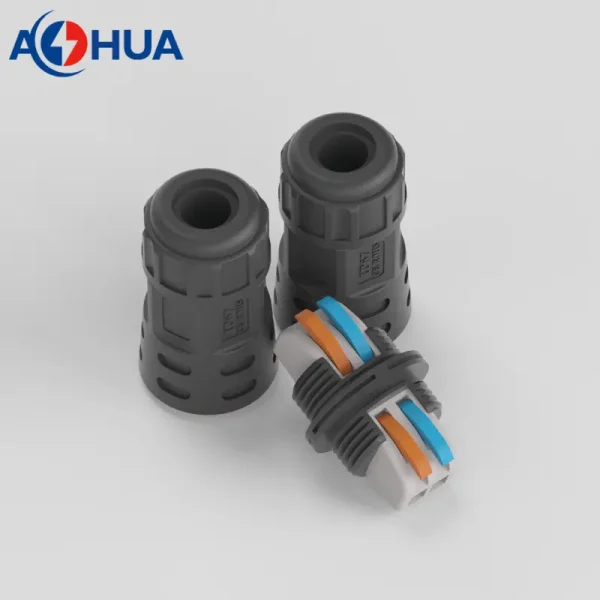

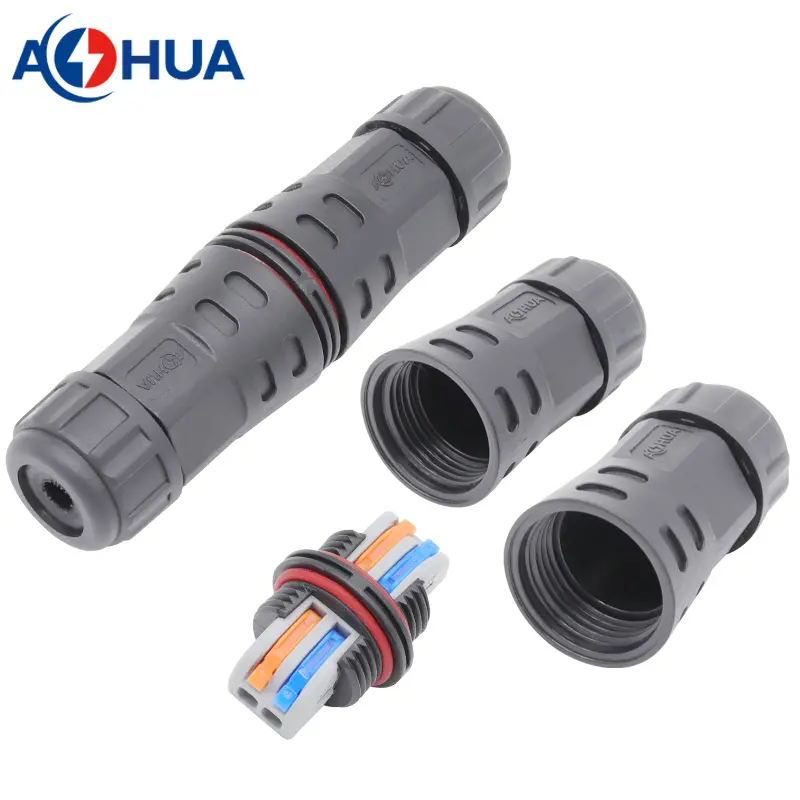

waterproof nut, cable gland, enclosure, connector core, O-ring.

How to do wiring operation?

Before installation, confirm your cable  power off, then start following:

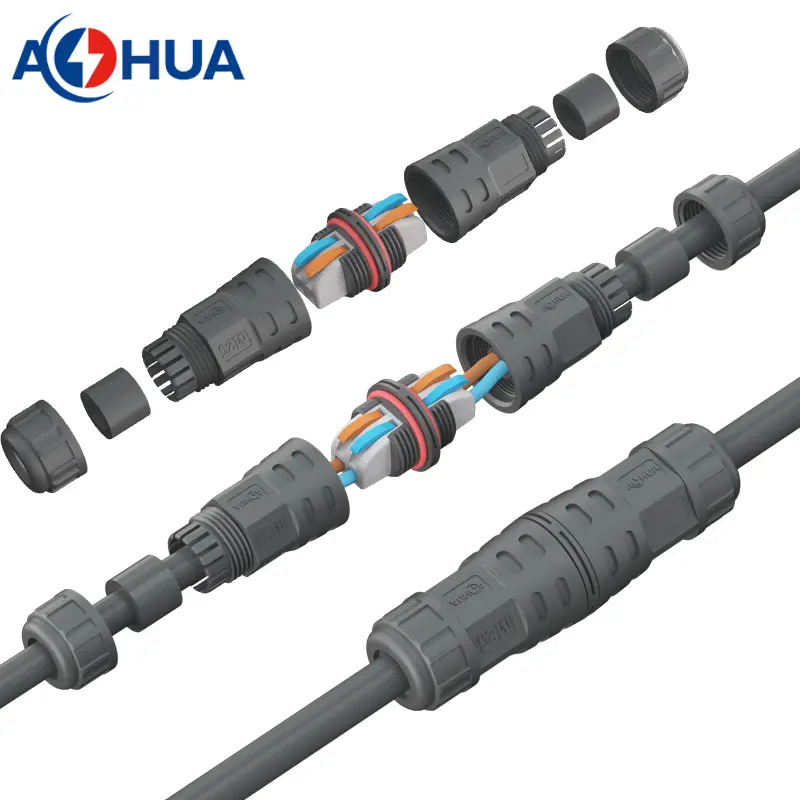

• take off the components waterproof nut, cable gland, enclosure;
• do stripping wire about 10mm;
• pull the operating handle to open the inlet hole ;
• insert the bare wire in to the hole;
• return the operating handle to its original position.
• assembly all components tightly.

Power cable joint assembly IP67 waterproof quick electrical connectors are specialized connectors designed to provide reliable and efficient waterproofing capabilities for electrical connections. These connectors are commonly used in applications where quick and secure electrical connections are required in wet or moisture-prone environments. With their ability to withstand water ingress and maintain a high level of protection, they offer a practical and efficient solution for various industries, including automotive, outdoor lighting, marine, and industrial applications.

One of the key advantages of power cable joint assembly IP67 waterproof quick electrical connectors is the ease of installation. They are designed for fast and tool-free assembly, allowing for quick and effortless connections. This feature is particularly beneficial in situations where time is critical, such as during outdoor installations or maintenance operations. The connectors ensure a seamless and reliable electrical connection, reducing downtime and increasing overall productivity.

Waterproof Functionality:

The IP67 rating of these connectors indicates their high level of waterproof protection. The “IP” stands for “Ingress Protection,” and the number “67” signifies their resistance to the ingress of dust and water. The first digit, 6, indicates complete protection against dust particles, ensuring that no harmful elements can enter the connector. The second digit, 7, signifies that the connector can withstand the effects of immersion in water up to a depth of 1 meter for a specified time. This level of protection ensures that the connectors can withstand challenging environmental conditions, including heavy rain, splashes, or submersion in water, without compromising the electrical connections.

Design Features:

Power cable joint assembly IP67 waterproof quick electrical connectors often feature sealing gaskets, waterproof seals, or specialized designs to create a tight barrier against moisture. These components prevent water from entering the connector and damaging the electrical connections inside. The connectors are typically made of durable materials, such as robust plastics or corrosion-resistant metals, to ensure long-term reliability.

Conclusion:

Power cable joint assembly IP67 waterproof quick electrical connectors provide a reliable and efficient solution for electrical connections in wet or moisture-prone environments. Their quick and tool-free installation, along with their waterproof functionality, make them ideal for various applications. When selecting these connectors, it is crucial to consider factors such as the IP rating, compatibility with the power cables, and specific environmental requirements to ensure optimal performance and durability. With their ability to withstand water ingress and maintain secure electrical connections, these connectors contribute to safe and reliable operation in demanding conditions.
