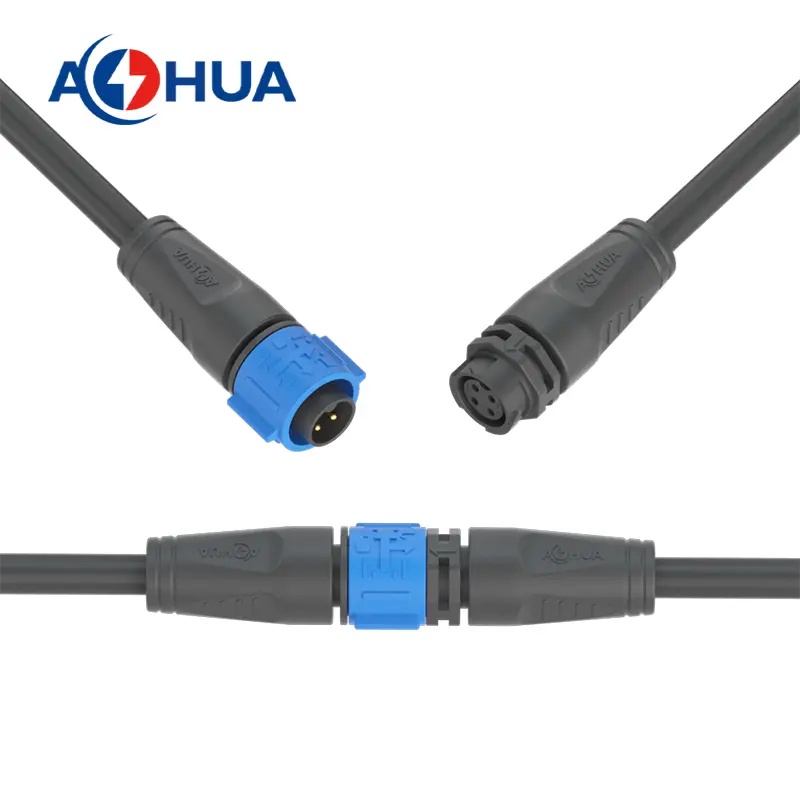

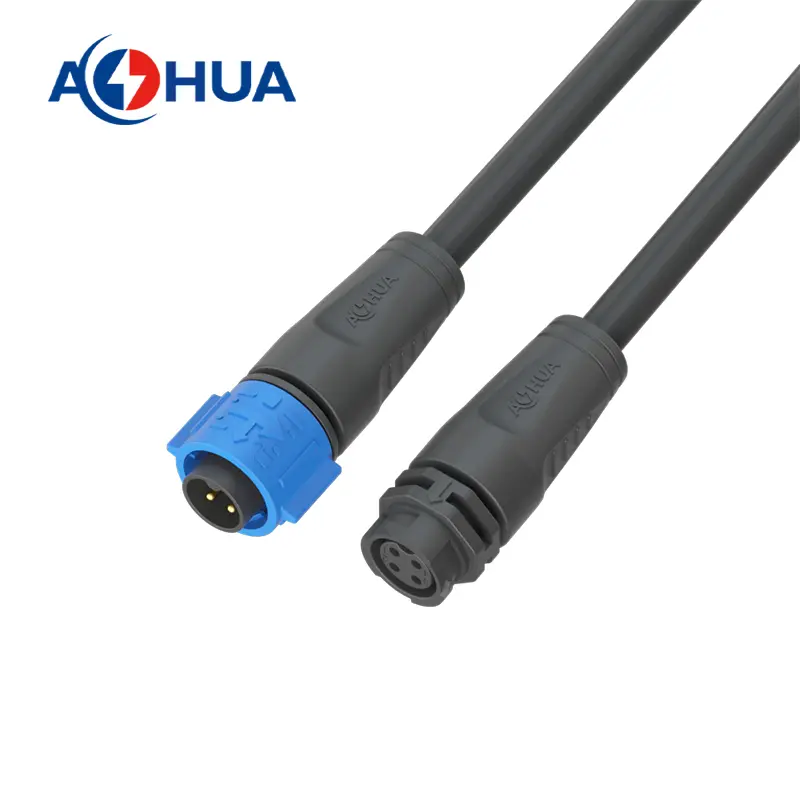

Waterproof connectors with cable are available in various configurations, including different pin/socket counts, wire gauges, and cable lengths. This versatility allows them to be used in a wide range of applications, such as industrial automation, outdoor lighting, marine environments, and transportation systems.

Parameter

1. Plastic material: Nylon PA66
2. Metal material: gold plated brass
3. Cable material: PVC/PUR/Rubber

• Rated voltage: 250V
• Rated current: 5A
• Wire Gauge: 0.3-0.75mm²
• Cable OD: 4-10mm

How to order this waterproof connector with cable?

Waterproof connectors with cable offer a convenient and reliable solution for establishing waterproof electrical connections.

This is customized connector on your requirements, please specify requiremens includes:

1. contacts numbers, such as 4pin;
2. connector type, such as male and female with open wire end;
3. working ampere and voltage, such as 5A, 110V;
4. wire gauge and cable length, such as 18AWG, length 400mm each side.
