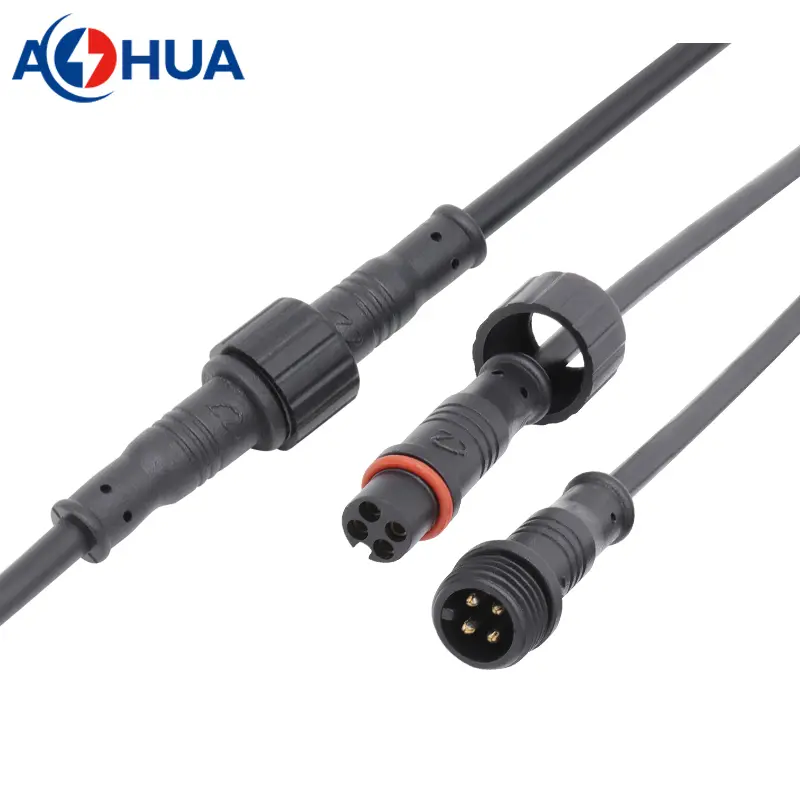

RGB led lighting ip65 M12 4 pin wire waterproof male female connector
RGB led lighting ip65 M12 4 pin wire waterproof male female connector

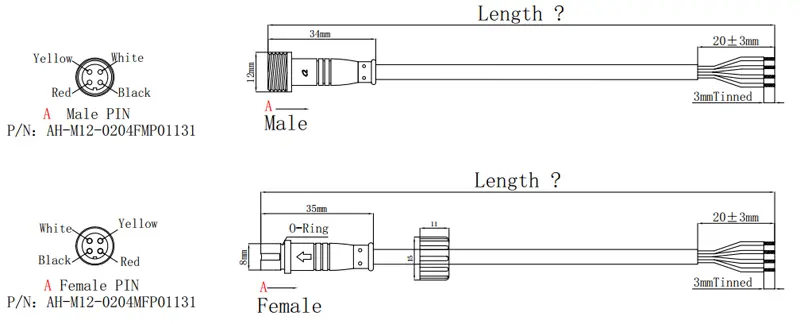

P/N: AH-M12-0204FMP01131/AH-M12-0204MFP01131
Material: PVC
Color: black /white
Cable: PVC
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

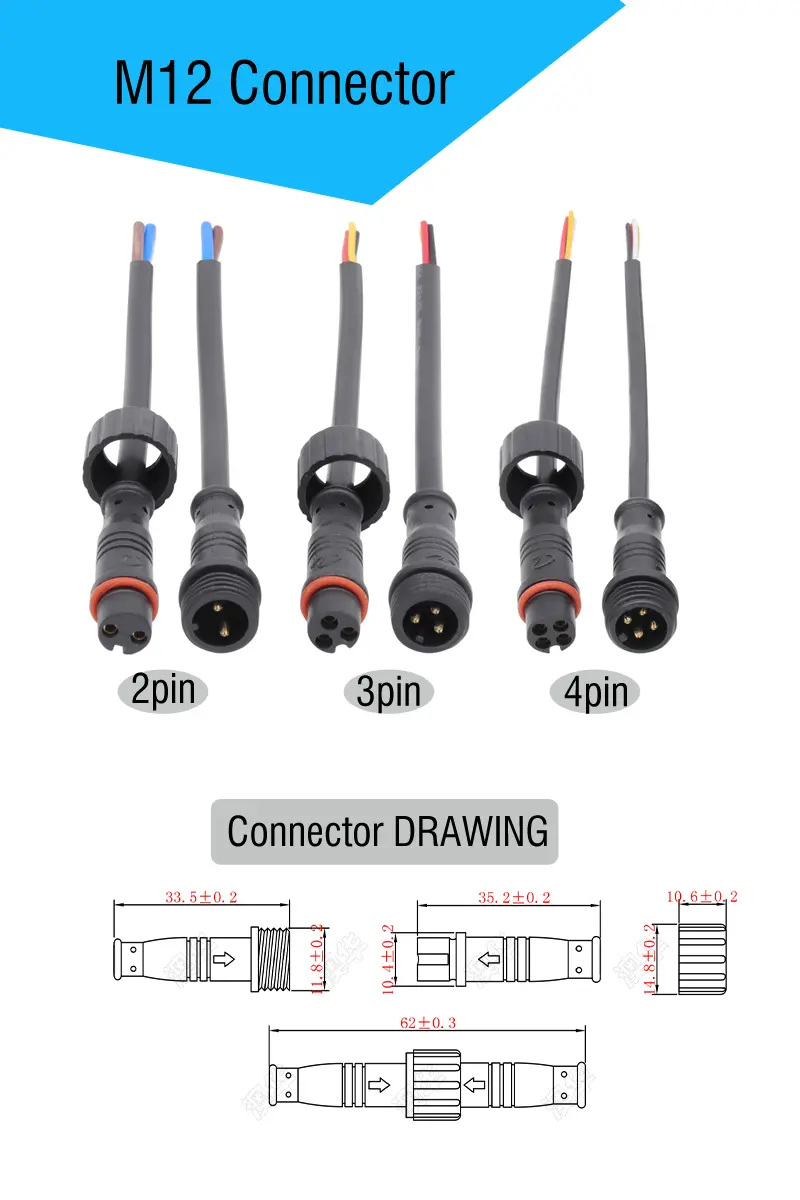

| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M12-0402FMP01131/AH-M12-0402MFP01131 | ≤0.5mm² | 110V | 4A |
| 3 | AH-M12-0203FMP01131/AH-M12-0203MFP01131 | ≤0.3mm² | 110V | 2A |
| 4 | AH-M12-0204FMP01131/AH-M12-0204MFP01131 | ≤0.3mm² | 60V | 2A |
| Cable OD | 3.0mm-5.0mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
| Note | male with dust cap for choice |
