Signal Power Control Wiring 3pin 15A AOHUA Male Female Panel Mount IP67 Waterproof Cable Joint Connector
Signal Power Control Wiring 3pin 15A AOHUA Male Female Panel Mount IP67 Waterproof Cable Joint Connector
- Model: M20
- Contacts: 3pin
- Connector Type: panel mount
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Condcutor: gold plated brass
- Cable Material: PVC or Rubber
- Certificate: CE/ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Signal Power Control Wiring 3pin 15A AOHUA Male Female Panel Mount IP67 Waterproof Cable Joint Connector

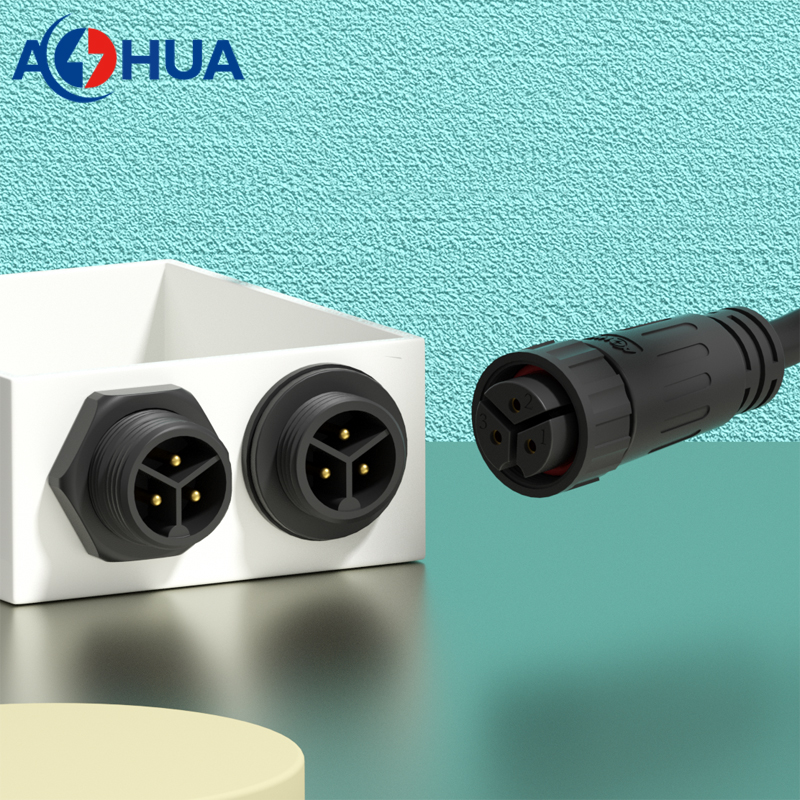

This is panel type waterproof connector used to control box system. The male is panel type plug for box wiring mounting, it can be front panel mount or rear panel mount. The female is inline over molding type connector, which will be designed and customized in different wire size and length.
The male connector should be solder lugs or screw lugs for choosing from.
- Male(front panel mount): AH-M20-1503FMF02122(screw type); AH-M20-1503FMF01112(solder type);
- Male(rear panel mount): AH-M20-1503FMR02122(screw type); AH-M20-1503FMR01112(solder type);
- Female inline molding: AH-M20-1503MFN01112
| Model | M20 |
| Contacts | 3pin |
| Pin | φ2.0mm |
| Plastic Material | PA66 |
| Conductor Material | gold plated brass |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 5.0-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperatures | -40℃~+105℃ |
| Waterproof Grade | IP67/IP68 |
| Customized Cable Material | PVC or Rubber |
| Certificate | CE / ROHS |
