Solve Signal Equipment Waterproof Problem Small Nylon Housing Male Female Panel Type Mini Waterproof Connector
Solve Signal Equipment Waterproof Problem Small Nylon Housing Male Female Panel Type Mini Waterproof Connector
- contacts: 6pin
- current rated: 1A
- voltage rated: 60V
- panel hole size for cutting: 7.7*8.1mm
- panel thickness: <1.7mm
- wire gauge: ≤24AWG
- cable OD: 3.0-5.5mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Solve Signal Equipment Waterproof Problem Small Nylon Housing Male Female Panel Type Mini Waterproof Connector

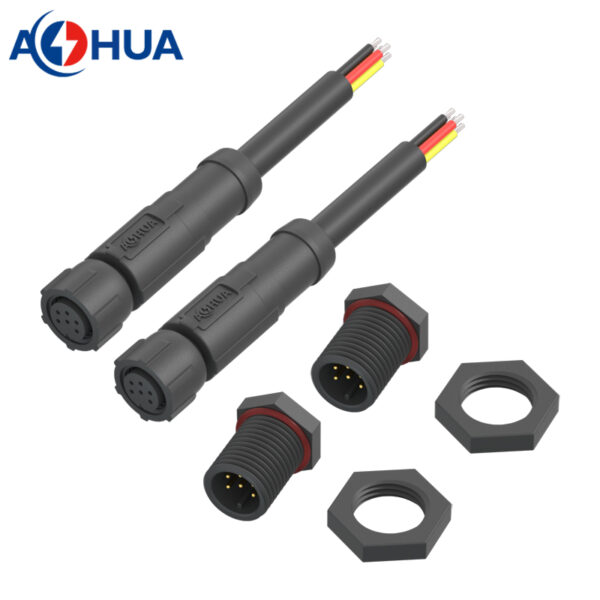

This is mini waterproof connector that is molded with cable. The male side is panel mount type and female is inline over molded with cable.
- Part Number
- Male panel: AH-M08-0106FMF01112
- Female: AH-08-0106MFN01112
- Material
- housing: nylon PA66
- conductor: gold plated copper
- cable: UL2464 PVC in general

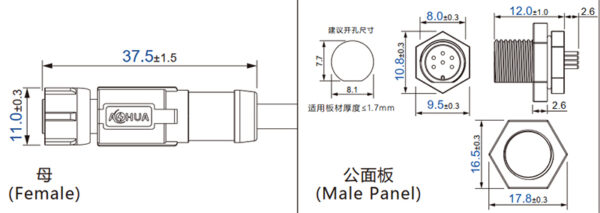

- Drawing
- Specification
- contacts: 6pin
- current rated: 1A
- voltage rated: 60V
- panel hole size for cutting: 7.7*8.1mm
- panel thickness: <1.7mm
- wire gauge: ≤24AWG
- cable OD: 3.0-5.5mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- How to order?
- confirm the connector type, such as panel type or male panel or female panel?
- specify the working ampere, wire gauge, cable length and detail information.
- send detail request to sales team for getting the final CAD drawing for checking.
- tell the mass quantity for calculating best price
- start sample making and testing
- go on for large quantity.
