Solve Space Problem Mini Type M8 Male Female Waterproof Nylon Material Signal Cable Harness Connector 6pin
Solve Space Problem Mini Type M8 Male Female Waterproof Nylon Material Signal Cable Harness Connector 6pin
- contacts: 6pin
- current rated: 1A
- voltage rated: 60V
- panel hole size for cutting: 7.7*8.1mm
- panel thickness: <1.7mm
- wire gauge: ≤24AWG
- cable OD: 3.0-5.5mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Solve Space Problem Mini Type M8 Male Female Waterproof Nylon Material Signal Cable Harness Connector 6pin

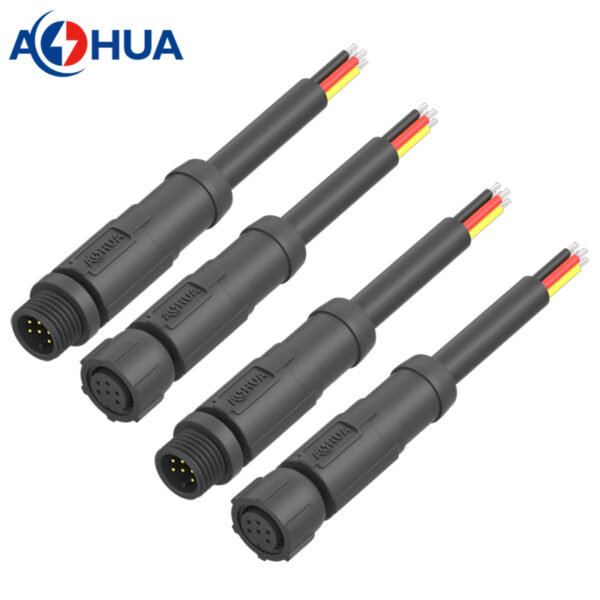

This is mini 6pin waterproof connector that is molded with cable. The male and female are inline type, over molded with cable.
- Part Number
- Male panel: AH-M08-0106FMN01112
- Female: AH-08-0106MFN01112
- Material
- housing: nylon PA66
- conductor: gold plated copper
- cable: UL2464 PVC in general

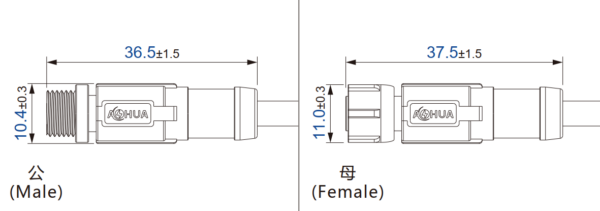

- Drawing
- Specification
- contacts: 6pin
- current rated: 1A
- voltage rated: 60V
- panel hole size for cutting: 7.7*8.1mm
- panel thickness: <1.7mm
- wire gauge: ≤24AWG
- cable OD: 3.0-5.5mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- How to order?
- confirm the connector type, such as panel type or male panel or female panel?
- specify the working ampere, wire gauge, cable length and detail information.
- send detail request to sales team for getting the final CAD drawing for checking.
- tell the mass quantity for calculating best price
- start sample making and testing
- go on for large quantity.
