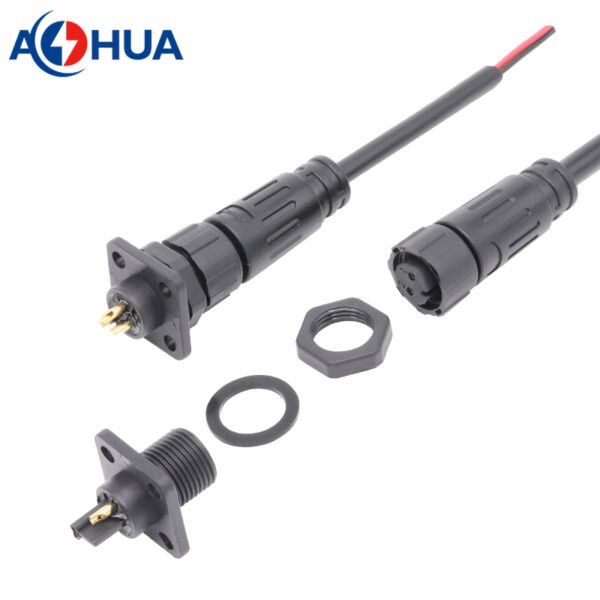

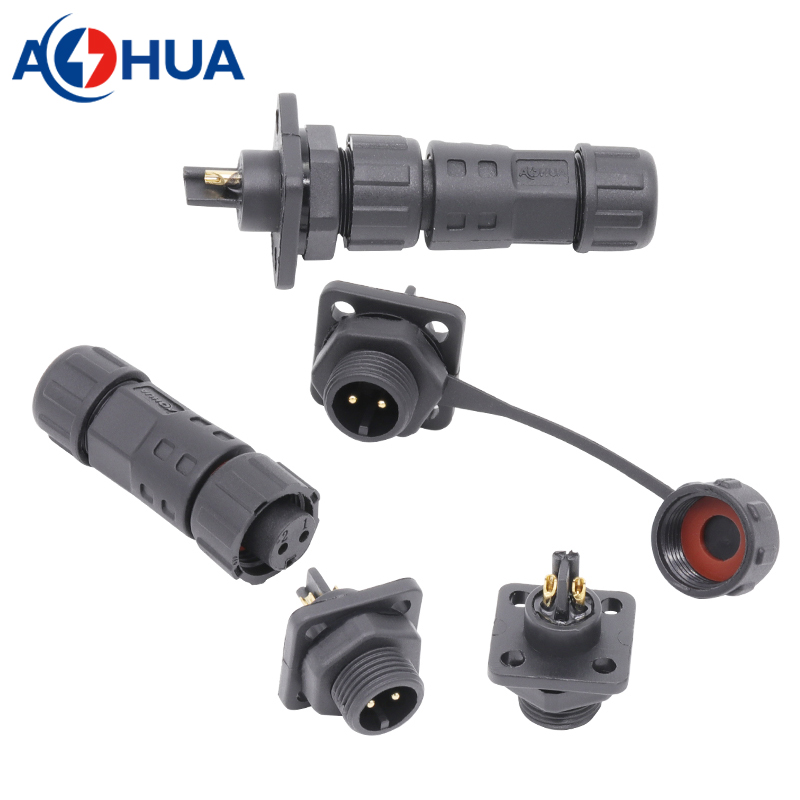

Square Panel M12 2pin Electrical Wire Male Panel To Female IP67 Waterproof Wiring Connector For PCB Junction Box
Square Panel M12 2pin Electrical Wire Male Panel To Female IP67 Waterproof Wiring Connector For PCB Junction Box
- Model: M12
- Contacts: 2pin
- Plastic Material: PA66
- Conductor Type: gold plated brass
- Cable OD: 2.5-7.5mm
- Rated Voltage: 300V
- Rated Current: 5A
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Square Panel M12 2pin Electrical Wire Male Panel To Female IP67 Waterproof Wiring Connector For PCB Junction Box

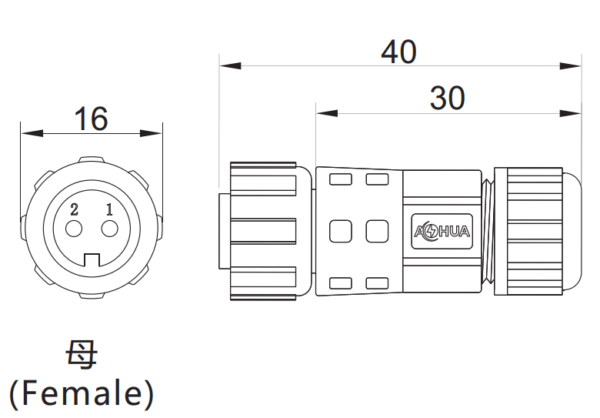

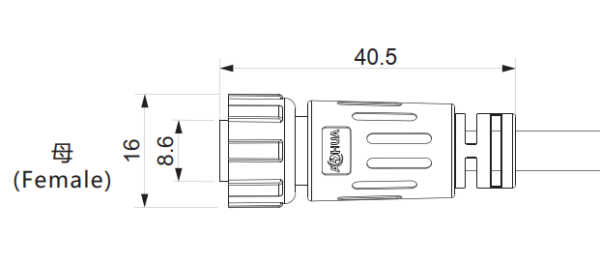

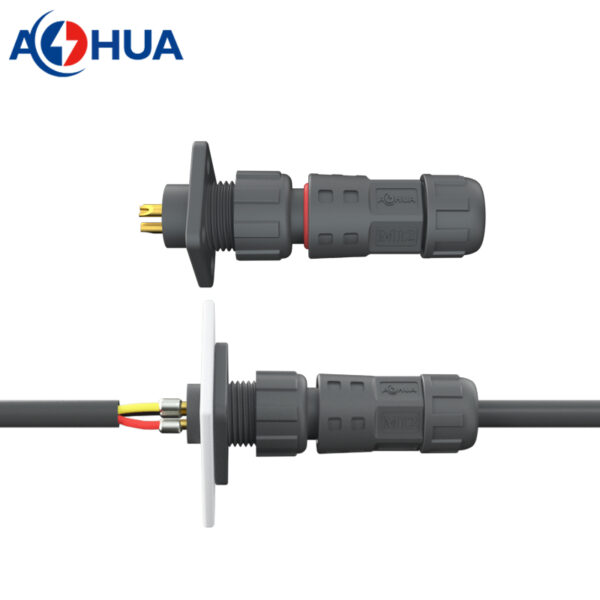

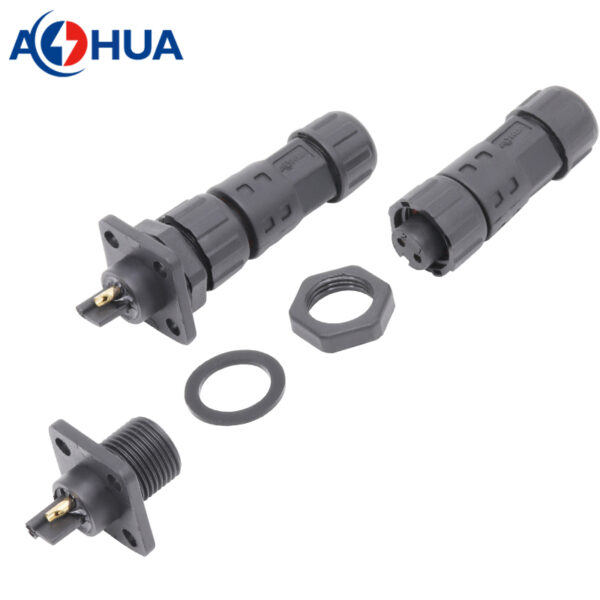

Customized square panel mount waterproof connector for PCB junction box, this is Model M12 panel mount wire assembly waterproof connector 2pin. The male side is front panel mount, female side is assembly or molding connector. The assembly connector is solder type, the molding connector is molded with cable that is customized cable length as request.
- Model: M12
- Plastic Material: PA66
- Conductor Material: gold plated brass

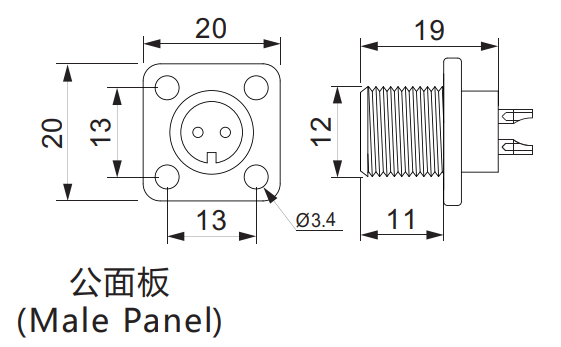

- Connector Type: male panel to female inline assembly
- Contacts: 2pin, 3pin, 4pin, 5pin
 |
 |
 |
| Contacts | Male panel | Female assembly | Female molding |
| 2pin | AH-M12-0502FMU01112 | AH-M12-0502MFZ01112 | AH-M12-0502MFN01112 |
| 3pin | AH-M12-0503FMU01112 | AH-M12-0503MFZ01112 | AH-M12-0503MFN01112 |
| 4pin | AH-M12-0504FMU01112 | AH-M12-0504MFZ01112 | AH-M12-0504MFN01112 |
| 5pin | AH-M12-0505FMU01112 | AH-M12-0505MFZ01112 | AH-M12-0505MFN01112 |
 |
 |
 |
 |
