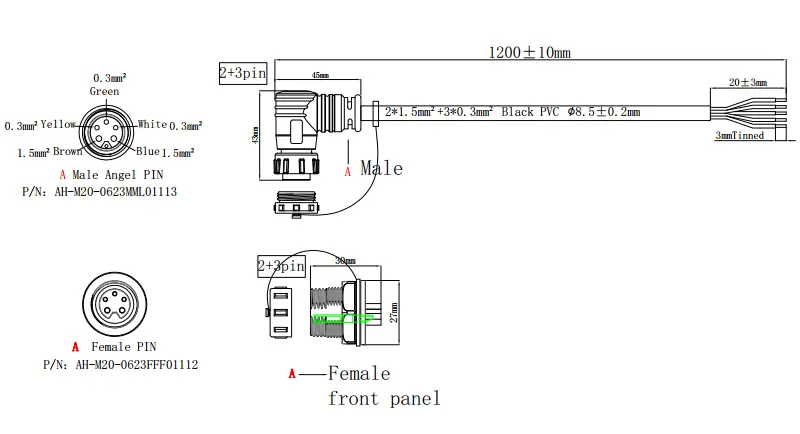

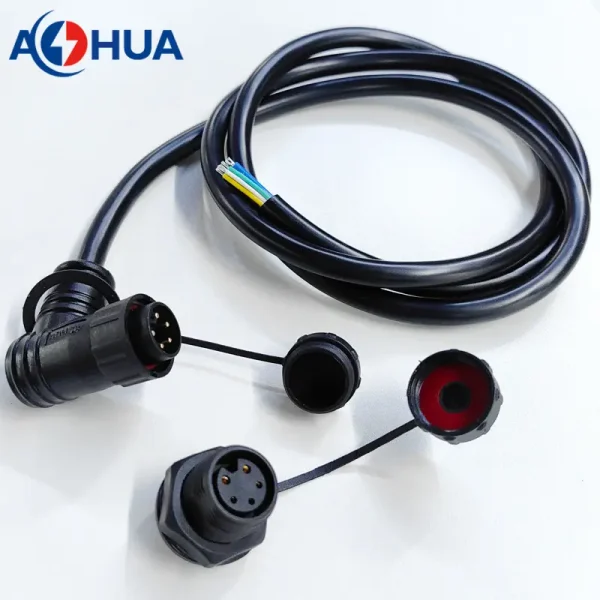

This is customized angle connector mating with panel mount socket, which is the made by specified wire gauge and cable length from clients. The male is angle 90degree connector, and the female is front panel mount type connector.

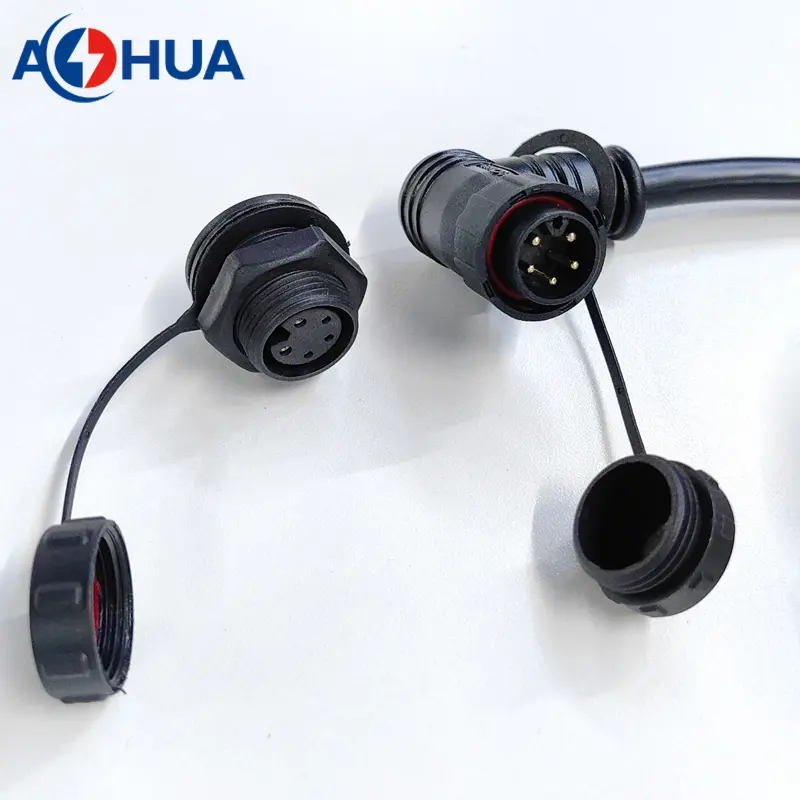

These connector have dust caps for protecting when unused. The dust caps also are waterproof type.

1. Plastic Material: nylon PA66
2. Metal Material: gold plated brass
3. Contacts Number: 2+3positions
4. Rated Voltage: 250V
5. Rated Current: 15A+4A
6. Wire Gauge: ≤1.5mm²+0.5mm²
7. Operating Temperature: -40℃~+105℃
8. Mechanical Life: 3000 mating cycles
9. Waterproof Grade: IP67/IP68

How to order waterproof connector?

The cable can be customized as requirement, so please specify your vision or requirements before quotation. Includes:

• Contacts number, such as 2+3pin;
• Connector type, such as angle+panel connector or extension cable connector;
• Working ampere and voltage, such as 10A+2A, 110V;
• Wire gauge and cable length, such as power line 1.5mm², data line 0.3mm², cable length 300mm;
• Require dust cap or not.

The street light control box power system 2+3Pin wire male-female angle IP67 waterproof panel connector is a cutting-edge solution designed to enhance the efficiency and safety of outdoor lighting installations. This connector is specifically engineered to provide reliable and secure power transmission and control for street light systems.

With its 2+3Pin configuration, this connector allows for the transmission of both power and control signals. It enables seamless connectivity between the street light control box and the lighting fixtures, facilitating efficient operation and precise control of the lighting system.

The male-female angle design of the connector offers a convenient and secure connection point, ensuring stability and minimizing the risk of accidental disconnection. It is specially designed for panel mounting, providing a robust and reliable interface for outdoor lighting applications.

Featuring an IP67 waterproof rating, this connector provides superior protection against water, dust, and other environmental factors. It can withstand challenging weather conditions, ensuring reliable power transmission and control even in harsh outdoor environments.

The street light control box power system 2+3Pin wire male-female angle IP67 waterproof panel connector is built with high-quality materials that guarantee excellent mechanical and electrical performance. It is designed to withstand vibration and mechanical stress, ensuring long-lasting reliability and durability.

By utilizing this connector, outdoor lighting systems can achieve greater operational efficiency and safety. Its seamless power and control transmission capabilities optimize the performance of street light installations, allowing for precise control, energy efficiency, and reduced maintenance costs.

In summary, the street light control box power system 2+3Pin wire male-female angle IP67 waterproof panel connector is a highly efficient and reliable solution for outdoor lighting applications. Its versatile configuration, robust design, and IP67 waterproof rating ensure seamless power and control transmission, enhancing the effectiveness and safety of street lighting installations. With this connector, cities and communities can illuminate their streets with confidence, knowing that they have a dependable and high-performance solution for their outdoor lighting needs.
